Toyota Land cruiser FJ45 POWER TAKE-OFF LEVER & LINK

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ45L-KC (1976)
3605 - POWER TAKE-OFF LEVER & LINK

FJ45L-KC (1976)

Toyota Land Cruiser

Production Jun 1976 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8210)4F

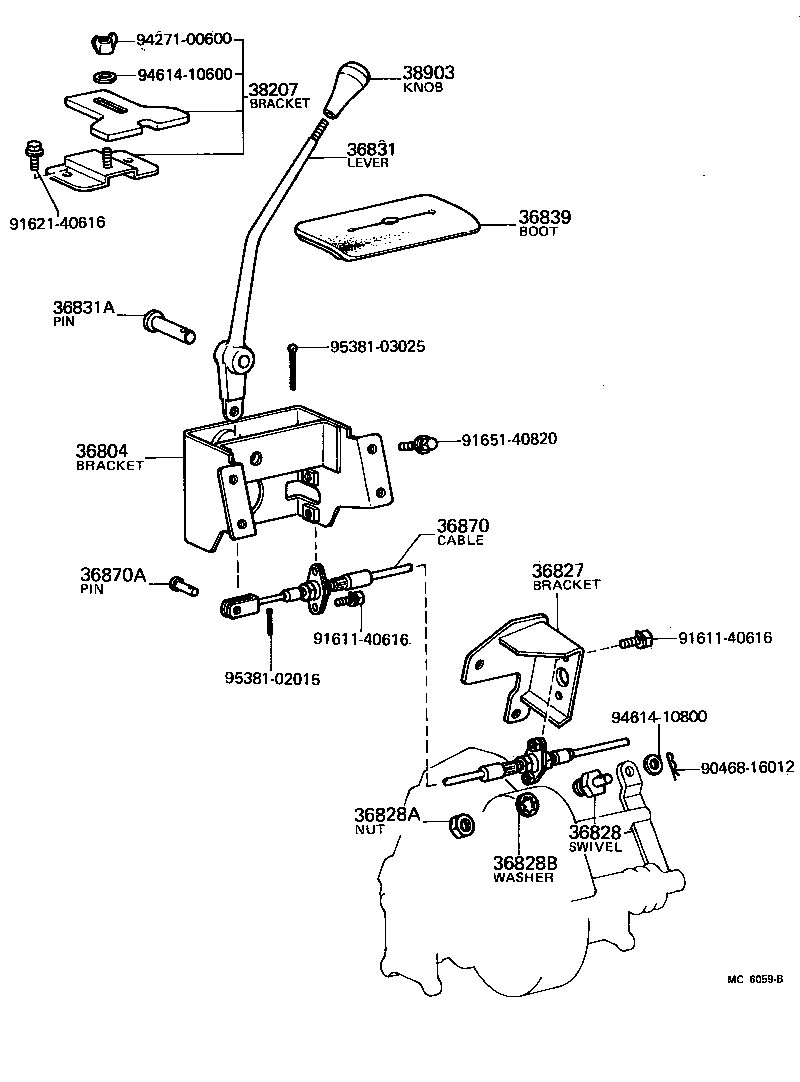

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90468-16012
91611-40616
91621-40616
91651-40820
94271-00600
94541-00600
94614-10600
94614-10800
95381-02015
95381-03025

(6903-7901)BJ4#,FJ40,43,45,55,HJ45 ; (7901-8007)FJ55

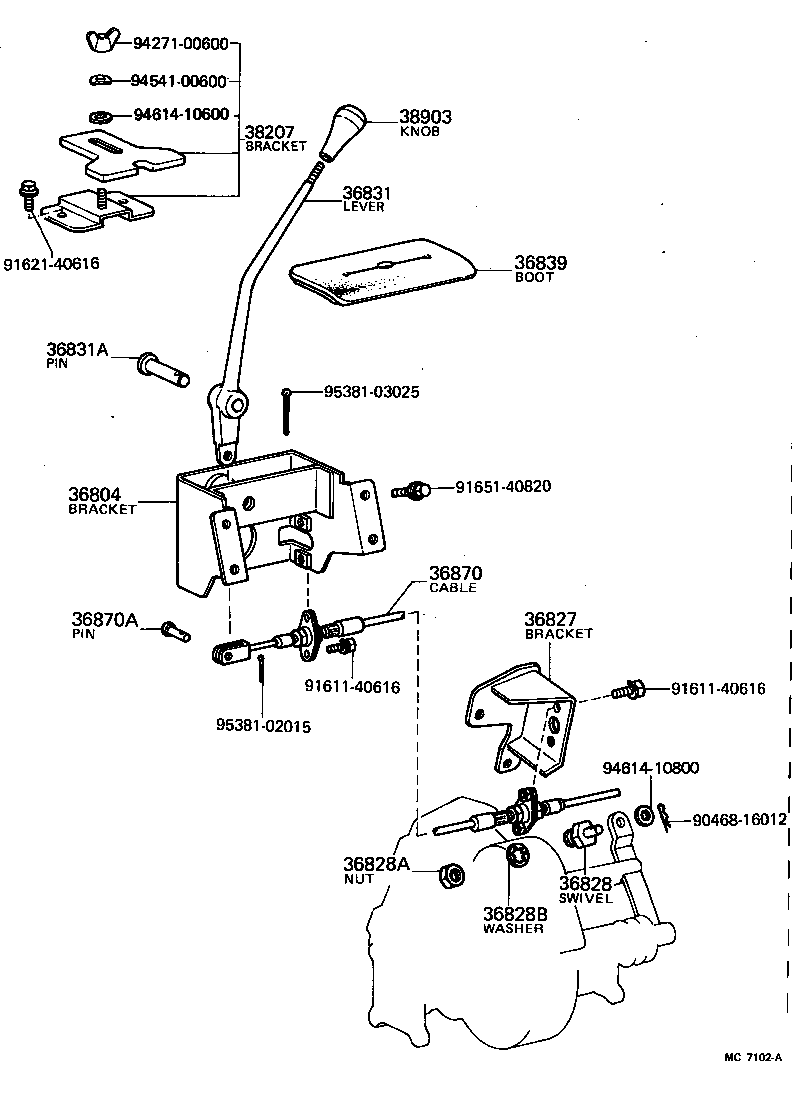

Click highlighted areas on diagram

Part #	Description	Period	Qty
36807 - ROD SUB-ASSY, POWER TAKE-OFF SHIFT
36807-60010	FJ40,43,45	03/1969 - 01/1975	1
36810 - LINK ASSY, FRONT POWER TAKE-OFF SHIFT
36810-60010	FJ40,43,45 FOR 3-SPEED TRANSMISSION	03/1969 - 01/1972	1
36820 - LINK ASSY, CENTER POWER TAKE-OFF SHIFT
36820-60010	FJ40,43,45	03/1969 - 01/1975	1
36831 - LEVER, POWER TAKE-OFF SHIFT
36831-60051	FJ40,43,45 FOR 3-SPEED TRANSMISSION	03/1969 - 01/1972	1
36831-60070	BJ4#,FJ4#,HJ45..LHD..4F	01/1979 - 07/1980	1
36832 - LEVER, CENTER POWER TAKE-OFF SHIFT
36831-60020	FJ40,43,45	03/1969 - 01/1975	1
36834 - SHAFT, LEVER SUPPORT
36834-60010	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	1
36834 - SHAFT, LEVER SUPPORT
36834-60010	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	1
36850 - ROD ASSY, POWER TAKE-OFF SHIFT
36850-60010	FJ40,43,45 FOR 3-SPEED TRANSMISSION	03/1969 - 01/1975	1
36850A - CLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)
33724-60010	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	2
36850A - CLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)
33724-60010	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	2
36850B - PIN (FOR POWER TAKE-OFF SHIFT LEVER)
90240-08028	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	2
36850B - PIN (FOR POWER TAKE-OFF SHIFT LEVER)
90240-08028	BJ4#,FJ40,43,45,55,HJ45	03/1969 - 01/1979	2
36850C - END ASSY, POWER TAKE-OFF SHIFT ROD
33750-35011	FJ40,43,45 LH.SCREW,FOR 3-SPEED T/M	03/1969 - 01/1975	2
36850C - END ASSY, POWER TAKE-OFF SHIFT ROD
33750-35011	FJ40,43,45 LH.SCREW,FOR 3-SPEED T/M	03/1969 - 01/1975	2
36850D - NUT (FOR POWER TAKE-OFF SHIFT ROD)
90170-08052	FJ40,43,45 LH.SCREW,FOR 3-SPEED T/M	03/1969 - 01/1975	2
36850D - NUT (FOR POWER TAKE-OFF SHIFT ROD)
90170-08052	FJ40,43,45 LH.SCREW,FOR 3-SPEED T/M	03/1969 - 01/1975	2
38903 - KNOB SUB-ASSY, CONTROL
36303-60010	FJ40,43,45,55	03/1969 - 09/1971	2
36303-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT POWER TAKE-OFF	08/1976 - 07/1980	1
36303-60060	BJ4#,FJ4#,55,HJ45 FOR CENTER POWER TAKE-OFF	08/1976 - 01/1979	1
38903 - KNOB SUB-ASSY, CONTROL
36303-60010	FJ40,43,45,55	03/1969 - 09/1971	2
36303-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT POWER TAKE-OFF	08/1976 - 07/1980	1
36303-60060	BJ4#,FJ4#,55,HJ45 FOR CENTER POWER TAKE-OFF	08/1976 - 01/1979	1
Common parts
94110-40800
94120-41000
94512-00800
94512-01000
94611-11300
95381-02015
95381-03025

(7901-8007)BJ4#,FJ4#,HJ45..4F

Click highlighted areas on diagram

Part #	Description	Period	Qty
36804 - BRACKET SUB-ASSY, POWER TAKE-OFF SHIFT LEVER
36804-60010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36827 - BRACKET, POWER TAKE-OFF CABLE
36827-60010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36828 - SWIVEL, POWER TAKE-OFF CABLE
36828-60010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36828A - NUT, HEXAGON (FOR POWER TAKE-OFF CABLE)
90170-14057	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36828B - WASHER, TOOTHED (FOR POWER TAKE-OFF CABLE)
94521-01400	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36831 - LEVER, POWER TAKE-OFF SHIFT
36831-60051	FJ40,43,45 FOR 3-SPEED TRANSMISSION	03/1969 - 01/1972	1
36831-60070	BJ4#,FJ4#,HJ45..LHD..4F	01/1979 - 07/1980	1
36831A - PIN (FOR POWER TAKE-OFF SHIFT LEVER)
90240-13001	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36839 - BOOT, POWER TAKE-OFF SHIFT LEVER
36839-60010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
36870 - CABLE ASSY, POWER TAKE-OFF
36870-60010	BJ4#,FJ4#..4F	01/1979 - 07/1980	1
36870A - PIN (FOR POWER TAKE-OFF CABLE)
90240-08010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
38207 - BRACKET SUB-ASSY, LEVER SHIFT LOCK
38207-60010	BJ4#,FJ4#,HJ45..4F	01/1979 - 07/1980	1
38903 - KNOB SUB-ASSY, CONTROL
36303-60010	FJ40,43,45,55	03/1969 - 09/1971	2
36303-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT POWER TAKE-OFF	08/1976 - 07/1980	1
36303-60060	BJ4#,FJ4#,55,HJ45 FOR CENTER POWER TAKE-OFF	08/1976 - 01/1979	1
Common parts
90468-16012
91611-40616
91621-40616
91651-40820
94271-00600
94614-10600
94614-10800
95381-02015
95381-03025

FJ45L-KC (1976)

(8008-8210)4F

(6903-7901)BJ4#,FJ40,43,45,55,HJ45 ; (7901-8007)FJ55

(7901-8007)BJ4#,FJ4#,HJ45..4F

Part Price Details
