FJ45L-KC (1976)

Toyota Land Cruiser

Production Jun 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
Common parts
90179-08123
91661-60816
92122-60832
93220-16012

(7606-8007)2F

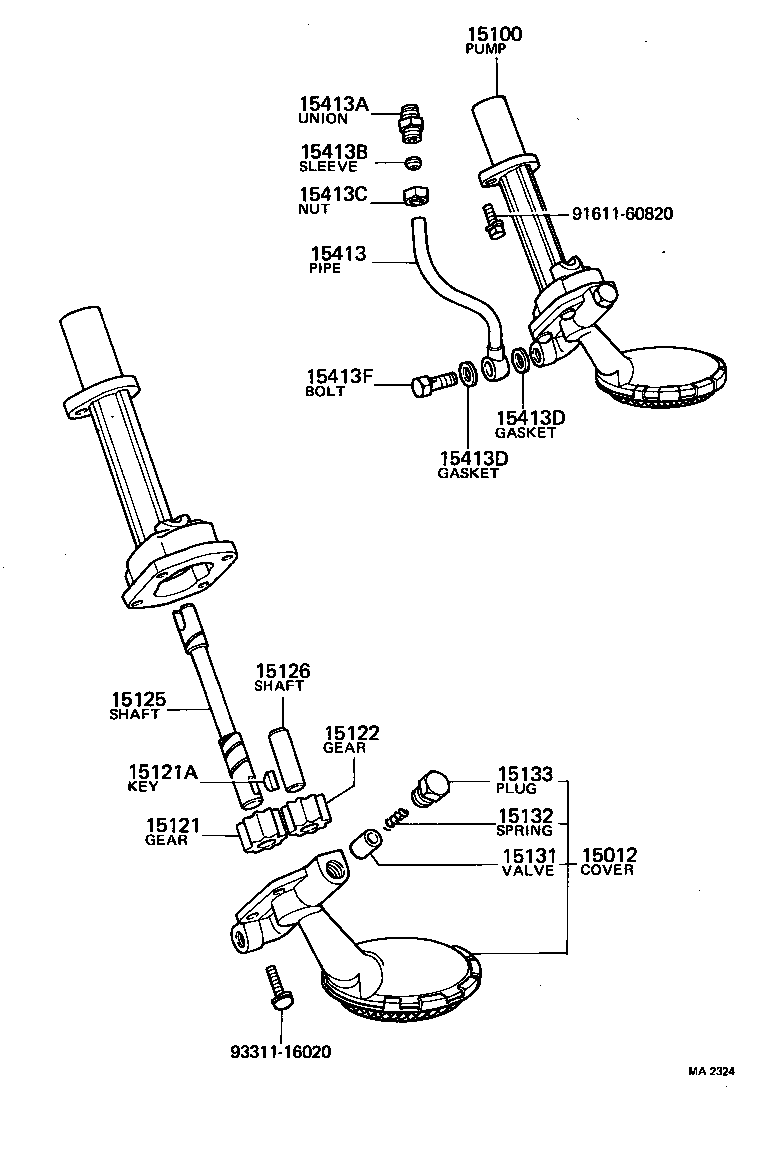

Click highlighted areas on diagram

diagram 15012 15100 15121 15121A 15122 15125 15126 15131 15132 15133 15413 15413A 15413B 15413C 15413D 15413D 15413F 9161160820 9331116020
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-60014

2F..FJ4#,55

 1
15100 - PUMP ASSY, OIL
15100-61010

2F..FJ4#,55

 1
15100-60012

F..FJ4#,55

 1
15100-60014

2F..FJ4#,55

 1
15121 - GEAR, OIL PUMP DRIVE
15121-60011

F..FJ4#,55

N=7

 1
15121A - KEY, OIL PUMP DRIVE SHAFT
90280-03009

F,2F..FJ4#,55

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

F..FJ4#,55

N=7

 1
15125 - SHAFT, OIL PUMP
15125-60012

F..FJ4#,55

 1
15126 - SHAFT, OIL PUMP DRIVEN
15126-60010

F..FJ4#,55

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2F..FJ4#,55

 1
15413 - PIPE, OIL PUMP OUTLET
15403-60010

F..FJ4#,55

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

F,2F..FJ4#,55

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

F,2F..FJ4#,55

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

F,2F..FJ4#,55

 2
Common parts
91611-60820
93311-16020

(7709-8007)B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15195 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9020112009 9161160832 9161160832 9161160835 9161160835 9165160816 9165160816 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-60010

F,2F..FJ4#,55

 1
15115 - COVER, OIL PUMP
15115-60012

F..FJ4#,55

 1
15121 - GEAR, OIL PUMP DRIVE
15121-60011

F..FJ4#,55

N=7

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

F..FJ4#,55

N=7

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2F..FJ4#,55

 1
Common parts
90201-12009
91611-60832
91611-60835
91651-60816
93220-16012
