FJ45L-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

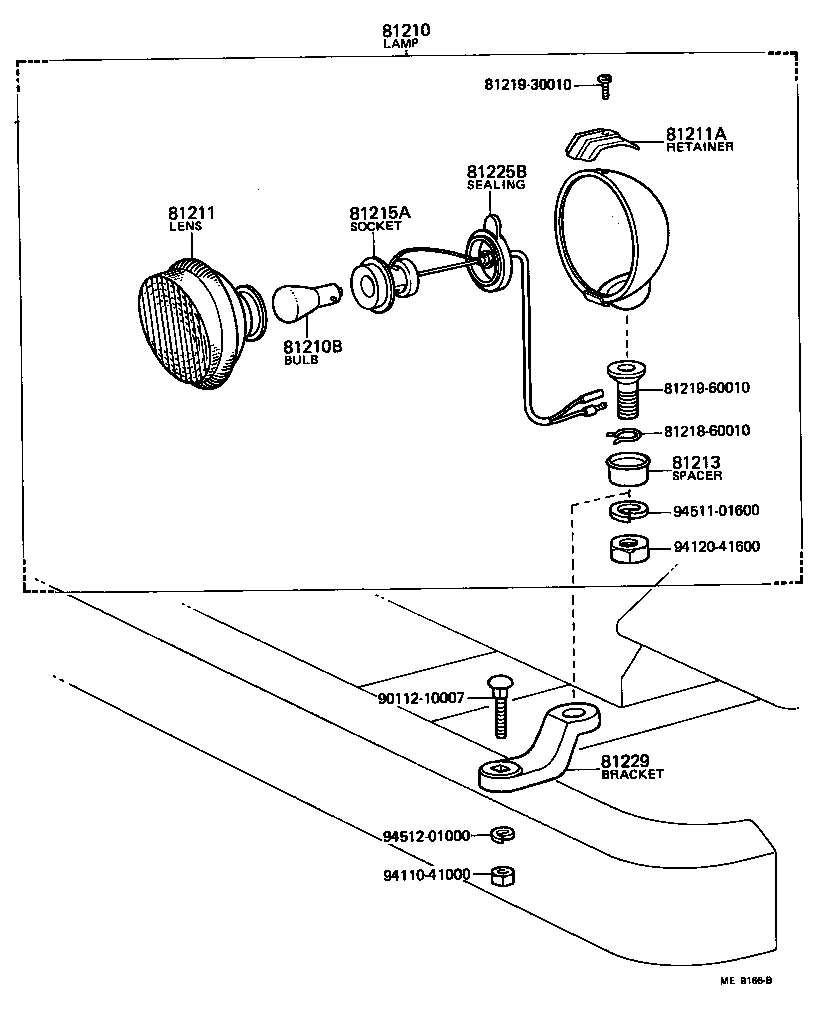

Click highlighted areas on diagram

diagram 81210 81210B 81211 81211A 81213 81215A 8121860010 8121930010 8121960010 81225B 81229 9011210007 9411041000 9412041600 9451101600 9451201000
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-60010

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 2
81210B - BULB, FOG LAMP
90981-15004

BJ4#,FJ4#,HJ47..ARL,GEN

12V 35W

 2
81211 - LENS, FOG LAMP
81218-30010

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 2
81211A - RETAINER, FOG LAMP
81216-30010

BJ4#,FJ4#,HJ47..ARL,GEN

 2
81213 - SPACER, FOG LAMP
81217-30010

BJ4#,FJ4#,HJ47..ARL,GEN

 2
81215A - SOCKET & WIRE, FOG LAMP
81216-60010

BJ4#,FJ4#,HJ47..ARL,GEN

 2
81225B - SEALING, FOG LAMP RING
81219-39010

BJ4#,FJ4#,HJ47..ARL,GEN

 2
81229 - BRACKET, FOG LAMP
81481-60010

BJ4#,FJ4#,HJ47..ARL,GEN

 2
Common parts
81218-60010
81219-30010
81219-60010
90112-10007
94110-41000
94120-41600
94511-01600
94512-01000
