FJ45L-K (1980)
Toyota Land Cruiser

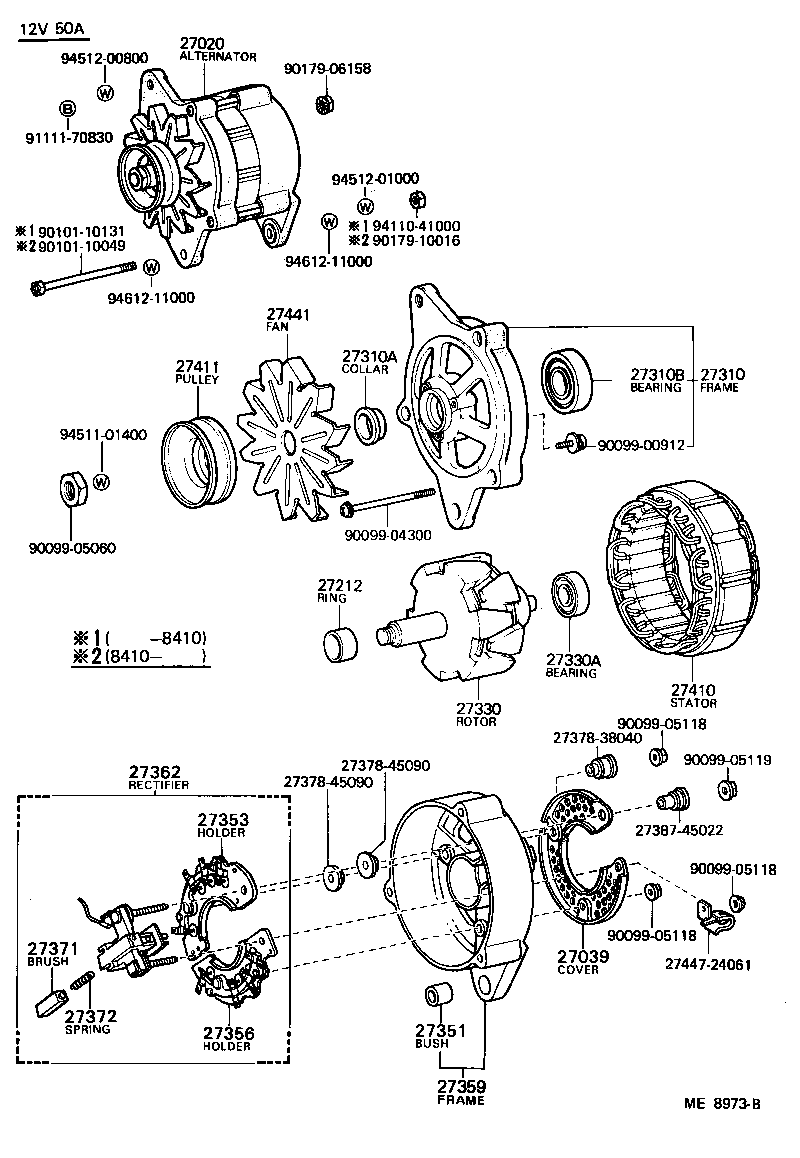

(8008- )2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
2F..FJ4# 12V 40A |
1 | ||
| 27039-45110 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 90099-10116 |
2F..FJ40,45 12V 80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27359-13050 |
2F..FJ4# 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27362-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27362-15021 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10131 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91111-70830 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

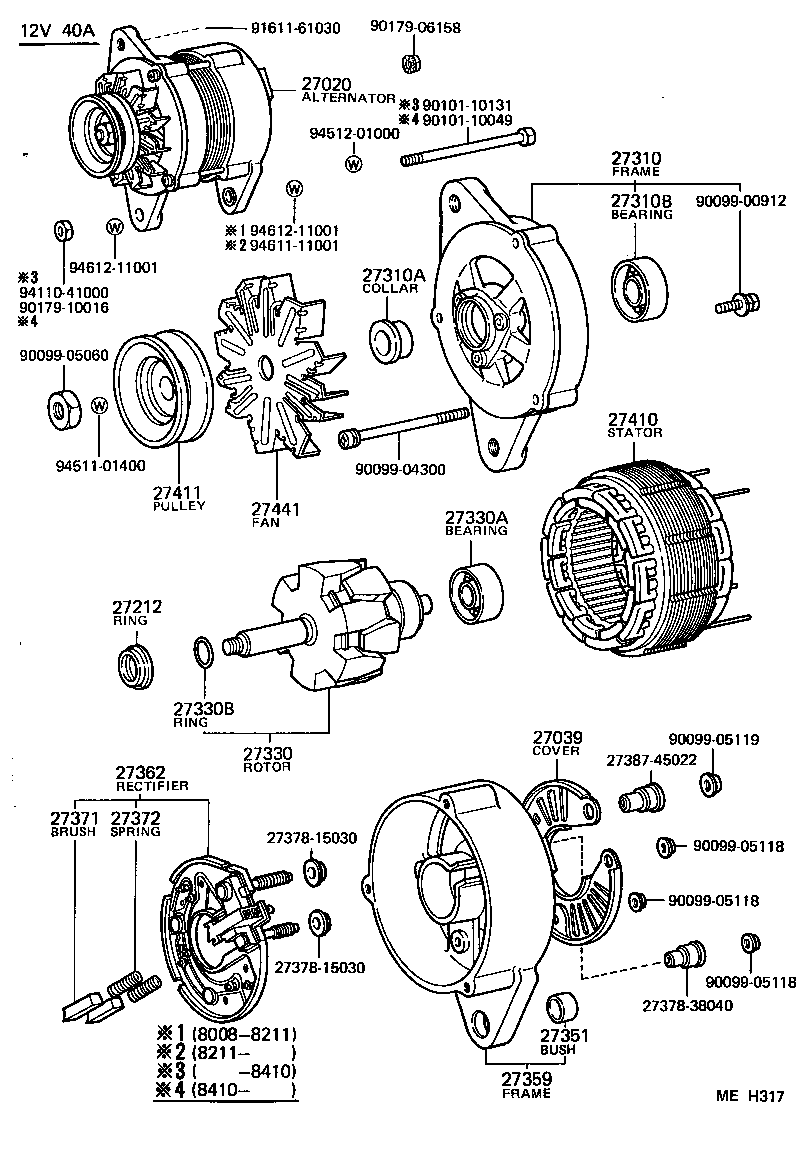

(8008-8204)B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-45010 |
2F..FJ40,45 12V 80A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-14055 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
(8204-8410)B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-45010 |
2F..FJ40,45 12V 80A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-14055 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
(8404- )2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 90099-10116 |
2F..FJ40,45 12V 80A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27362-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27362-15021 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10131 | ||||
| 90179-06158 | ||||
| 91111-70830 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

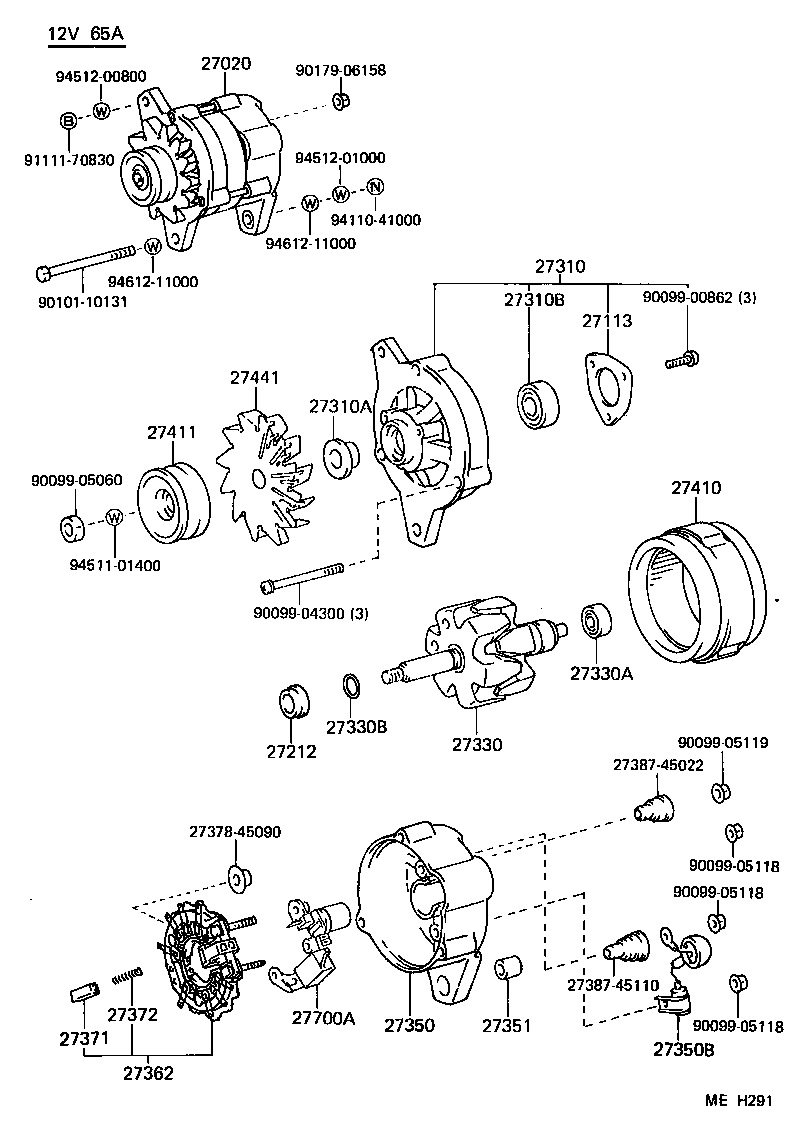

(8404- )2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-45010 |
2F..FJ40,45 12V 80A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 90099-10116 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27362-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27362-15021 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00862 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10131 | ||||
| 90179-06158 | ||||
| 91111-70830 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

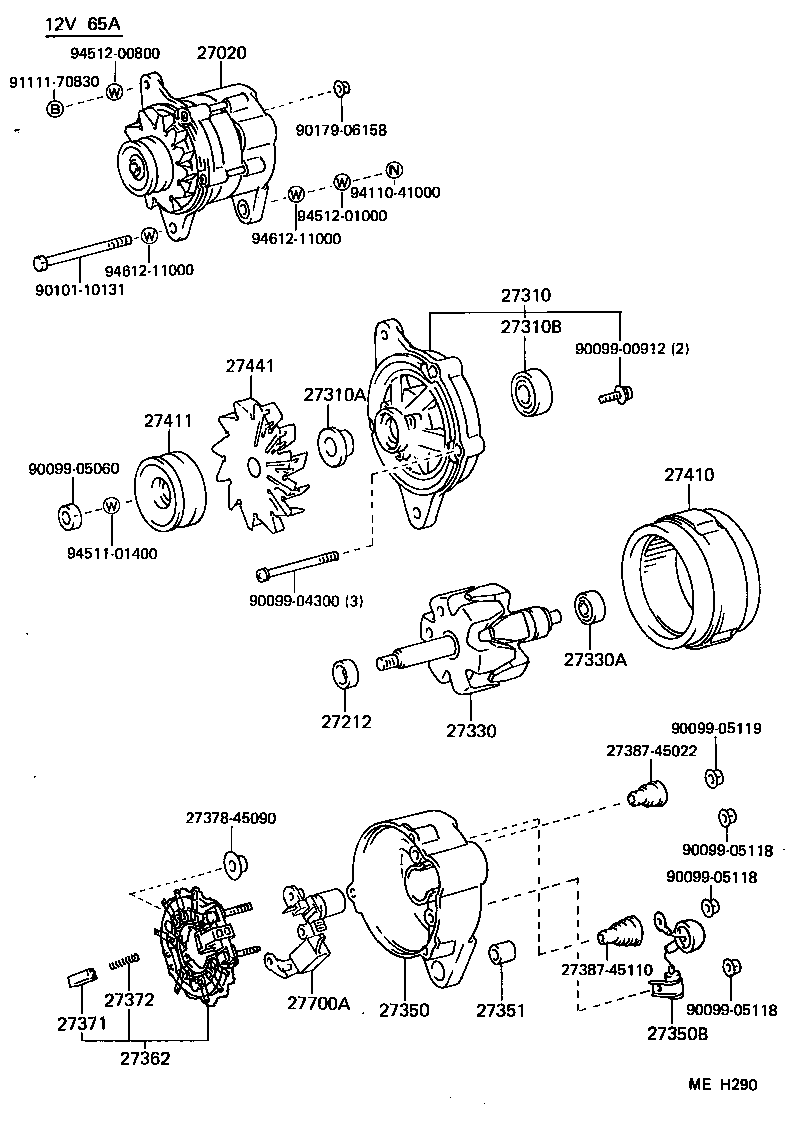

(8008- )2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,12V 40A,W/POWER STEERING |
1 | ||
| 27060-61050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27020-61033 |
2F..FJ4#..EUR,GEN 12V 50A,12V 50A |
1 | ||
| 27020-61150 |
2F..FJ4# 12V 40A,12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
2F..FJ4# 12V 40A |
1 | ||
| 27039-45110 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
2F..FJ4#..EUR,GEN 12V 50A,65A |
1 | ||
| 27212-39050 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
B,3B..BJ40,42,43,45..LHD..GEN 12V 40A,W/POWER STEERING |
1 | ||
| 27310-26101 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27310-18010 |
2F..FJ4# 12V 40A |
1 | ||
| 27310-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-45012 |
2F..FJ40,45 12V 80A |
1 | ||
| 27412-31040 |
2F..FJ4# 12V 40A,50A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10110 |
2F..FJ40,45 12V 80A |
1 | ||
| 90099-10126 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330-45070 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27330-26050 |
2F..FJ4# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 90099-10116 |
2F..FJ40,45 12V 80A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
2F..FJ4# 12V 40A,80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F..FJ4# 12V 40A,50A,65A,80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27359-13050 |
2F..FJ4# 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27362-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27362-15021 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F..FJ4# 12V 40A,50A,65A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-72070 |
2F..FJ40,45 12V 80A |
1 | ||
| 27410-41080 |
2F..FJ4#..EUR,GEN 12V 50A |
1 | ||
| 27410-15030 |
2F..FJ4# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
2F..FJ40,45 12V 65A,80A |
1 | ||
| 27411-60032 |
2F..FJ4# 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45050 |
2F..FJ40,45 12V 80A |
1 | ||
| 27441-34030 |
2F..FJ4# 12V 40A,50A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10131 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91611-61030 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
