FJ45L-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

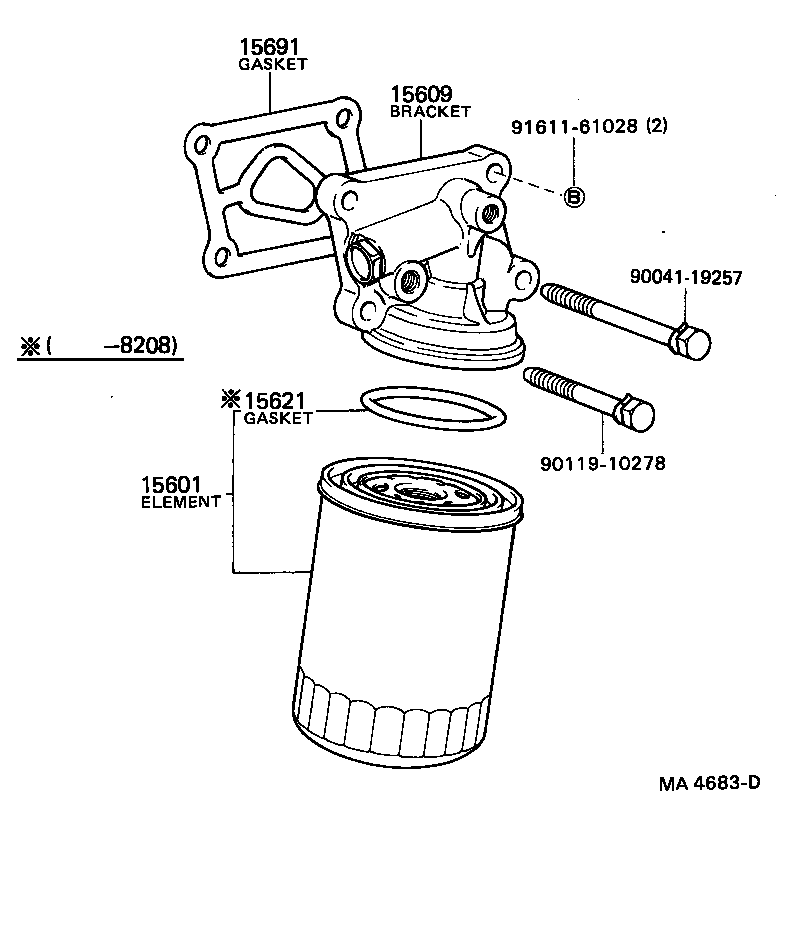

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

2F..FJ4#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61020

2F..FJ4#

 1
15609-61010

2F..FJ4#..GEN

W/OIL COOLER

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2F..FJ4#..3F,4F

 1
15691 - GASKET, OIL FILTER
15691-60010

2F..FJ4#

 1
Common parts
90041-19257
90119-10278
91611-61028

(8008- )2F

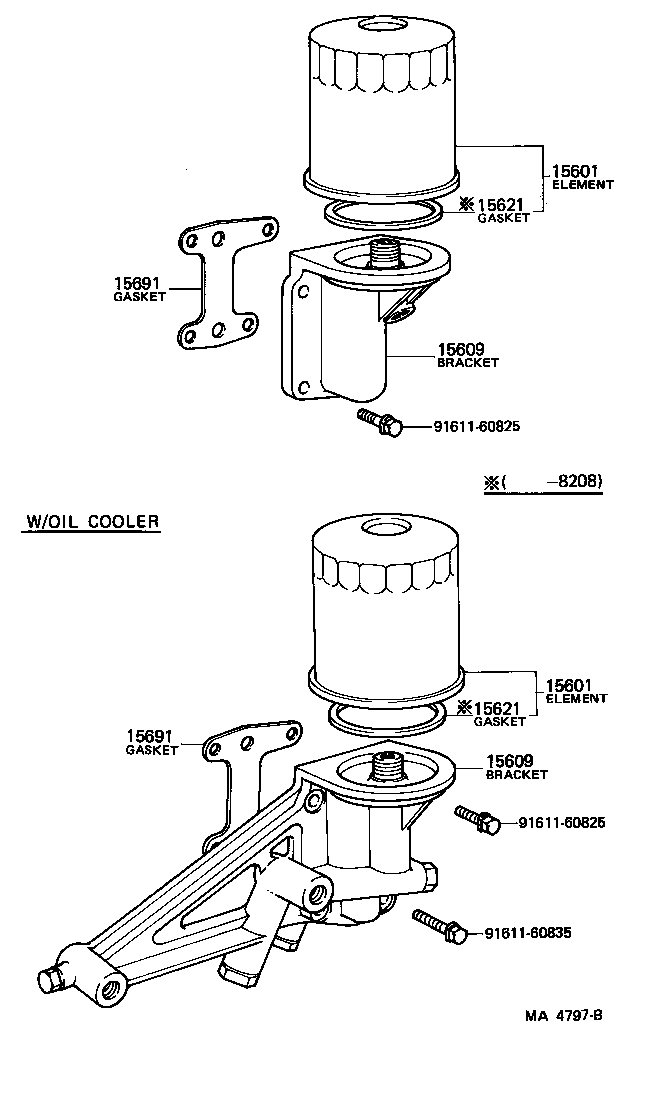

Click highlighted areas on diagram

diagram 15601 15601 15609 15609 15621 15621 15691 15691 9161160825 9161160825 9161160835
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

2F..FJ4#

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

2F..FJ4#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61020

2F..FJ4#

 1
15609-61010

2F..FJ4#..GEN

W/OIL COOLER

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61020

2F..FJ4#

 1
15609-61010

2F..FJ4#..GEN

W/OIL COOLER

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2F..FJ4#..3F,4F

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2F..FJ4#..3F,4F

 1
15691 - GASKET, OIL FILTER
15691-60010

2F..FJ4#

 1
15691 - GASKET, OIL FILTER
15691-60010

2F..FJ4#

 1
Common parts
91611-60825
91611-60835
