Toyota Land cruiser FJ43 WIRING & CLAMP

FJ43R-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

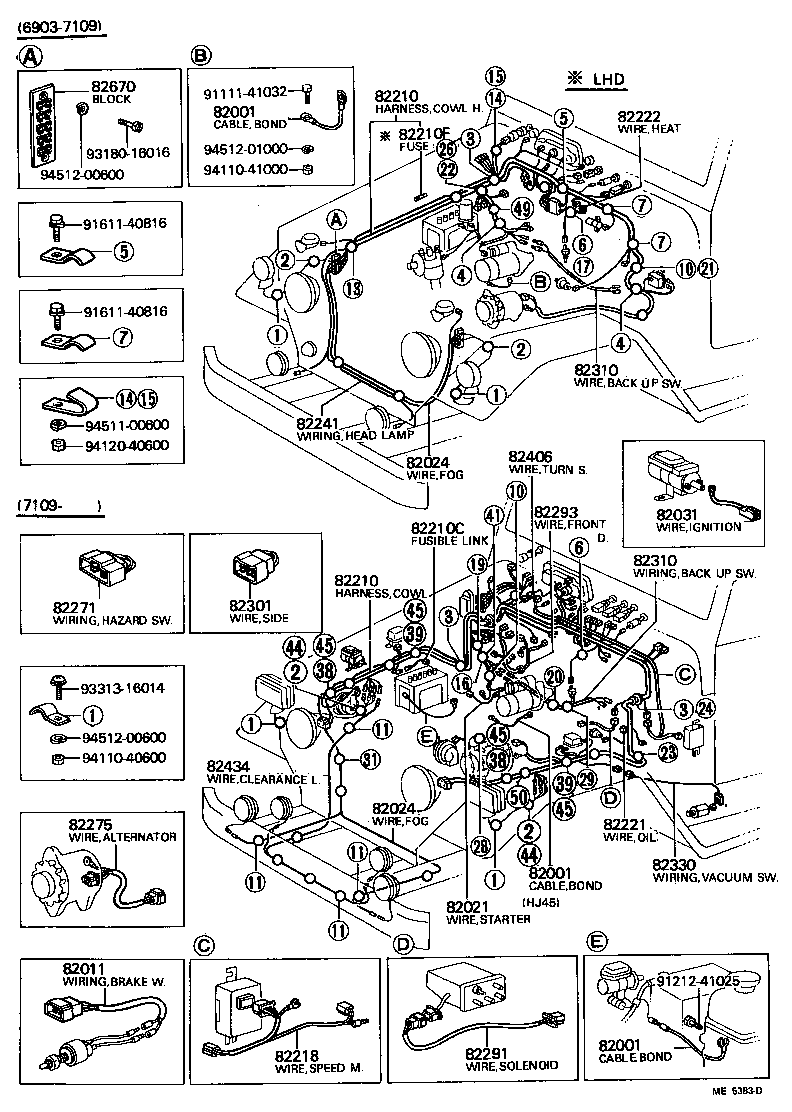

(6903-7901)FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-90300	BJ4#,FJ40,43,HJ45..GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-60010	FJ4#,HJ45	03/1969 - 09/1972	1
82024-90301	BJ4#,FJ4#,HJ45..ARL,GEN	01/1975 - 09/1975	1
82024-90306	BJ4#,FJ4#,HJ45..ARL,GEN	08/1978 - 01/1979	1
82024-90307	BJ4#,FJ4#,HJ45..ARL,GEN	01/1979 - 07/1980	1
82024-90302	BJ4#,FJ4#,HJ45..ARL,GEN REAR	09/1975 - 08/1978	1
82024-90303	BJ4#,FJ4#,HJ45..ARL,GEN FRONT	09/1975 - 08/1978	1
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-60010	FJ4#,HJ45	03/1969 - 09/1972	1
82024-90301	BJ4#,FJ4#,HJ45..ARL,GEN	01/1975 - 09/1975	1
82024-90306	BJ4#,FJ4#,HJ45..ARL,GEN	08/1978 - 01/1979	1
82024-90307	BJ4#,FJ4#,HJ45..ARL,GEN	01/1979 - 07/1980	1
82024-90302	BJ4#,FJ4#,HJ45..ARL,GEN REAR	09/1975 - 08/1978	1
82024-90303	BJ4#,FJ4#,HJ45..ARL,GEN FRONT	09/1975 - 08/1978	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90337	FJ4#..RHD	01/1975 - 09/1977	1
82220-60172	FJ40,43,45..RHD	03/1969 - 10/1969	1
82220-60200	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90603	FJ4#..RHD	09/1977 - 04/1978	1
82210-90603	FJ4#..RHD..GEN	04/1978 - 01/1979	1
82210-90623	FJ4#..RHD..GEN	01/1979 - 07/1980	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90337	FJ4#..RHD	01/1975 - 09/1977	1
82220-60172	FJ40,43,45..RHD	03/1969 - 10/1969	1
82220-60200	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90603	FJ4#..RHD	09/1977 - 04/1978	1
82210-90603	FJ4#..RHD..GEN	04/1978 - 01/1979	1
82210-90623	FJ4#..RHD..GEN	01/1979 - 07/1980	1
82210C - FUSIBLE LINK
90982-08019	FJ4#	09/1977 - 01/1979	1
90982-08071	FJ4#	01/1979 - 07/1980	1
82241 - WIRING ASSY, HEADLAMP JUNCTION
82240-60040	FJ4#	03/1969 - 10/1969	1
82240-60010	FJ40,43,45..RHD AUSTRALIA SPEC.	03/1969 - 09/1971	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82275 - WIRE, ALTERNATOR
82422-90307	FJ4#	01/1979 - 07/1980	1
82293 - WIRE ASSY, FRONT DRIVE SOLENOID
82290-90300	FJ4#..RHD	01/1975 - 01/1979	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60020	FJ4#	03/1969 - 07/1970	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60020	FJ4#	03/1969 - 07/1970	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-30020	FJ4#;FJ55..VTG	03/1969 - 07/1971	2
Common parts
91111-41032
91212-41025
91611-40816
93180-16016
93313-16014
94110-40600
94110-41000
94120-40600
94511-00600
94512-00600
94512-01000

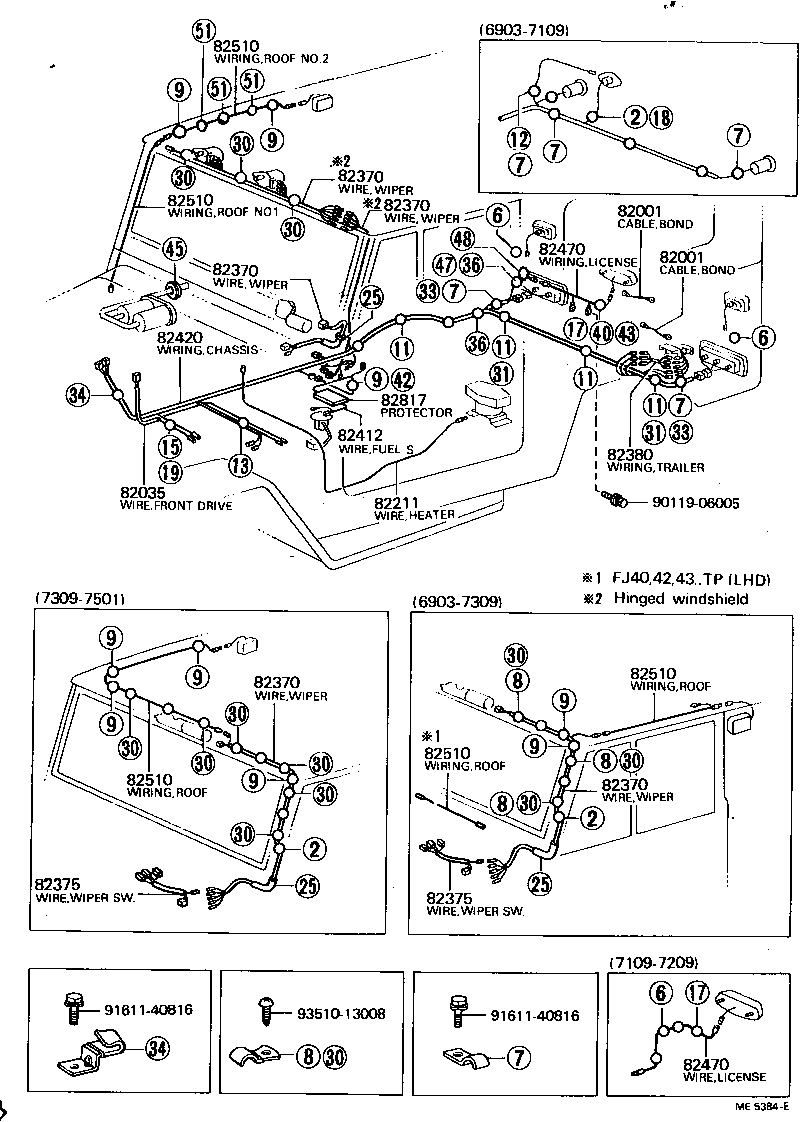

(6903-7901)FJ4#..TP,V

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90301	FJ4#	01/1975 - 01/1979	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90302	BJ4#,FJ4#..TP,V	08/1976 - 01/1979	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ40,42,43	03/1969 - 09/1971	1
82380-90300	BJ4#,FJ4#..TP,V	06/1975 - 07/1980	1
82380-90300	BJ4#,FJ40,43	01/1975 - 06/1975	1
82412 - WIRE, FUEL GAGE
82412-90309	FJ4#,HJ45	01/1979 - 09/1979	1
82412-90309	FJ4#..TP,V	09/1979 - 07/1980	1
82412-90305	BJ4#,FJ4#..TP,V	05/1978 - 01/1979	1
82420 - WIRING ASSY, CHASSIS
82420-90338	FJ43	01/1979 - 07/1980	1
82420-60041	FJ43	03/1969 - 09/1972	1
82420-60091	FJ40,43,45,HJ45..RHD AUSTRALIA SPEC.	03/1969 - 09/1972	1
82420-90309	FJ43	01/1975 - 09/1977	1
82420-90326	FJ43	09/1977 - 01/1979	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90303	BJ4#,FJ4#..TPS	08/1976 - 01/1979	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90160	BJ4#,FJ4#..TPS L=100	01/1979 - 07/1980	1
82470-90310	BJ4#,FJ4#..TPS	01/1979 - 07/1980	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90303	BJ4#,FJ4#..TPS	08/1976 - 01/1979	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90160	BJ4#,FJ4#..TPS L=100	01/1979 - 07/1980	1
82470-90310	BJ4#,FJ4#..TPS	01/1979 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
Common parts
90119-06005
91611-40816
93510-13008

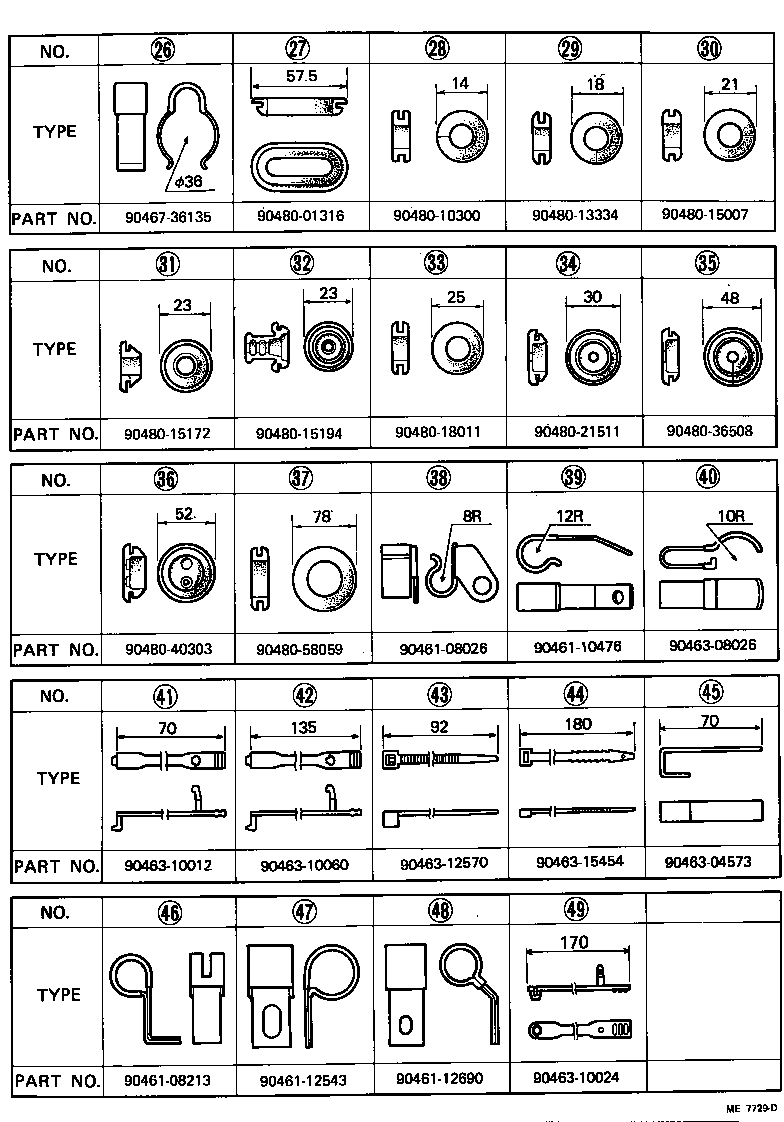

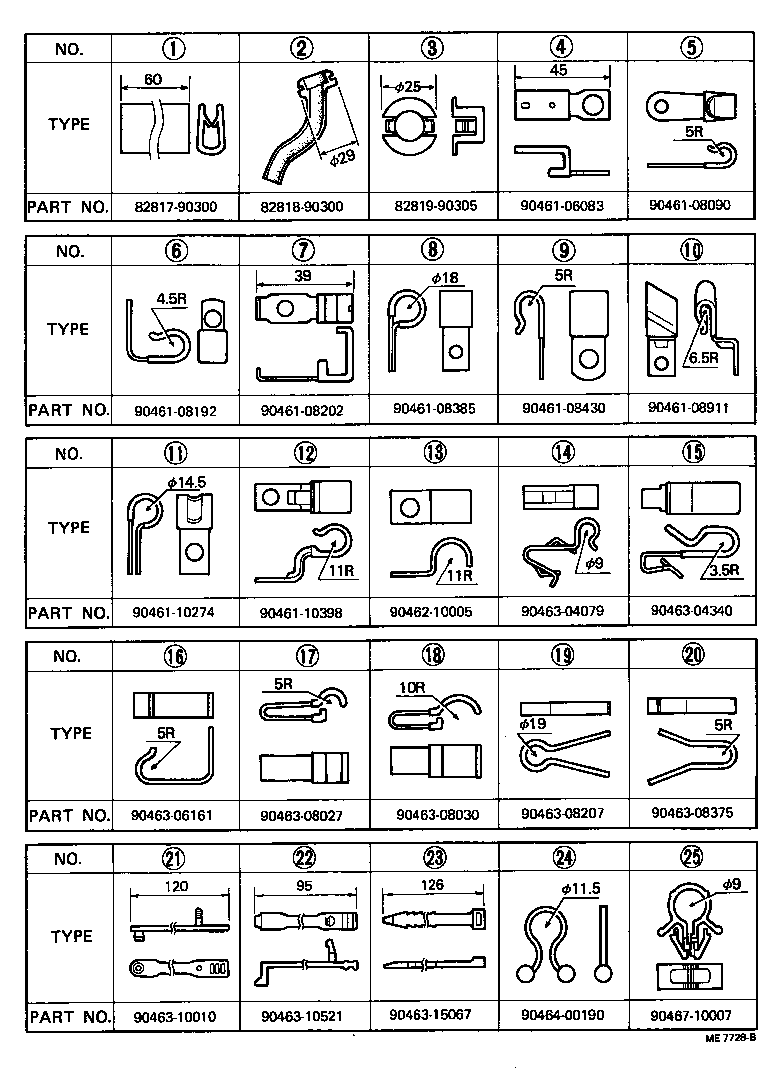

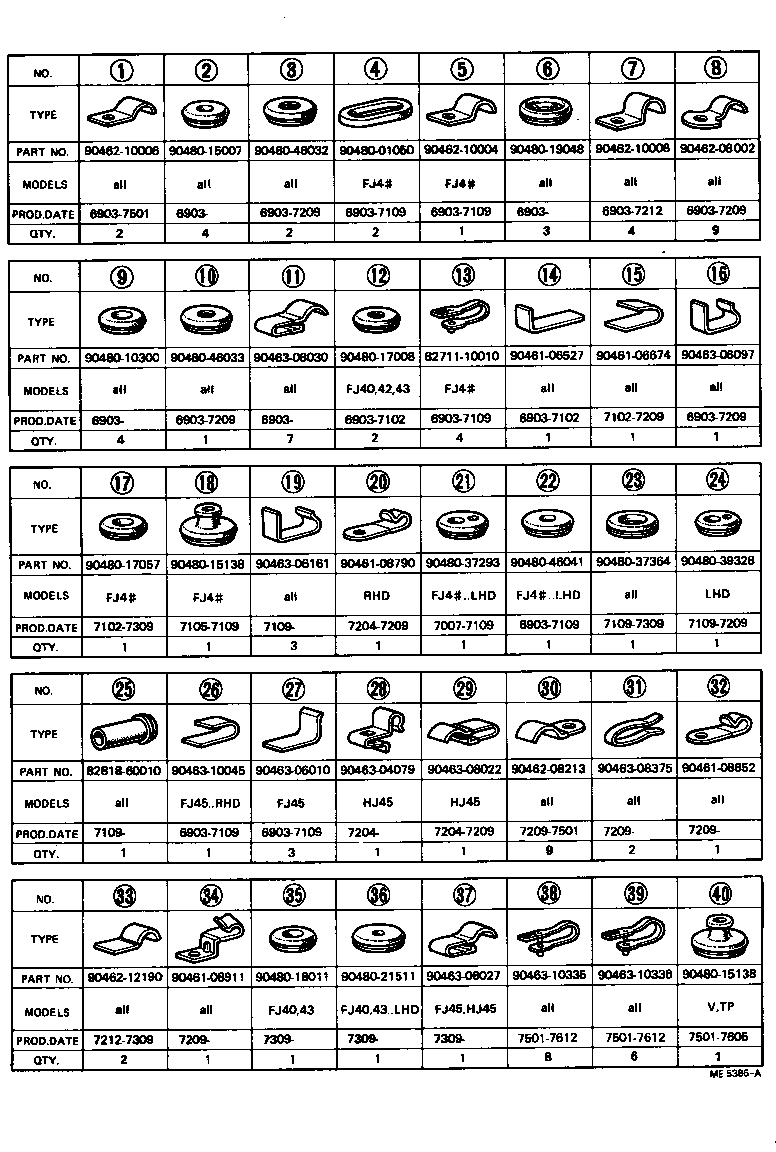

(6903-7901)FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-10010
82818-60010
90461-06527
90461-06674
90461-08790
90461-08852
90461-08911
90462-08002
90462-08213
90462-10004
90462-10006
90462-10008
90462-12190
90463-04079
90463-06010
90463-06097
90463-06161
90463-08022
90463-08027
90463-08030
90463-08375
90463-10045
90463-10335
90463-10336
90480-01050
90480-10300
90480-15007
90480-15138
90480-17008
90480-17057
90480-18011
90480-19048
90480-21511
90480-37293
90480-37364
90480-39328
90480-46032
90480-46033
90480-46041

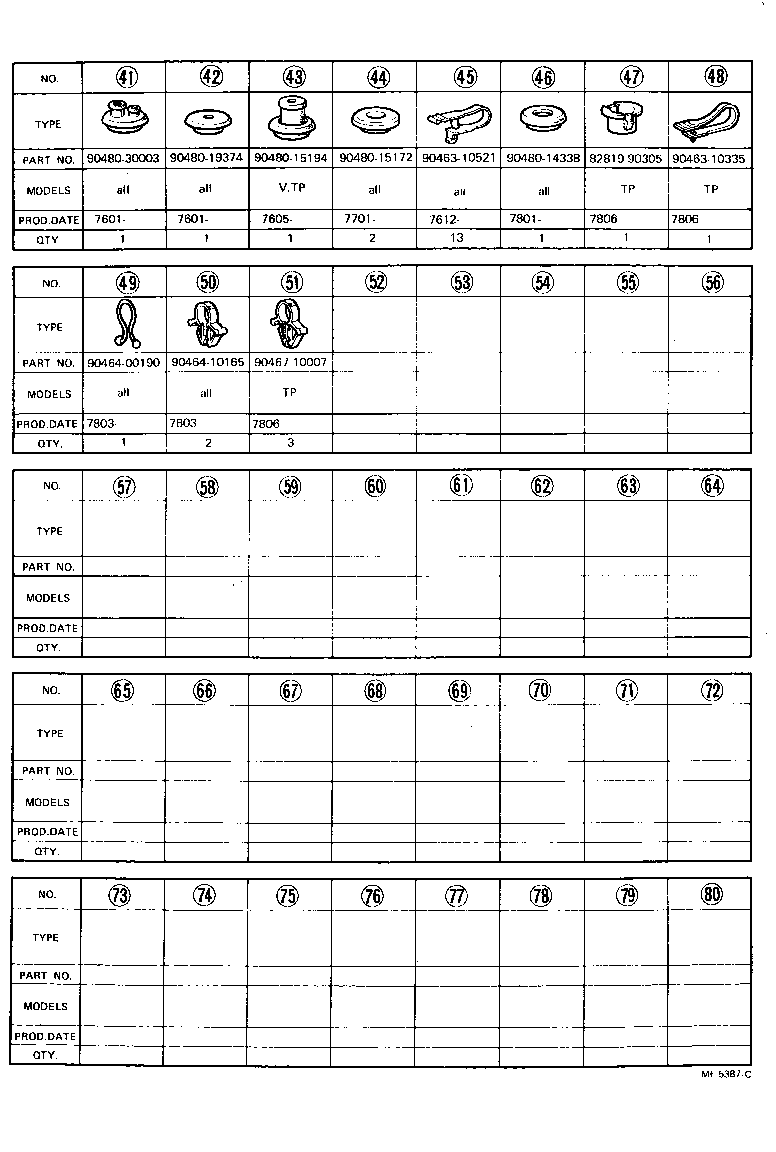

(6903-7901)FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82819-90305
90463-10335
90463-10521
90464-00190
90464-10165
90467-10007
90480-14338
90480-15172
90480-15194
90480-19374
90480-30003

(7901-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
82381-60010	FJ4# L=150	03/1969 - 09/1971	1
82046-14070	FJ4#,HJ45 L=330	01/1975 - 07/1975	1
90980-07003	FJ4#,HJ45 L=350	03/1969 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82002 - CABLE, BATTERY TO MAGNET SWITCH
38915-90302	FJ4#	10/1979 - 07/1980	1
82002A - CABLE, MAGNET SWITCH TO WINCH
38916-90303	FJ4#	10/1979 - 07/1980	1
82002B - CABLE, WINCH TO GROUND
90980-07175	BJ4#,FJ4#,HJ45	10/1979 - 07/1980	1
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-60010	FJ4#,HJ45	03/1969 - 09/1972	1
82024-90301	BJ4#,FJ4#,HJ45..ARL,GEN	01/1975 - 09/1975	1
82024-90306	BJ4#,FJ4#,HJ45..ARL,GEN	08/1978 - 01/1979	1
82024-90307	BJ4#,FJ4#,HJ45..ARL,GEN	01/1979 - 07/1980	1
82024-90302	BJ4#,FJ4#,HJ45..ARL,GEN REAR	09/1975 - 08/1978	1
82024-90303	BJ4#,FJ4#,HJ45..ARL,GEN FRONT	09/1975 - 08/1978	1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90301	FJ4#	01/1975 - 01/1979	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90337	FJ4#..RHD	01/1975 - 09/1977	1
82220-60172	FJ40,43,45..RHD	03/1969 - 10/1969	1
82220-60200	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90603	FJ4#..RHD	09/1977 - 04/1978	1
82210-90603	FJ4#..RHD..GEN	04/1978 - 01/1979	1
82210-90623	FJ4#..RHD..GEN	01/1979 - 07/1980	1
82210C - FUSIBLE LINK
90982-08019	FJ4#	09/1977 - 01/1979	1
90982-08071	FJ4#	01/1979 - 07/1980	1
82215 - WIRE, PARKING BRAKE LAMP SWITCH
82215-90304	BJ4#,FJ4#..RHD W/REAR HEATER	01/1979 - 07/1980	1
82215-90300	BJ4#,FJ4#,HJ45..RHD..(TP,V)	09/1979 - 07/1980	1
82215-90300	BJ4#,FJ4#,HJ45..RHD	01/1979 - 09/1979	1
82220 - HARNESS ASSY, WIRING COWL
82220-90317	FJ4#..RHD..GEN	01/1979 - 07/1980	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82275 - WIRE, ALTERNATOR
82422-90307	FJ4#	01/1979 - 07/1980	1
82293 - WIRE ASSY, FRONT DRIVE SOLENOID
82290-90300	FJ4#..RHD	01/1975 - 01/1979	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60060	FJ40,43..RHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-60050	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
82370-90306	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90310	BJ4#,FJ4#..RHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ40,42,43	03/1969 - 09/1971	1
82380-90300	BJ4#,FJ4#..TP,V	06/1975 - 07/1980	1
82380-90300	BJ4#,FJ40,43	01/1975 - 06/1975	1
82412 - WIRE, FUEL GAGE
82412-90309	FJ4#,HJ45	01/1979 - 09/1979	1
82412-90309	FJ4#..TP,V	09/1979 - 07/1980	1
82412-90305	BJ4#,FJ4#..TP,V	05/1978 - 01/1979	1
82420 - WIRING ASSY, CHASSIS
82420-90338	FJ43	01/1979 - 07/1980	1
82420-60041	FJ43	03/1969 - 09/1972	1
82420-60091	FJ40,43,45,HJ45..RHD AUSTRALIA SPEC.	03/1969 - 09/1972	1
82420-90309	FJ43	01/1975 - 09/1977	1
82420-90326	FJ43	09/1977 - 01/1979	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90303	BJ4#,FJ4#..TPS	08/1976 - 01/1979	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90160	BJ4#,FJ4#..TPS L=100	01/1979 - 07/1980	1
82470-90310	BJ4#,FJ4#..TPS	01/1979 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82823 - CAP, TERMINAL, NO.1
82823-90300	BJ4#,FJ4#,HJ45 FOR ELECTRICAL WINCH	10/1979 - 07/1980	1
Linked diagrams
8401

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-90300
82818-90300
82819-90305
90461-06083
90461-08090
90461-08192
90461-08202
90461-08385
90461-08430
90461-08911
90461-10274
90461-10398
90462-10005
90463-04079
90463-04340
90463-06161
90463-08027
90463-08030
90463-08207
90463-08375
90463-10010
90463-10521
90463-15067
90464-00190
90467-10007

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08026
90461-08213
90461-10476
90461-12543
90461-12690
90463-04573
90463-08026
90463-10012
90463-10024
90463-10060
90463-12570
90463-15454
90467-36135
90480-01316
90480-10300
90480-13334
90480-15007
90480-15172
90480-15194
90480-18011
90480-21511
90480-36508
90480-40303
90480-58059

FJ43R-UJ (1975)

(6903-7901)FJ4#,HJ45

(6903-7901)FJ4#..TP,V

(6903-7901)FJ4#,HJ45

(6903-7901)FJ4#,HJ45

(7901-8007)BJ4#,FJ4#,HJ45

(7901-8007)

(7901-8007)

Part Price Details
