FJ43R-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)TPS

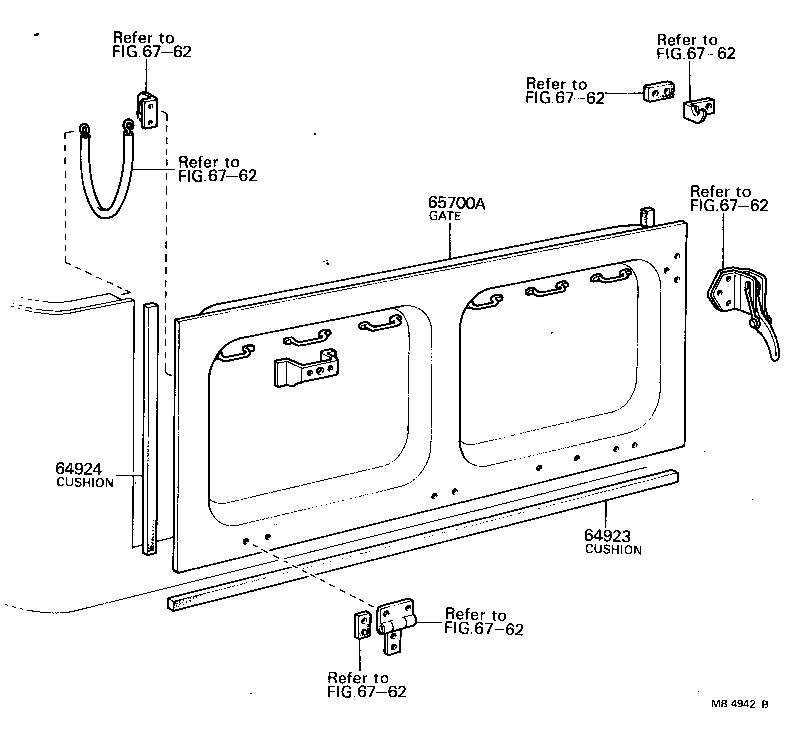

Click highlighted areas on diagram

diagram 64923 64924 65700A 6762 6762 6762 6762 6762 6762 6762
Part # Description Qty Price
64923 - CUSHION, REAR DROP GATE, LOWER
64923-90300

BJ4#,FJ4#..TPS

 1
64923-60010

BJ4#,FJ4#..TPS

 1
64924 - CUSHION, REAR DROP GATE, SIDE
64922-90302

BJ4#,FJ4#..TPS

 2
64922-60010

BJ4#,FJ4#..TPS

 2
65700A - GATE ASSY, REAR DROP
64901-60010

FJ40,43..RHD..TPS

 1
64901-90306

BJ4#,FJ4#..TPS

 1
64901-90316

BJ4#,FJ4#..TPS..(ARL,GEN)

 1
64901-90309

BJ4#,FJ4#..TPS..(ARL,GEN)

FOR LARGE LICENSE PLATE

 1
Linked diagrams
6762
