FJ43R-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)FJ40,43 ; (8210- )FJ40,45..ARL,EUR; (8301-8506)FJ45..RHD..GEN

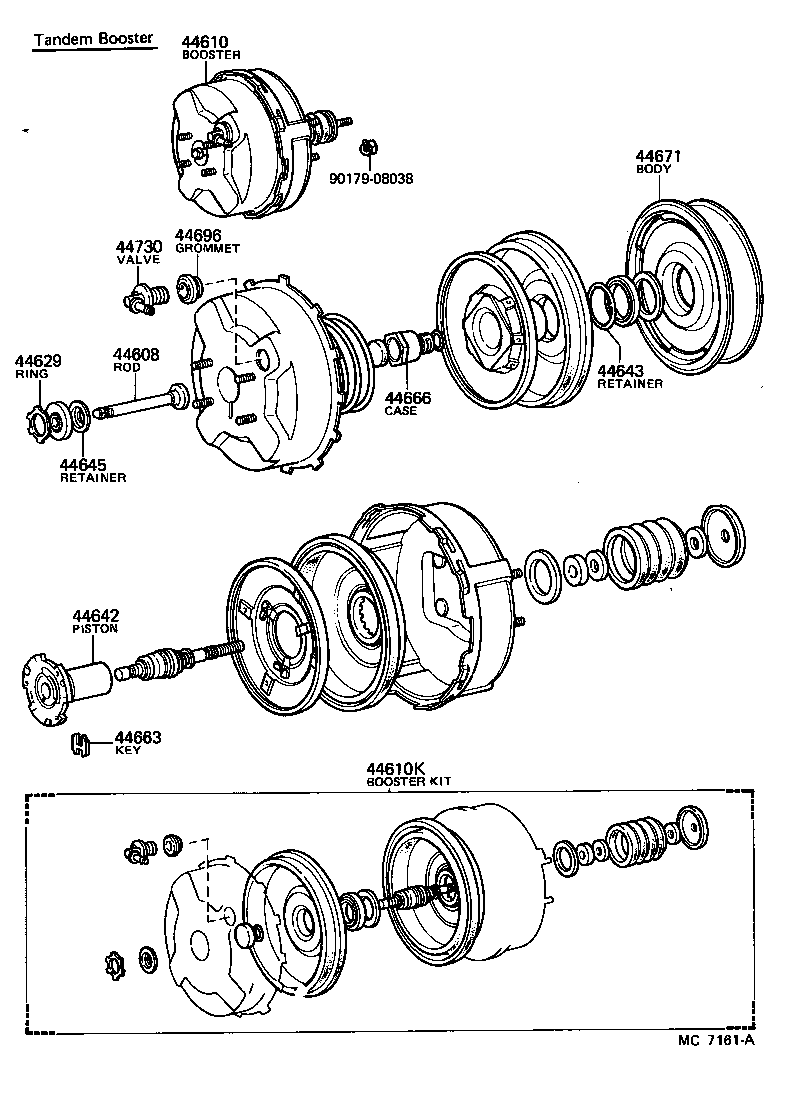

Click highlighted areas on diagram

diagram 44608 44610 44610K 44629 44642 44643 44645 44663 44666 44671 44696 44730 9017908038
Part # Description Qty Price
Common parts
90179-08038

(8008-8210)ARL,GEN ; (8210- )GEN

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44647 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44696 44730 9017908038 9331914008
Part # Description Qty Price
Common parts
90179-08038
93319-14008

(6903-8007)FJ40,43,45,55

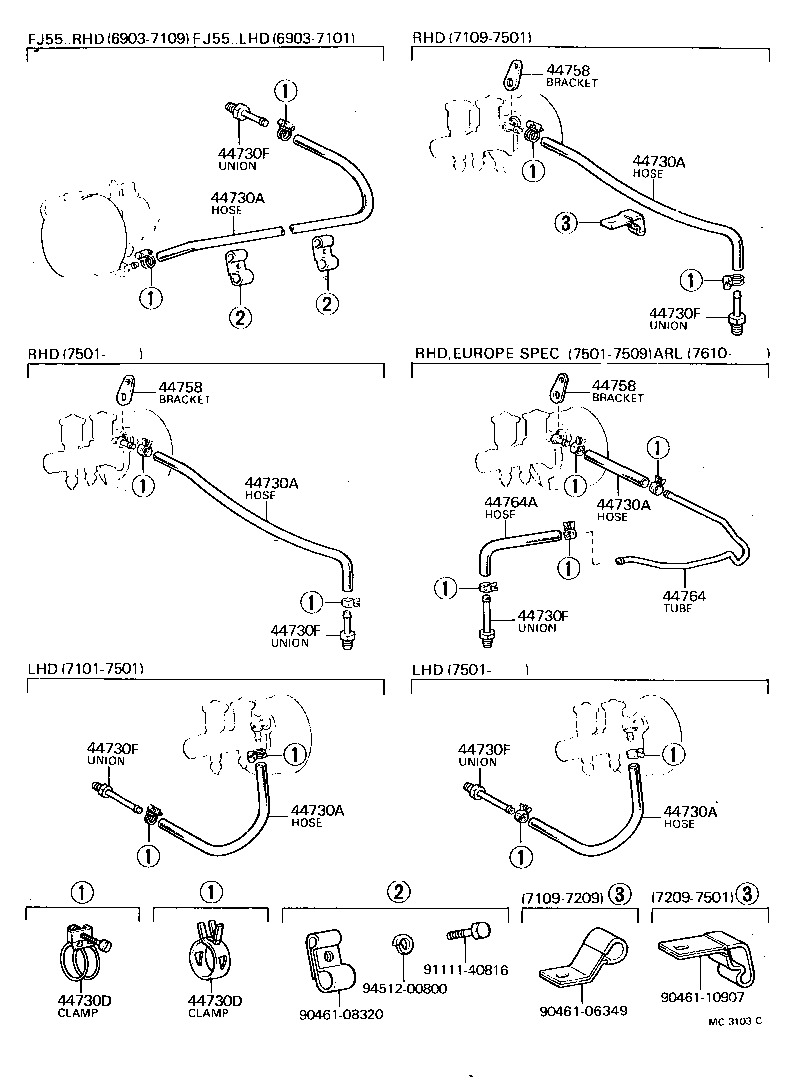

Click highlighted areas on diagram

diagram 44730A 44730A 44730A 44730A 44730A 44730A 44730D 44730D 44730F 44730F 44730F 44730F 44730F 44730F 44758 44758 44758 44764 44764A 9046106349 9046108320 9046110907 9111140816 9451200800
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730A - HOSE, VACUUM, NO.1
90445-17799

FJ45..RHD..EUR..IV;FJ43,45..RHD..(ARL,GEN)

 1
90445-17023

FJ43..RHD..GEN;FJ45..RHD..(TP,V);FJ45..RHD..EUR..IV;FJ45..RHD..PIC..(ARL,GEN)

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

FJ4#,55

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

FJ4#,55

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

FJ4#,55..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20060

FJ4#,55..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20060

FJ4#,55..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20060

FJ4#,55..RHD

 1
Common parts
90461-06349
90461-08320
90461-10907
91111-40816
94512-00800

(7501-8007)

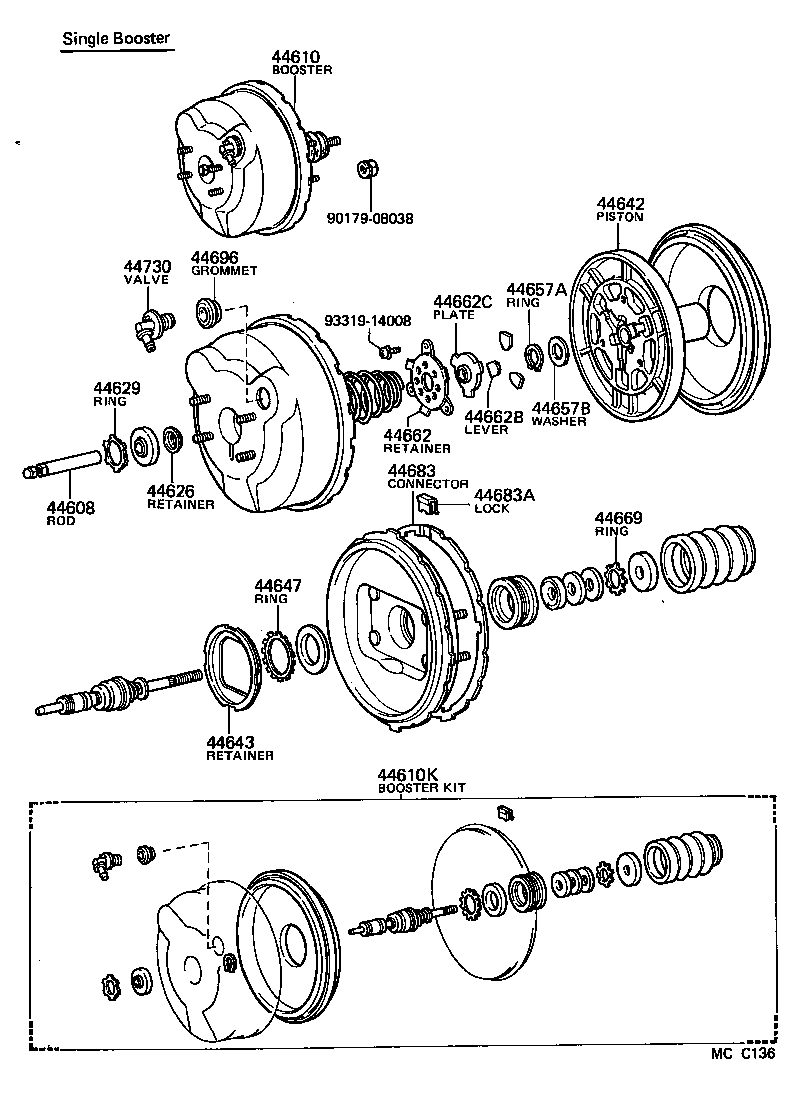

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44657A 44657B 44662 44662B 44662C 44683 44683A 44696 44730 44758 9017908146 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30050

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610K - BOOSTER KIT, BRAKE
04443-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

BJ4#,FJ4#,55,HJ45

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

BJ4#,FJ4#,55,HJ45

 1
44662 - RETAINER, REACTION, NO.1
44662-20100

BJ4#,FJ4#,55,HJ45

 1
44662C - PLATE, REACTION, NO.1
44653-20150

BJ4#,FJ4#,55,HJ45

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

BJ4#,FJ4#,55,HJ45

 1
44683A - LOCK, CONNECTOR
44683-20100

BJ4#,FJ4#,55,HJ45

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22060

BJ4#,FJ4#,55,HJ45

FOR BOOSTER

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20060

FJ4#,55..RHD

 1
Common parts
90179-08146
93319-14008
