FJ43R-UJ (1975)
Toyota Land Cruiser
(8008-8411)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||

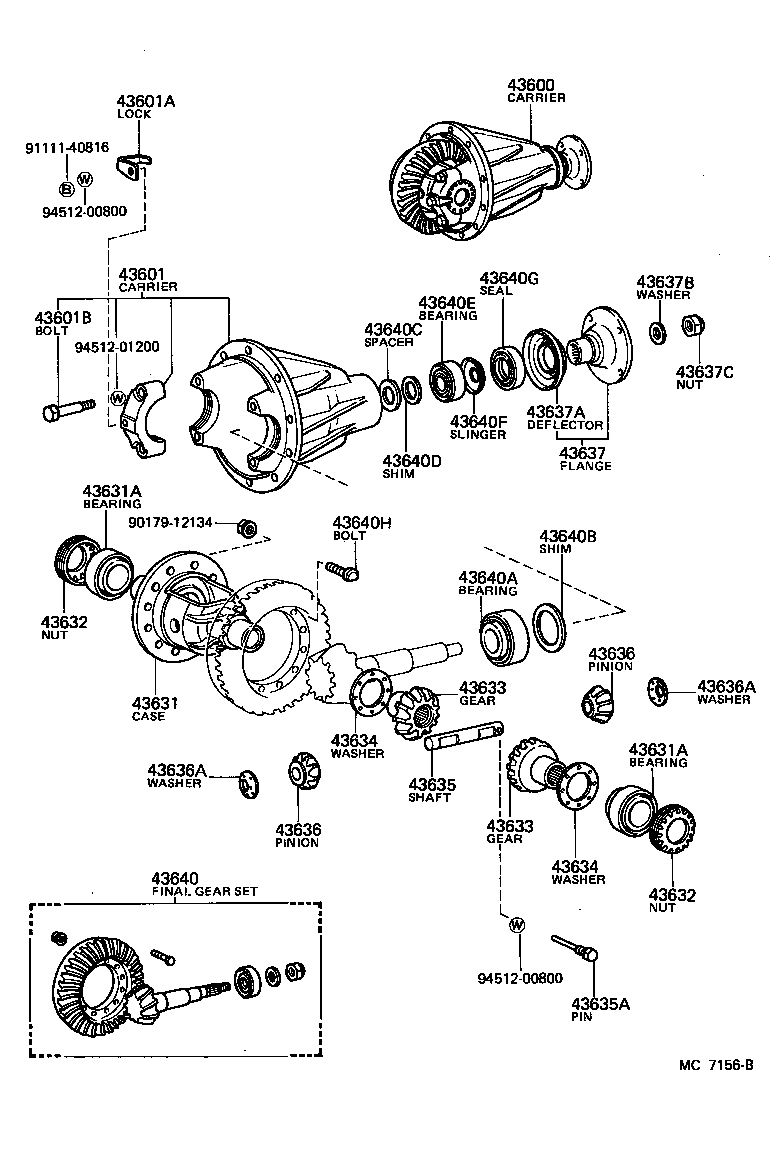

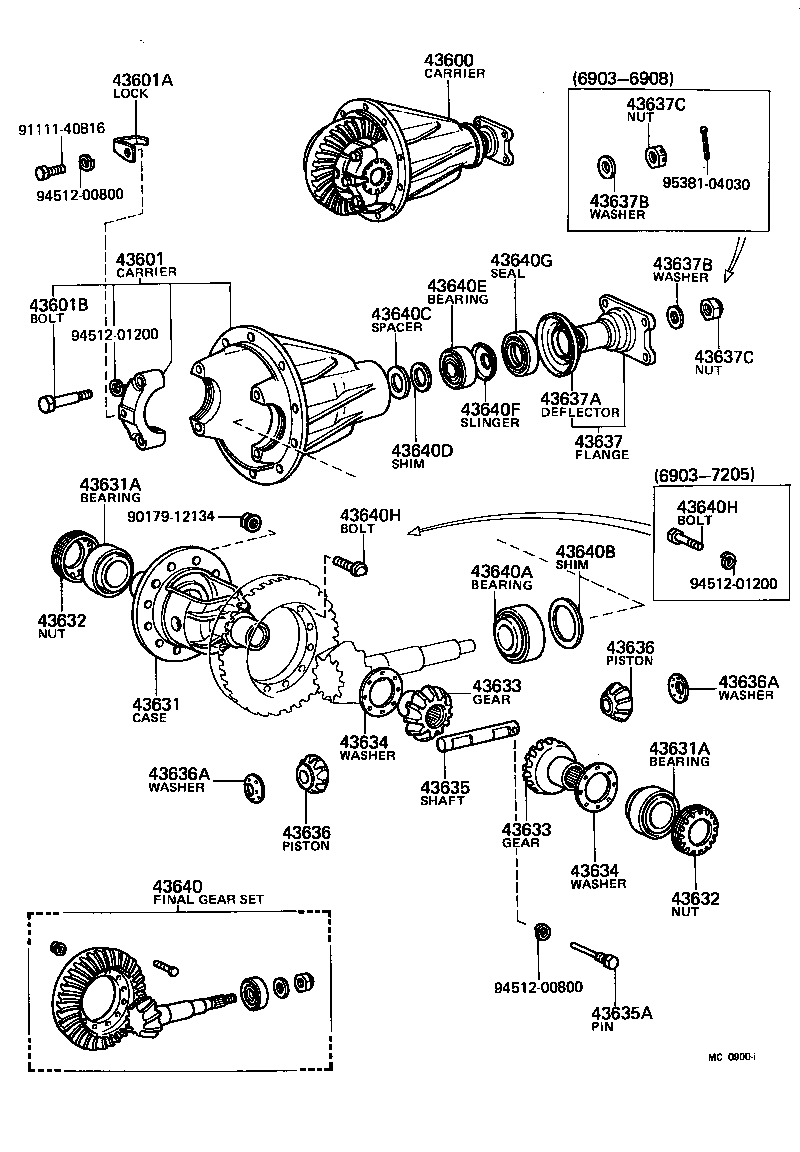

ILLUST NO. 2 OF 2(6903-8007)BJ4#,FJ40,43,45,55,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43600 - CARRIER ASSY, FRONT AXLE | ||||
| 41110-60907 |
FJ40,43,45,55,HJ45 R=37:9=4.111 |
1 | ||
| 41110-60906 |
FJ40,43,45,55 R=37:10=3.700 |
1 | ||
| 41110-60016 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111 |
1 | ||
| 41110-60025 |
FJ4#,55..EUR,GEN R=37:10=3.700 |
1 | ||
| 41110-60025 |
FJ4#,55 R=37:10=3.700 |
1 | ||
| 41110-60026 |
FJ4#,55..EUR,GEN R=37:10=3.700 |
1 | ||
| 41110-60015 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111 |
1 | ||
| 43601 - CARRIER SUB-ASSY, FRONT AXLE | ||||
| 41101-60021 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43601A - LOCK, FRONT AXLE DIFFERENTIAL ADJUST NUT | ||||
| 41316-30010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43601B - BOLT, FRONT AXLE DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ40,43,45,55,HJ45 |
4 | ||
| 43631 - CASE, FRONT AXLE DIFFERENTIAL | ||||
| 41311-36010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90368-45001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90368-45001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43632 - NUT, FRONT AXLE DIFFERENTIAL BEARING ADJUST | ||||
| 41315-30010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43632 - NUT, FRONT AXLE DIFFERENTIAL BEARING ADJUST | ||||
| 41315-30010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ4#,FJ40,43,45,55,HJ45 N=16 |
2 | ||
| 43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ4#,FJ40,43,45,55,HJ45 N=16 |
2 | ||
| 43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST | ||||
| 41361-35010 |
BJ4#,FJ40,43,45,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.00-2.10 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.70-1.80 |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.85-1.95 |
2 | ||
| 43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST | ||||
| 41361-35010 |
BJ4#,FJ40,43,45,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.00-2.10 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.70-1.80 |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.85-1.95 |
2 | ||
| 43635 - SHAFT, FRONT AXLE DIFFERENTIAL PINION | ||||
| 41342-55010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43635A - PIN, FRONT AXLE DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43636 - PINION, FRONT AXLE DIFFERENTIAL | ||||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41341-55010 |
FJ40,43,45,55,HJ45 N=10 |
2 | ||
| 43636 - PINION, FRONT AXLE DIFFERENTIAL | ||||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41341-55010 |
FJ40,43,45,55,HJ45 N=10 |
2 | ||
| 43636A - WASHER, FRONT AXLE DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-35010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43636A - WASHER, FRONT AXLE DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-35010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43637 - FLANGE, FRONT AXLE DRIVE PINION, W/DEFLECTOR | ||||
| 41204-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41251-35902 |
FJ40,43,45,55 |
1 | ||
| 43637A - DEFLECTOR, DUST (FOR FRONT AXLE) | ||||
| 37341-30010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90201-19117 |
FJ40,43,45,55 |
1 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90201-19117 |
FJ40,43,45,55 |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90171-19012 |
FJ40,43,45,55 |
1 | ||
| 90179-20001 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90171-19012 |
FJ40,43,45,55 |
1 | ||
| 90179-20001 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 43640 - FINAL GEAR SET, FRONT AXLE DIFFERENTIAL | ||||
| 41201-60011 |
FJ40,43,45,55 N=37:9 |
1 | ||
| 41201-69049 |
BJ4#,HJ45;FJ4#,55..ARL,GEN N=37:9 |
1 | ||
| 41201-60021 |
FJ40,43,45,55 N=37:10 |
1 | ||
| 41201-69039 |
FJ4#,55..EUR,GEN N=37:10 |
1 | ||
| 41201-69039 |
FJ4#,55 N=37:10 |
1 | ||
| 41201-69095 |
FJ4#,55..EUR,GEN N=37:10 |
1 | ||
| 41201-69105 |
BJ4#,HJ45;FJ4#,55..ARL,GEN N=37:9 |
1 | ||
| 43640A - BEARING, FRONT AXLE DRIVE PINION, FRONT | ||||
| 97619-30308 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43640B - SHIM, FRONT AXLE DRIVE PINION SPACER REAR ADJUST | ||||
| 90564-70101 |
BJ4#,FJ40,43,45,55,HJ45 T=0.25 |
2 | ||
| 90564-70103 |
BJ4#,FJ40,43,45,55,HJ45 T=0.35 |
2 | ||
| 90564-70121 |
BJ4#,FJ40,43,45,55,HJ45 T=0.40 |
2 | ||
| 90564-68005 |
BJ4#,FJ4#,55,HJ45 T=0.45 |
2 | ||
| 90564-70102 |
BJ4#,FJ40,43,45,55,HJ45 T=0.30 |
2 | ||
| 90564-68004 |
BJ4#,FJ4#,55,HJ45 T=0.40 |
2 | ||
| 90564-68001 |
BJ4#,FJ4#,55,HJ45 T=0.25 |
2 | ||
| 90564-68002 |
BJ4#,FJ4#,55,HJ45 T=0.30 |
2 | ||
| 90564-68003 |
BJ4#,FJ4#,55,HJ45 T=0.35 |
2 | ||
| 90564-70104 |
BJ4#,FJ40,43,45,55,HJ45 T=0.45 |
2 | ||
| 43640C - SPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST | ||||
| 90560-30185 |
BJ4#,FJ40,43,45,55,HJ45 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90560-30184 |
BJ4#,FJ40,43,45,55,HJ45 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30187 |
BJ4#,FJ40,43,45,55,HJ45 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30186 |
BJ4#,FJ40,43,45,55,HJ45 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90560-30192 |
BJ4#,FJ40,43,45,55,HJ45 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90560-30190 |
BJ4#,FJ40,43,45,55,HJ45 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30191 |
BJ4#,FJ40,43,45,55,HJ45 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90560-30188 |
BJ4#,FJ40,43,45,55,HJ45 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30199 |
BJ4#,FJ40,43,45,55,HJ45 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 43640D - SHIM, FRONT AXLE DRIVE PINION SPACER FRONT ADJUST | ||||
| 90564-30035 |
BJ4#,FJ40,43,45,55,HJ45 |
4 | ||
| 43640E - BEARING, FRONT AXLE DRIVE PINION, REAR | ||||
| 97619-30306 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43640F - SLINGER, FRONT AXLE DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-38028 |
FJ40,43,45,55,HJ45 |
1 | ||
| 43640H - BOLT, RING GEAR SET | ||||
| 90101-12147 |
FJ40,43,45,55 |
12 | ||
| 43640H - BOLT, RING GEAR SET | ||||
| 90101-12147 |
FJ40,43,45,55 |
12 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 95381-04030 | ||||

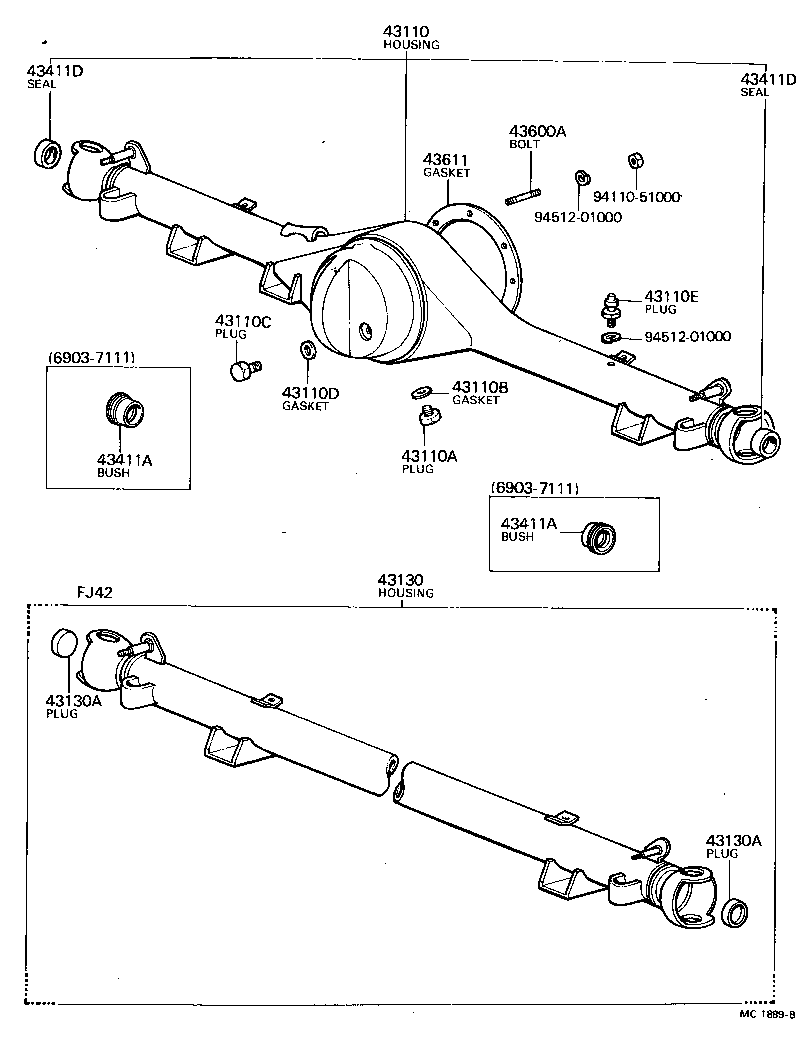

ILLUST NO. 1 OF 2(6903-8007)BJ4#,FJ40,43,45,55,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-60023 |
FJ40,43,45 FOR BALL JOINT TYPE |
1 | ||
| 43110-60030 |
FJ40,43,45 FOR BIRFIELD TYPE |
1 | ||
| 43110-60120 |
FJ4#,HJ45 |
1 | ||
| 43110-60121 |
FJ4#,HJ45 |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 33104-30010 |
FJ40,43,45,55 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18014 |
FJ40,43,45,55 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING) | ||||
| 90930-03019 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 43411A - BUSH, SOLID (FOR FRONT AXLE INNER SHAFT) | ||||
| 90999-70065 |
FJ40,43,45,55 LH. |
1 | ||
| 90999-70064 |
FJ40,43,45,55 RH. |
1 | ||
| 43411A - BUSH, SOLID (FOR FRONT AXLE INNER SHAFT) | ||||
| 90999-70065 |
FJ40,43,45,55 LH. |
1 | ||
| 90999-70064 |
FJ40,43,45,55 RH. |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43600A - BOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING | ||||
| 90116-10103 |
BJ4#,FJ40,43,45,55,HJ45 L=37,S=12 & 25,L=37,S=12&25 |
8 | ||
| 90116-10104 |
BJ4#,FJ40,43,45,55,HJ45 L=50,S=12 & 18,L=50,S=12&18 |
2 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
