FJ43R-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)3F

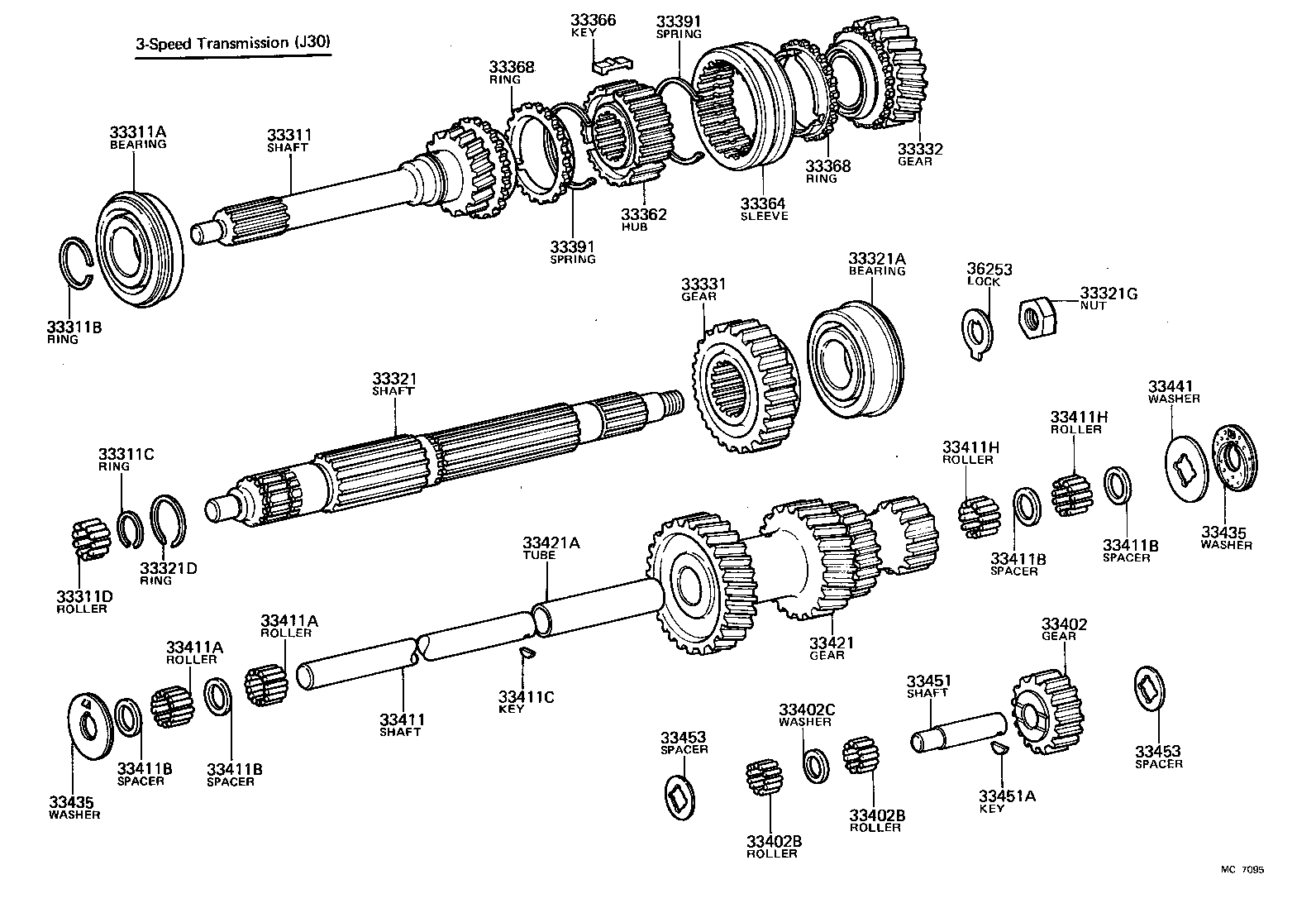

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311C 33311D 33321 33321A 33321D 33321G 33331 33332 33362 33364 33366 33368 33368 33391 33391 33402 33402B 33402B 33402C 33411 33411A 33411A 33411B 33411B 33411B 33411B 33411C 33411H 33411H 33421 33421A 33435 33435 33441 33451 33451A 33453 33453 36253
Part # Description Qty Price

(6903-8007)FJ4#,55

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311C 33311D 33321 33321A 33321D 33321G 33331 33332 33346 33362 33364 33366 33368 33368 33391 33391 33402 33402B 33402B 33402C 33411 33411A 33411A 33411B 33411B 33411B 33411B 33411C 33411H 33411H 33421 33421A 33435 33435 33441 33451 33451A 33453 33453 36253
Part # Description Qty Price
33311 - SHAFT, INPUT
33311-61011

FJ4#,55

N=17,FOR 3-SPEED TRANSMISSION

 1
33311-61013

FJ4#,55..3F

N=17

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-35021

FJ4#,55..3F

 1
90363-35021

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-33010

FJ4#,55

T=2.43-2.57,FOR 3-SPEED T/M

 1
90520-33011

FJ4#,55

T=2.30-2.42,FOR 3-SPEED T/M

 1
90520-33010

FJ4#,55..3F

T=2.43-2.57

 1
90520-33011

FJ4#,55..3F

T=2.30-2.42

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
90521-33006

FJ4#,55..3F

FOR 3-SPEED TRANSMISSION

 1
90521-33006

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33311D - BEARING, INPUT SHAFT
90361-06007

FJ4#,55

FOR 3-SPEED TRANSMISSION

 14
90361-06047

FJ4#,55..3F

 14
33321 - SHAFT, OUTPUT
33321-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33321-60020

FJ4#,55..3F

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
97153-06307

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
97153-06307

FJ4#,55..3F

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-33010

FJ4#,55

T=2.43-2.57,FOR 3-SPEED T/M

 1
90520-33011

FJ4#,55

T=2.30-2.42,FOR 3-SPEED T/M

 1
90520-33132

FJ4#,55..3F

T=2.35-2.40,MARK 12,T=2.35-2.40

 1
90520-33172

FJ4#,55..3F

T=2.25,MARK 5,T=2.25-2.30

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90170-19022

FJ4#,55..3F

 1
90170-19022

FJ4#,55,HJ45

 1
33331 - GEAR, REVERSE
33331-60020

FJ4#,55

N=25

 1
33331-60020

FJ4#,55..3F

N=25

 1
33332 - GEAR, 2ND
33304-61011

FJ4#,55

N=23,3-SPEED TRANSMISSION

 1
33304-61013

FJ4#,55..3F

N=23

 1
33346 - BUSH, 2ND GEAR
90999-73074

FJ4#,55..3F

 1
90999-70017

FJ4#,55

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-35010

FJ4#,55..3F

 1
33362-35010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-36040

FJ4#,55..3F

 1
33363-35010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-35011

FJ4#,55

FOR 3-SPEED TRANSMISSION

 3
33366-35011

FJ4#,55..3F

 3
33368 - RING, SYNCHRONIZER, NO.2
33368-35011

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33368-35012

FJ4#,55..3F

 2
33368 - RING, SYNCHRONIZER, NO.2
33368-35011

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33368-35012

FJ4#,55..3F

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-35010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33371-35010

FJ4#,55..3F

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-35010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33371-35010

FJ4#,55..3F

 2
33402 - GEAR SUB-ASSY, REVERSE IDLER
33461-60020

FJ4#,55..3F

N=13

 1
33461-60020

FJ4#,55

N=13,FOR 3-SPEED TRANSMISSION

 1
33402B - ROLLER (FOR REVERSE IDLER)
90361-03023

FJ4#,55..3F

 56
90361-03023

FJ4#,55

 56
33402B - ROLLER (FOR REVERSE IDLER)
90361-03023

FJ4#,55..3F

 56
90361-03023

FJ4#,55

 56
33402C - WASHER, PLATE (FOR REVERSE IDLER)
90201-21055

FJ4#,55..3F

 1
90201-21055

FJ4#,55

 1
33411 - COUNTERSHAFT
33411-60020

FJ4#,55..3F

 1
33411-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90361-03017

FJ4#,55..3F

 48
90361-03017

FJ4#,55

FOR 3-SPEED TRANSMISSION

 48
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90361-03017

FJ4#,55..3F

 48
90361-03017

FJ4#,55

FOR 3-SPEED TRANSMISSION

 48
33411B - SPACER(FOR COUNTER GEAR BEARING)
90201-20050

FJ4#,55

FOR 3-SPEED TRANSMISSION

 4
90201-20050

FJ4#,55..3F

 4
33411B - SPACER(FOR COUNTER GEAR BEARING)
90201-20050

FJ4#,55

FOR 3-SPEED TRANSMISSION

 4
90201-20050

FJ4#,55..3F

 4
33411B - SPACER(FOR COUNTER GEAR BEARING)
90201-20050

FJ4#,55

FOR 3-SPEED TRANSMISSION

 4
90201-20050

FJ4#,55..3F

 4
33411B - SPACER(FOR COUNTER GEAR BEARING)
90201-20050

FJ4#,55

FOR 3-SPEED TRANSMISSION

 4
90201-20050

FJ4#,55..3F

 4
33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
90280-03005

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
90280-03005

FJ4#,55..3F

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90361-03017

FJ4#,55

FOR 3-SPEED TRANSMISSION

 48
90361-03017

FJ4#,55..3F

 48
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90361-03017

FJ4#,55

FOR 3-SPEED TRANSMISSION

 48
90361-03017

FJ4#,55..3F

 48
33421 - GEAR, COUNTER
33421-60020

FJ4#,55

N=30,24,16,12,FOR 3-SPEED T/M

 1
33421-60020

FJ4#,55..3F

N=30,24,16,12

 1
33421A - TUBE(FOR COUNTER GEAR)
90440-24006

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
90440-24006

FJ4#,55..3F

 1
33435 - WASHER, COUNTER GEAR CASE SIDE THRUST
33435-61010

FJ4#,55

 2
33435-61010

FJ4#,55..3F

 2
33435 - WASHER, COUNTER GEAR CASE SIDE THRUST
33435-61010

FJ4#,55

 2
33435-61010

FJ4#,55..3F

 2
33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1
33441-61010

FJ4#,55

T=1.45-1.50

 1
33442-61010

FJ4#,55

T=1.50-1.55

 1
33443-61010

FJ4#,55

T=1.55-1.60

 1
33442-61010

FJ4#,55..3F

T=1.50-1.55

 1
33443-61010

FJ4#,55..3F

T=1.55-1.60

 1
33441-61010

FJ4#,55..3F

T=1.45-1.50

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-60010

FJ4#,55..3F

 1
33451-60010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03005

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
90280-03005

FJ4#,55..3F

 1
33453 - SPACER, REVERSE IDLER GEAR SHAFT
33462-60010

FJ4#,55

 2
33462-60010

FJ4#,55..3F

 2
33453 - SPACER, REVERSE IDLER GEAR SHAFT
33462-60010

FJ4#,55

 2
33462-60010

FJ4#,55..3F

 2
36253 - LOCK, INPUT SHAFT NUT
36253-60010

FJ4#,55,HJ45

 1
36253-60010

FJ4#,55..3F

 1
