FJ43R-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

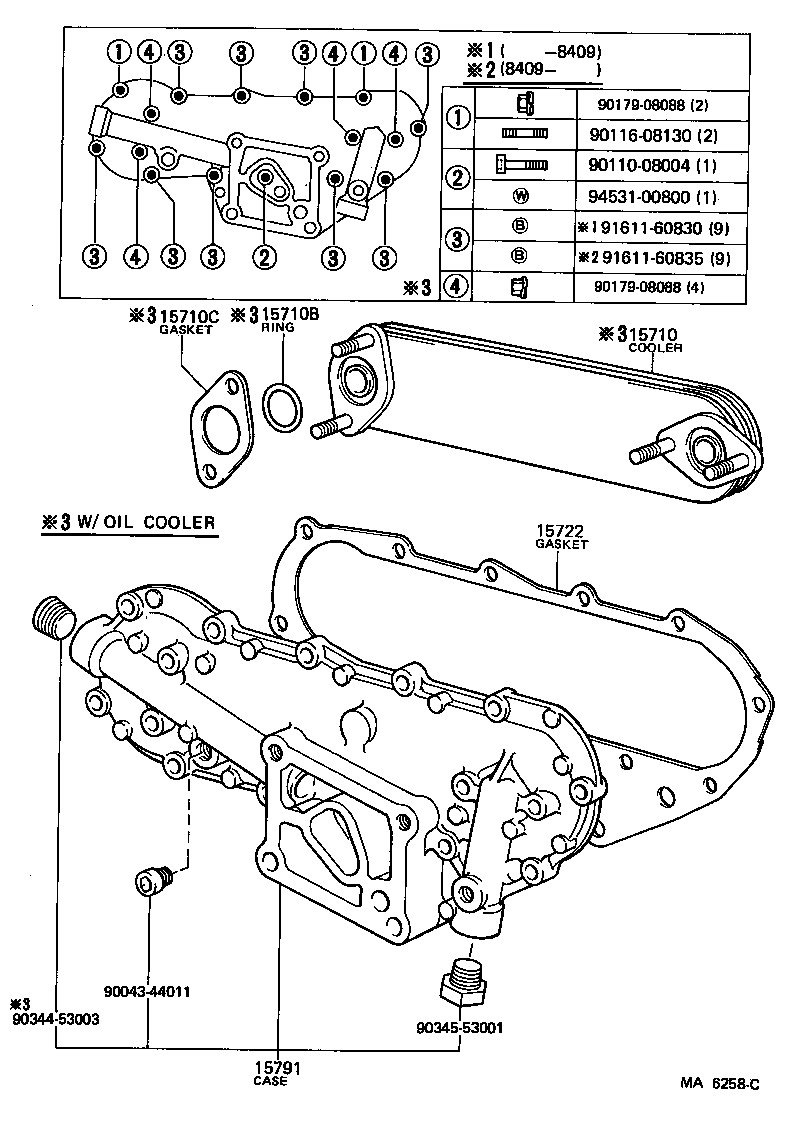

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9004344011 9011008004 9011608130 9017908088 9017908088 9034453003 9034553001 9161160830 9161160835 9453100800
Part # Description Qty Price
Common parts
90043-44011
90110-08004
90116-08130
90179-08088
90344-53003
90345-53001
91611-60830
91611-60835
94531-00800

(7801-8007)H

Click highlighted areas on diagram

diagram 15710 15710A 15710B 15710C 15771E 15771F 15771G 15777 15777A 15777B 15777C 15777D 15777D 15777D 15777D 15777D 15777D 15777E
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-61010

2F..FJ4#,55

 1
15710-61010

2F..FJ4#,55..ARL,GEN

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18084

2F..FJ4#,55

W/SWITCH HOLE

 1
90401-18083

2F..FJ4#,55..ARL,GEN

 1
90401-18083

2F..FJ4#,55

 1
90401-18083

2F..FJ4#,55..ARL,GEN

 2
90401-18084

2F..FJ4#,55..ARL,GEN

W/SWITCH HOLE

 1
15710B - RING, O(FOR OIL COOLER)
90301-21176

2F..FJ4#,55..ARL,GEN

 2
90301-21176

2F..FJ4#,55

 2
15710C - GASKET(FOR OIL COOLER)
90430-18012

2F..FJ4#,55..ARL,GEN

 2
90430-18012

2F..FJ4#,55

 2
15777 - HOSE, OIL COOLER
15779-61010

2F..FJ4#,55..ARL,GEN

 1
15779-61010

2F..FJ4#,55

 1
15777A - HOSE, OIL COOLER
15778-61010

2F..FJ4#,55..ARL,GEN

 1
15778-61010

2F..FJ4#,55

 1
15777B - PIPE, OIL COOLER
15707-61010

2F..FJ4#,55

 1
15707-61010

2F..FJ4#,55..ARL,GEN

 1
15777C - HOSE, OIL COOLER
15777-61010

2F..FJ4#,55

 1
15777-61010

2F..FJ4#,55..ARL,GEN

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6

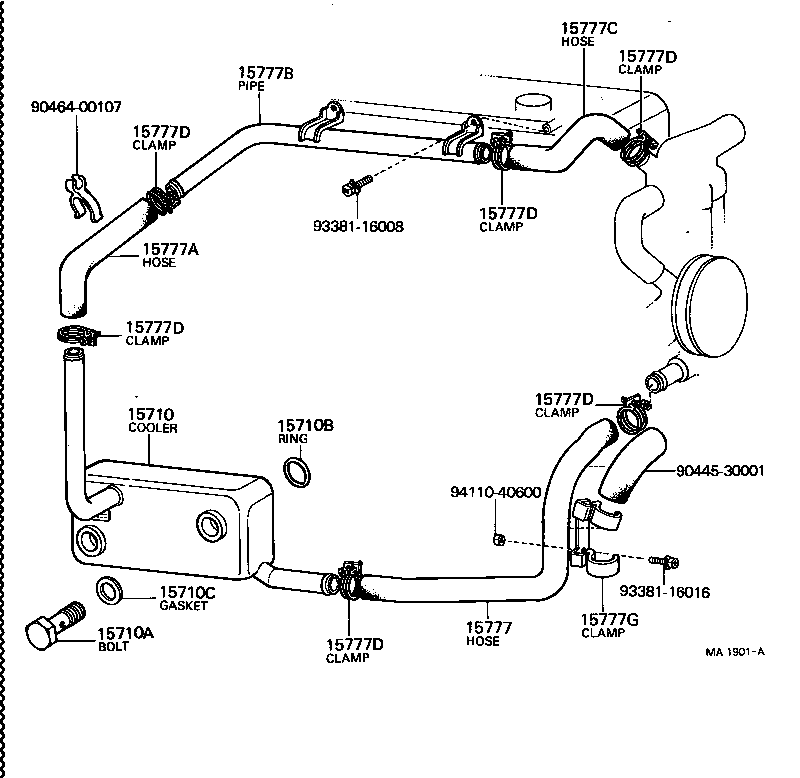

(7509-8007)2F

Click highlighted areas on diagram

diagram 15710 15710A 15710B 15710C 15777 15777A 15777B 15777C 15777D 15777D 15777D 15777D 15777D 15777D 15777G 9044530001 9046400107 9338116008 9338116016 9411040600
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-61010

2F..FJ4#,55

 1
15710-61010

2F..FJ4#,55..ARL,GEN

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18084

2F..FJ4#,55

W/SWITCH HOLE

 1
90401-18083

2F..FJ4#,55..ARL,GEN

 1
90401-18083

2F..FJ4#,55

 1
90401-18083

2F..FJ4#,55..ARL,GEN

 2
90401-18084

2F..FJ4#,55..ARL,GEN

W/SWITCH HOLE

 1
15710B - RING, O(FOR OIL COOLER)
90301-21176

2F..FJ4#,55..ARL,GEN

 2
90301-21176

2F..FJ4#,55

 2
15710C - GASKET(FOR OIL COOLER)
90430-18012

2F..FJ4#,55..ARL,GEN

 2
90430-18012

2F..FJ4#,55

 2
15777 - HOSE, OIL COOLER
15779-61010

2F..FJ4#,55..ARL,GEN

 1
15779-61010

2F..FJ4#,55

 1
15777A - HOSE, OIL COOLER
15778-61010

2F..FJ4#,55..ARL,GEN

 1
15778-61010

2F..FJ4#,55

 1
15777B - PIPE, OIL COOLER
15707-61010

2F..FJ4#,55

 1
15707-61010

2F..FJ4#,55..ARL,GEN

 1
15777C - HOSE, OIL COOLER
15777-61010

2F..FJ4#,55

 1
15777-61010

2F..FJ4#,55..ARL,GEN

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96111-10270

2F..FJ4#,55..ARL,GEN

 6
96111-10270

2F..FJ4#,55

 6
15777G - CLAMP OR CRIP, HOSE
90461-10139

2F..FJ4#,55..ARL,GEN

 1
90461-10139

2F..FJ4#,55

 1
Common parts
90445-30001
90464-00107
93381-16008
93381-16016
94110-40600
