FJ43R-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ4#,55

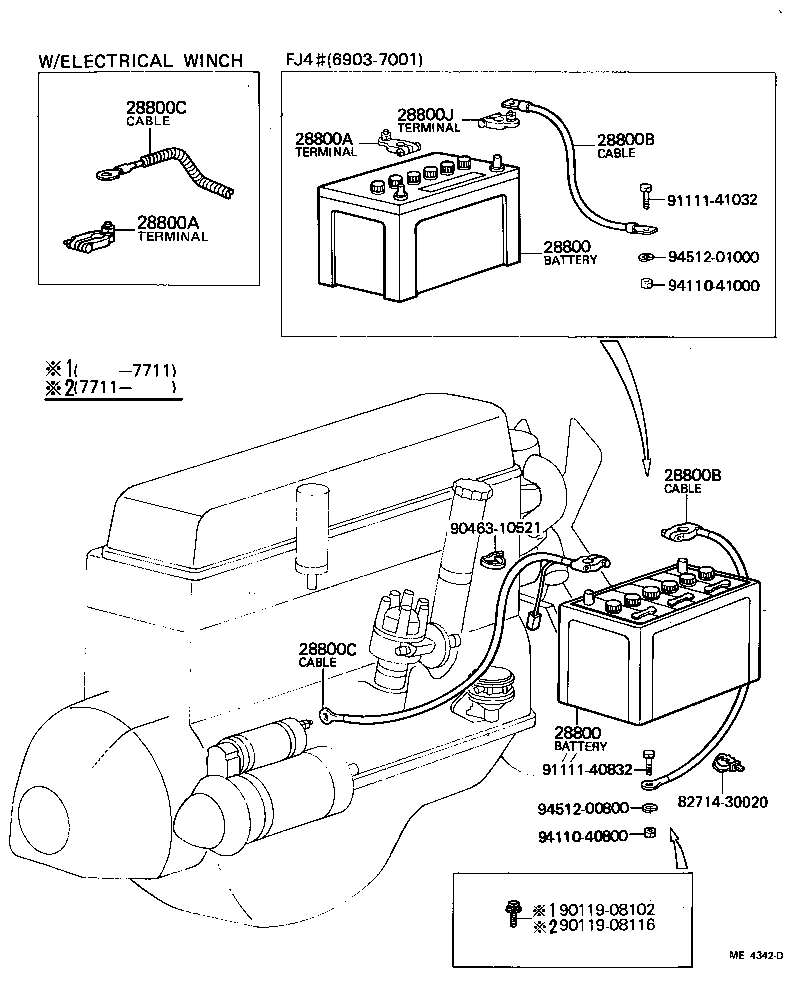

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800J 8271430020 9011908102 9011908116 9046310521 9111140832 9111141032 9411040800 9411041000 9451200800 9451201000
Part # Description Qty Price
28800 - BATTERY
28800-30081

F..FJ4#,55

N50

 1
28800-46011

F,H,2F..FJ4#,55,HJ45

75D31R,N70Z

 1
28800-46011

B,H,2F..BJ4#,FJ4#,55,HJ45

75D31R,N70Z

 1
28800-46012

2F..FJ4#,55

75D31R,N70Z

 1
28800 - BATTERY
28800-30081

F..FJ4#,55

N50

 1
28800-46011

F,H,2F..FJ4#,55,HJ45

75D31R,N70Z

 1
28800-46011

B,H,2F..BJ4#,FJ4#,55,HJ45

75D31R,N70Z

 1
28800-46012

2F..FJ4#,55

75D31R,N70Z

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05001

F..FJ4#

 1
99142-87175

B,H,2F..BJ4#,FJ4#,HJ45

FOR ELECTRICAL WINCH

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05001

F..FJ4#

 1
99142-87175

B,H,2F..BJ4#,FJ4#,HJ45

FOR ELECTRICAL WINCH

 1
28800B - CABLE, BATTERY TO GROUND
90982-02014

F..FJ4#

 1
90982-02065

2F..FJ4#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02014

F..FJ4#

 1
90982-02065

2F..FJ4#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01012

F..FJ4#

 1
82046-90302

2F..FJ4#

FOR ELECTRICAL WINCH

 1
90982-01291

2F..FJ4#

W/COOLER

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01012

F..FJ4#

 1
82046-90302

2F..FJ4#

FOR ELECTRICAL WINCH

 1
90982-01291

2F..FJ4#

W/COOLER

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06001

F..FJ4#

 1
Common parts
82714-30020
90119-08102
90119-08116
90463-10521
91111-40832
91111-41032
94110-40800
94110-41000
94512-00800
94512-01000
