FJ43R-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

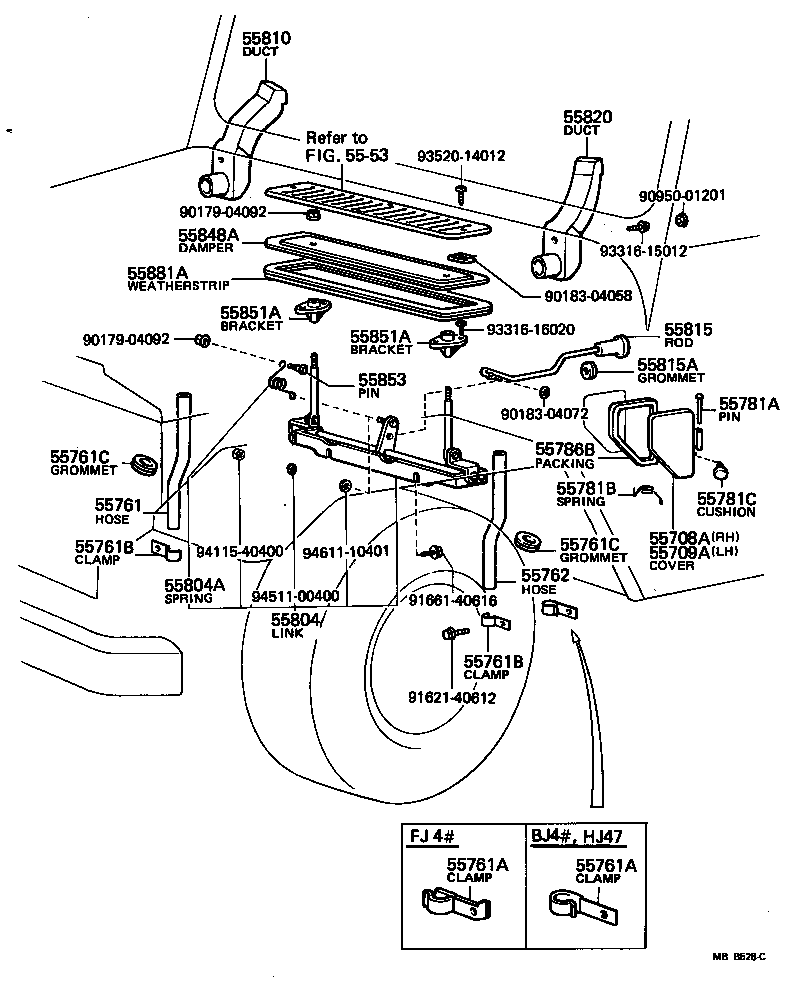

Click highlighted areas on diagram

diagram 5553 55708A 55709A 55761 55761A 55761A 55761B 55761B 55761C 55761C 55762 55781A 55781B 55781C 55786B 55804 55804A 55810 55815 55815A 55820 55848A 55851A 55851A 55853 55881A 9017904092 9017904092 9018304058 9018304072 9095001201 9162140612 9166140616 9331615012 9331616020 9352014012 9411540400 9451100400 9461110401
Part # Description Qty Price
55708A - COVER SUB-ASSY, COWL SIDE VENTILATOR, RH
55708-60011

BJ4#,FJ4#,HJ47

 1
55709A - COVER SUB-ASSY, COWL SIDE VENTILATOR, LH
55709-60011

BJ4#,FJ4#,HJ47

 1
55761 - HOSE, COWL VENTILATOR DRAIN, RH
55761-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55761A - CLAMP, NO.1(FOR COWL VENTILATOR DRAIN HOSE)
90461-10122

FJ4#,HJ47..EUR,GEN

 1
55761A - CLAMP, NO.1(FOR COWL VENTILATOR DRAIN HOSE)
90461-10122

FJ4#,HJ47..EUR,GEN

 1
55761B - CLAMP, NO.2(FOR COWL VENTILATOR DRAIN HOSE)
90461-10043

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55761B - CLAMP, NO.2(FOR COWL VENTILATOR DRAIN HOSE)
90461-10043

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55761C - GROMMET(FOR COWL VENTILATOR DRAIN HOSE)
90480-36481

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55761C - GROMMET(FOR COWL VENTILATOR DRAIN HOSE)
90480-36481

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55762 - HOSE, COWL VENTILATOR DRAIN, LH
55762-90301

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55781A - PIN(FOR COWL SIDE VENTILATOR COVER)
90241-05002

BJ4#,FJ4#,HJ47

 1
55781B - SPRING(FOR COWL SIDE VENTILATOR COVER)
90508-16028

BJ4#,FJ4#,HJ47

RH

 1
90508-16029

BJ4#,FJ4#,HJ47

LH

 1
55781C - CUSHION(FOR COWL SIDE VENTILATOR COVER)
90541-06008

BJ4#,FJ4#,HJ47

 1
55786B - PACKING, COWL SIDE VENTILATOR COVER
55786-90301

BJ4#,FJ4#,HJ47

 1
55804 - LINK SUB-ASSY, COWL VENTILATOR DAMPER
55802-90300

BJ4#,FJ4#,HJ47..(3F,4F)..(EUR,GEN)

 1
55804A - SPRING, TORSION(FOR COWL VENTILATOR DAMPER LINK)
90508-18084

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55815 - ROD, COWL VENTILATOR CONTROL
55804-90301

BJ4#,FJ4#,HJ47..(3F,4F)..(EUR,GEN)

 1
55804-90801

BJ4#,FJ4#,HJ47..RHD..GEN

 1
55815A - GROMMET(FOR COWL VENTILATOR CONTROL ROD)
90480-12119

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55848A - DAMPER, COWL VENTILATOR
55848-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55851A - BRACKET, COWL VENTILATOR DAMPER
55851-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55851A - BRACKET, COWL VENTILATOR DAMPER
55851-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 2
55853 - PIN,COWL VENTILATOR DAMPER SPRING
55853-60011

BJ4#,FJ4#,HJ47..EUR,GEN

 1
55881A - WEATHERSTRIP, COWL VENTILATOR DAMPER
55881-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 1
Common parts
90179-04092
90183-04058
90183-04072
90950-01201
91621-40612
91661-40616
93316-15012
93316-16020
93520-14012
94115-40400
94511-00400
94611-10401
Linked diagrams
5553
