FJ43R-KCJ (1980)
Toyota Land Cruiser
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,HJ47 L=37,S=12 & 25,CARIER,L=37,S=12 & 16 |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,HJ47..EUR,GEN L=32,S=12 & 20,COVER,COVER,L=32,S=12 & 15 |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,HJ47 L=50,S=12 & 18,CARIER,L=50,S=12 & 18 |
2 | ||

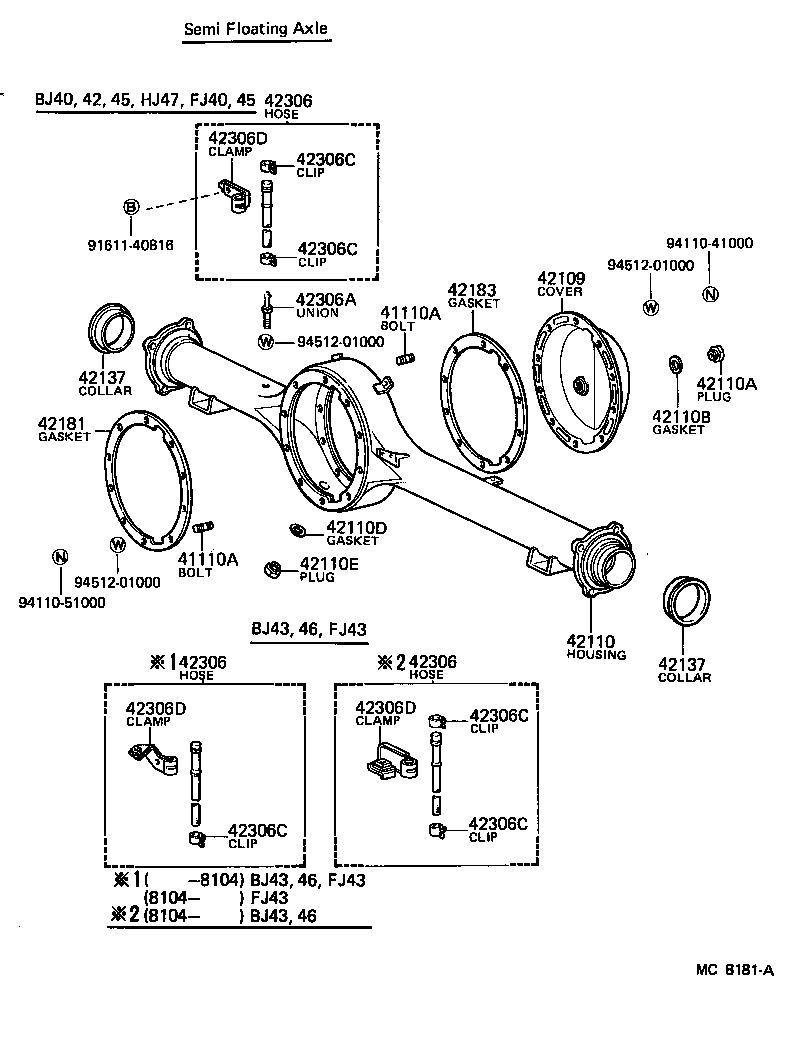

| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60025 |
FJ40,43..EUR,GEN SEMI FLOATING AXLE |
1 | ||
| 42110-60052 |
BJ40,42,43,46..EUR,GEN SEMI FLOATING AXLE |
1 | ||
| 42110-60073 |
FJ40,43 FULL FLOATING AXLE |
1 | ||
| 42110-60093 |
BJ40,42,43,46 FULL FLOATING AXLE |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
(8008-8411)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60026 |
FJ4#..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60016 |
BJ4#,FJ43,HJ47;FJ40,45..ARL,GEN *AXC=K082,*FGR=37:9,*AXC=K082,*FGR=37:9 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ4#,HJ47 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69095 |
FJ4#..EUR,GEN *AXC=K052,K055,*FGR=37:10 |
1 | ||
| 41201-69105 |
BJ4#,FJ43,HJ47;FJ40,45..ARL,GEN *FGR=37:9,*AXC=K082,K085,*FGR=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ4#,FJ4#,HJ47..3F,4F |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ4#,FJ4#,HJ47..3F,4F |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30191 |
BJ4#,FJ4#,HJ47 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90560-30187 |
BJ4#,FJ4#,HJ47 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30184 |
BJ4#,FJ4#,HJ47 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30188 |
BJ4#,FJ4#,HJ47 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30190 |
BJ4#,FJ4#,HJ47 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30192 |
BJ4#,FJ4#,HJ47 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90560-30199 |
BJ4#,FJ4#,HJ47 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30186 |
BJ4#,FJ4#,HJ47 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90560-30185 |
BJ4#,FJ4#,HJ47 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ4#,FJ4#,HJ47 T=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-68004 |
BJ4#,FJ4#,HJ47 T=0.40,T=0.40 |
2 | ||
| 90564-68001 |
BJ4#,FJ4#,HJ47 T=0.25,T=0.25 |
2 | ||
| 90564-68003 |
BJ4#,FJ4#,HJ47 T=0.35,T=0.35 |
2 | ||
| 90564-68005 |
BJ4#,FJ4#,HJ47 T=0.45,T=0.45 |
2 | ||
| 90564-68002 |
BJ4#,FJ4#,HJ47 T=0.30,T=0.30 |
2 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ4#,FJ4#,HJ47 |
12 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-55010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41344-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN H=29.8 |
1 | ||
| 41347-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN H=29.0 |
1 | ||
| 41345-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN H=30.2 |
1 | ||
| 41346-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN H=30.6 |
1 | ||
| 41348-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN H=29.4 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60040 |
BJ4#,FJ4#,HJ47 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,HJ47 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60010 |
BJ4#,FJ4#,HJ47 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,HJ47 T=1.90,T=1.85-1.95 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60040 |
BJ4#,FJ4#,HJ47 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,HJ47 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60010 |
BJ4#,FJ4#,HJ47 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,HJ47 T=1.90,T=1.85-1.95 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
(8008- )EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,HJ47 L=37,S=12 & 25,CARIER,L=37,S=12 & 16 |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,HJ47..EUR,GEN L=32,S=12 & 20,COVER,COVER,L=32,S=12 & 15 |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,HJ47 L=50,S=12 & 18,CARIER,L=50,S=12 & 18 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,HJ47 L=37,S=12 & 25,CARIER,L=37,S=12 & 16 |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,HJ47..EUR,GEN L=32,S=12 & 20,COVER,COVER,L=32,S=12 & 15 |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,HJ47 L=50,S=12 & 18,CARIER,L=50,S=12 & 18 |
2 | ||
| 42109 - COVER SUB-ASSY, REAR AXLE HOUSING | ||||
| 42109-60050 |
BJ40,42,43,46,FJ40,43..EUR,GEN |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60025 |
FJ40,43..EUR,GEN SEMI FLOATING AXLE |
1 | ||
| 42110-60052 |
BJ40,42,43,46..EUR,GEN SEMI FLOATING AXLE |
1 | ||
| 42110-60073 |
FJ40,43 FULL FLOATING AXLE |
1 | ||
| 42110-60093 |
BJ40,42,43,46 FULL FLOATING AXLE |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42137 - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-55010 |
BJ4#,FJ4#,HJ47..EUR,GEN |
2 | ||
| 42137 - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-55010 |
BJ4#,FJ4#,HJ47..EUR,GEN |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42183 - GASKET, REAR AXLE HOUSING COVER | ||||
| 42183-35010 |
BJ4#,FJ4#,HJ47..EUR,GEN |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60030 |
FJ43 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10388 |
BJ43,46,FJ43 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
