FJ43R-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F

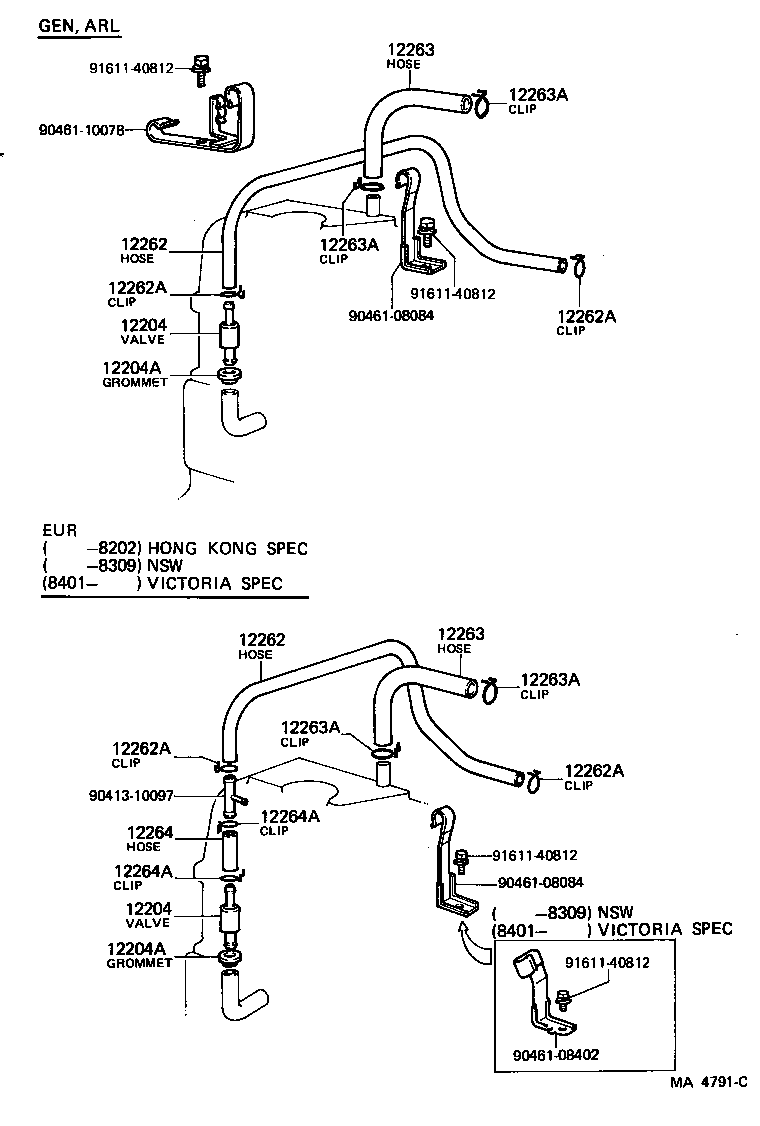

Click highlighted areas on diagram

diagram 12204 12204 12204A 12204A 12262 12262 12262A 12262A 12262A 12262A 12263 12263 12263A 12263A 12263A 12263A 12264 12264A 12264A 9041310097 9046108084 9046108084 9046108402 9046110078 9161140812 9161140812 9161140812 9161140812
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-61010

2F..FJ4#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-61010

2F..FJ4#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

2F..FJ4#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

2F..FJ4#

 1
12262 - HOSE, VENTILATION, NO.2
12261-61020

2F..FJ4#

 1
12262 - HOSE, VENTILATION, NO.2
12261-61020

2F..FJ4#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18028

2F..FJ4#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18028

2F..FJ4#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18028

2F..FJ4#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18028

2F..FJ4#

 2
12263 - HOSE, VENTILATION, NO.3
90445-24004

2F..FJ4#..ARL,GEN

 1
12263 - HOSE, VENTILATION, NO.3
90445-24004

2F..FJ4#..ARL,GEN

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-24038

2F..FJ4#

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-24038

2F..FJ4#

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-24038

2F..FJ4#

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-24038

2F..FJ4#

 2
Common parts
90413-10097
90461-08084
90461-08402
90461-10078
91611-40812

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 12251 12251 9017906070 9165140625
Part # Description Qty Price
Common parts
90179-06070
91651-40625
