FJ43R-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

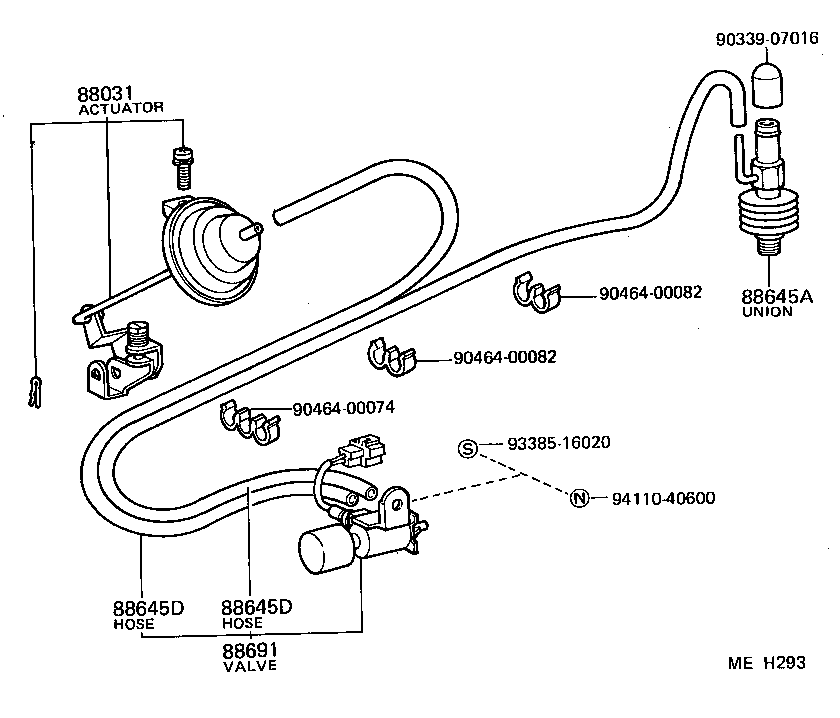

Click highlighted areas on diagram

diagram 88031 88645A 88645D 88645D 88691 9033907016 9046400074 9046400082 9046400082 9338516020 9411040600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-60010

FJ4#..ARL,GEN

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51038

FJ4#..ARL,GEN

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

FJ4#..ARL,GEN

*H,L=850,MARK=#0

 1
95411-19960

FJ4#..ARL,GEN

*H,L=480,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

FJ4#..ARL,GEN

*H,L=850,MARK=#0

 1
95411-19960

FJ4#..ARL,GEN

*H,L=480,MARK=#*

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-60010

FJ4#..ARL,GEN

 1
Common parts
90339-07016
90464-00074
90464-00082
93385-16020
94110-40600
