FJ43L-UCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ4#..LHD

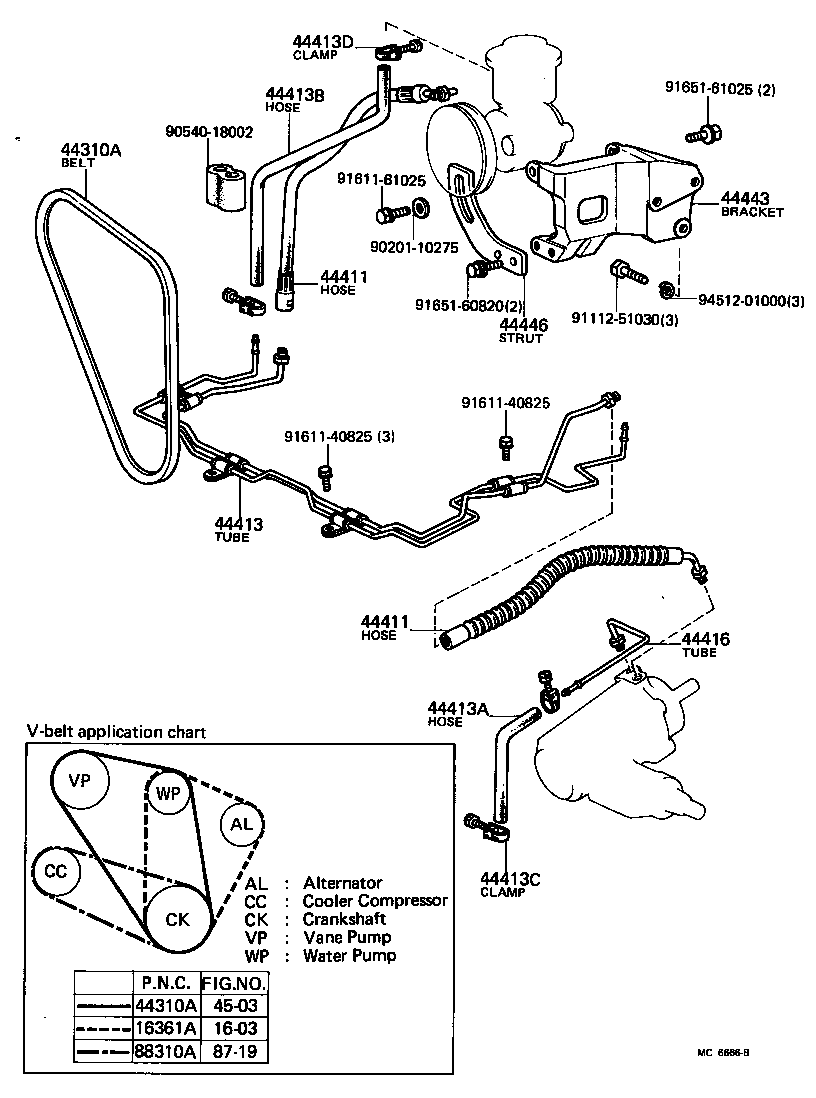

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44411 44411 44413 44413A 44413B 44413C 44413D 44416 44443 44446 4503 8719 88310A 9020110275 9054018002 9111251030 9161140825 9161140825 9161161025 9165160820 9165161025 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-11060

2F..FJ4#..ARL,GEN

DIRECT FAN

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02089

FJ4#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02089

FJ4#

 1
44411 - HOSE, PRESSURE FEED
44411-60090

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

GEAR SIDE

 1
44411-60080

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

PUMP SIDE

 1
44411 - HOSE, PRESSURE FEED
44411-60090

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

GEAR SIDE

 1
44411-60080

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

PUMP SIDE

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60021

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18104

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18086

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60021

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
44443 - BRACKET, PUMP
44443-60010

FJ4#

 1
44446 - STRUT, ADJUSTING
44446-60010

FJ4#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-01250

FJ4#..(3F,4F)..(ARL,GEN)

L=1250,EXCL/NEW SOUTH WALES

 1
Common parts
90201-10275
90540-18002
91112-51030
91611-40825
91611-61025
91651-60820
91651-61025
94512-01000
Linked diagrams
1603
4503
8719
