Toyota Land cruiser FJ43 ALTERNATOR

FJ43L-UCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

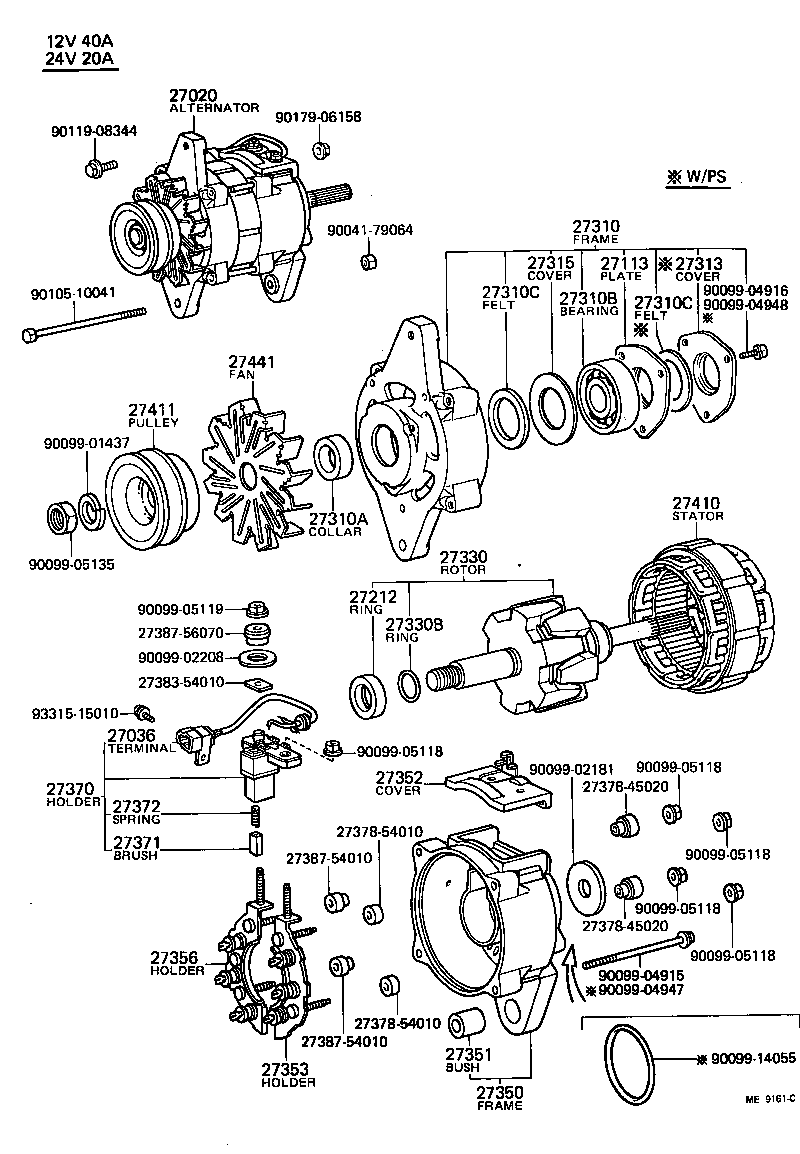

(8008-8204)B,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90041-79064
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-14055
90105-10041
90119-08344
90179-06158
93315-15010

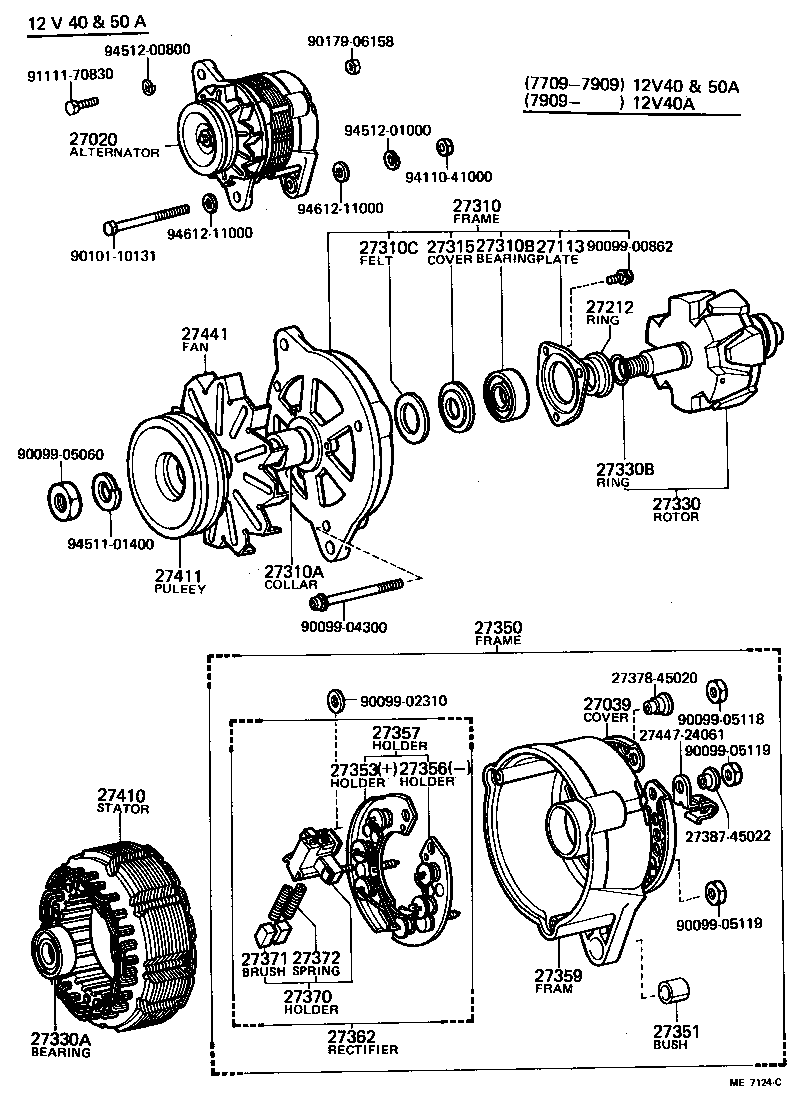

(7709-8007)2F

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-61030	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27020-60032	F..FJ4#,55 12V 40A	03/1969 - 01/1971	1
27020-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27020-61031	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27020-60072	2F..FJ4#,55 12V 40A	08/1975 - 09/1977	1
27020-60073	2F..FJ4#,55 12V 40A	09/1977 - 02/1980	1
27020-61032	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27020-61150	2F..FJ4#,55 12V 40A,12V 40A	02/1980 - 07/1980	1
27020-61033	2F..FJ4#,55 12V 50A,12V 50A	09/1979 - 07/1980	1
27039 - COVER, ALTERNATOR REAR END
27039-26020	2F..FJ4#,55 12V 40A	09/1979 - 07/1980	1
27039-15010	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27113-20010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-01083	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27412-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27212-39050	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27212-39050	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-26101	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27310-40041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310-34030	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27412-31040	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
90099-19075	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
90099-19032	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10114	2F..FJ4#,55 12V 50A	09/1977 - 12/1978	1
90099-10114	2F..FJ4#,55 6203ZZ	12/1978 - 07/1980	1
90099-10109	2F..FJ4#,55 12V 40A	09/1977 - 12/1978	1
90099-10013	F,2F..FJ4#,55 6203Z	03/1969 - 09/1977	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F,2F..FJ4#,55	03/1969 - 07/1980	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011	F,2F..FJ4#,55	03/1969 - 07/1980	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43012	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27330-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27330-33010	F,2F..FJ4#,55 12V 40A	03/1969 - 07/1980	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10012	F..FJ4#,55 12V 55A,6202Z	03/1969 - 01/1975	1
97110-06201	F,2F..FJ4#,55 12V 40 & 50A,6201Z	03/1969 - 09/1977	1
90099-10103	2F..FJ4#,55 12V 40A,6201ZZ	09/1977 - 12/1978	1
90099-10111	2F..FJ4#,55 12V 50A,6201ZZ	09/1977 - 12/1978	1
90099-10111	2F..FJ4#,55 6201ZZ	12/1978 - 07/1980	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
90099-07048	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27350-60041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27350-24080	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27350-24062	2F..FJ4#,55 12V 40A	08/1975 - 09/1977	1
27350-13020	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27350-24061	2F..FJ4#,55 12V 40A	01/1975 - 08/1975	1
27350-24081	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27350-24063	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27351-60012	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27351-38051	2F..FJ4#,55 12V 40 & 50A	09/1977 - 07/1980	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27353-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27353-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27353-26020	2F..FJ4#,55 12V 40A	01/1975 - 07/1980	1
27353-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27356-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356-45080	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27356-31012	F..FJ4#,55	03/1969 - 09/1972	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-26020	2F..FJ4#,55 12V 40A	01/1975 - 09/1977	1
27357-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27357-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-33011	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27359-41041	2F..FJ4#,55 12V 40 & 50A	08/1975 - 09/1977	1
27359-24100	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27359-36061	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27359-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27359-60014	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-26051	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27362-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27362-34050	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-26020	2F..FJ4#,55 12V 40 & 50A	01/1975 - 08/1975	1
27370-45061	2F..FJ4#,55 12V 40 & 50A	08/1975 - 09/1977	1
27370-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-44070	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A,24V 15 & 20A	09/1979 - 07/1980	2
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-40010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	2
90099-17114	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27372-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A ,24V 15 & 20A	09/1979 - 07/1980	2
27372-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410-33010	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27410-44040	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27410-26030	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27410-34050	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27410-41080	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27411 - PULLEY, ALTERNATOR
27411-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411-60032	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27441 - FAN, ALTERNATOR
27441-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441-31011	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
Common parts
27378-45020
27387-45022
27447-24061
90099-00862
90099-02310
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90179-06158
91111-70830
94110-41000
94511-01400
94512-00800
94512-01000
94612-11000

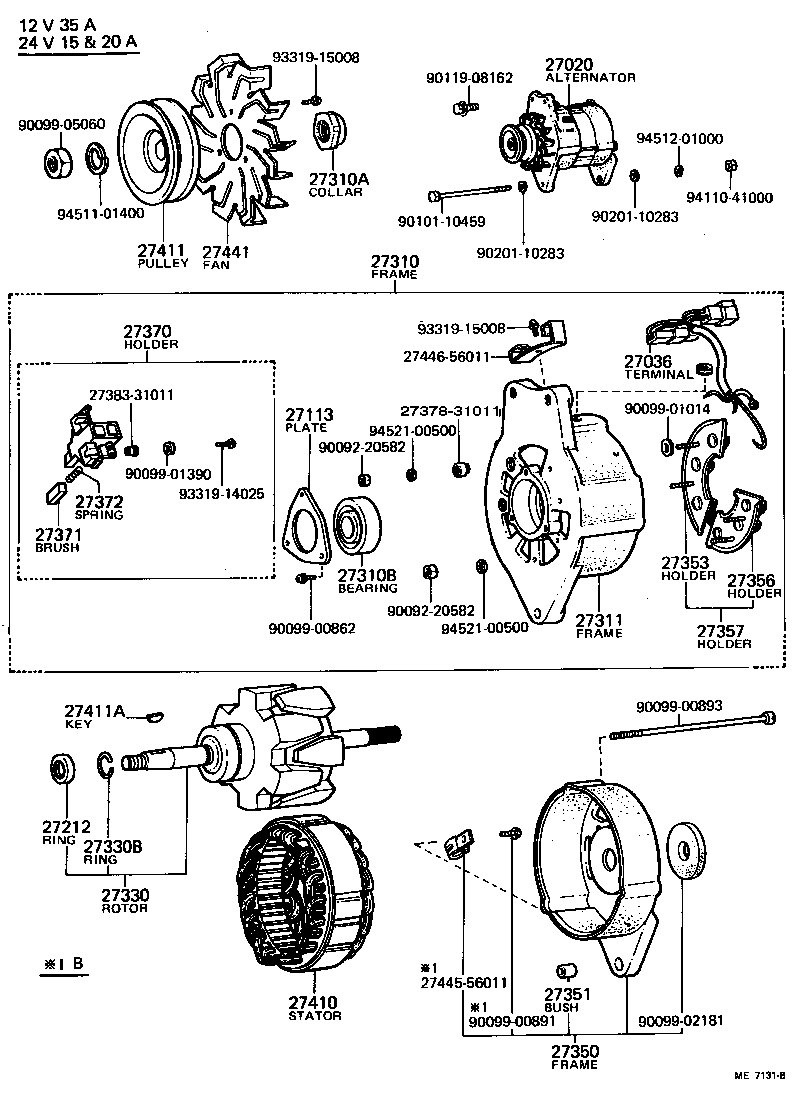

(7709-8007)B,H

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-61030	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27020-60032	F..FJ4#,55 12V 40A	03/1969 - 01/1971	1
27020-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27020-61031	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27020-60072	2F..FJ4#,55 12V 40A	08/1975 - 09/1977	1
27020-60073	2F..FJ4#,55 12V 40A	09/1977 - 02/1980	1
27020-61032	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27020-61150	2F..FJ4#,55 12V 40A,12V 40A	02/1980 - 07/1980	1
27020-61033	2F..FJ4#,55 12V 50A,12V 50A	09/1979 - 07/1980	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-31010	F..FJ4#,55 L=50,12V 55A	03/1969 - 01/1975	1
27379-60012	F..FJ4#,55 L=85,12V 55A	03/1969 - 01/1975	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27113-20010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-01083	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27412-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27212-39050	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27212-39050	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-26101	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27310-40041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310-34030	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27412-31040	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
90099-19075	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
90099-19032	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10114	2F..FJ4#,55 12V 50A	09/1977 - 12/1978	1
90099-10114	2F..FJ4#,55 6203ZZ	12/1978 - 07/1980	1
90099-10109	2F..FJ4#,55 12V 40A	09/1977 - 12/1978	1
90099-10013	F,2F..FJ4#,55 6203Z	03/1969 - 09/1977	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43012	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27330-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27330-33010	F,2F..FJ4#,55 12V 40A	03/1969 - 07/1980	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
90099-07048	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27350-60041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27350-24080	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27350-24062	2F..FJ4#,55 12V 40A	08/1975 - 09/1977	1
27350-13020	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27350-24061	2F..FJ4#,55 12V 40A	01/1975 - 08/1975	1
27350-24081	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27350-24063	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27351-60012	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27351-38051	2F..FJ4#,55 12V 40 & 50A	09/1977 - 07/1980	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27353-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27353-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27353-26020	2F..FJ4#,55 12V 40A	01/1975 - 07/1980	1
27353-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27356-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356-45080	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27356-31012	F..FJ4#,55	03/1969 - 09/1972	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-26020	2F..FJ4#,55 12V 40A	01/1975 - 09/1977	1
27357-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27357-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-26020	2F..FJ4#,55 12V 40 & 50A	01/1975 - 08/1975	1
27370-45061	2F..FJ4#,55 12V 40 & 50A	08/1975 - 09/1977	1
27370-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-44070	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A,24V 15 & 20A	09/1979 - 07/1980	2
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-40010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	2
90099-17114	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27372-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A ,24V 15 & 20A	09/1979 - 07/1980	2
27372-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410-33010	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27410-44040	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27410-26030	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27410-34050	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27410-41080	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27411 - PULLEY, ALTERNATOR
27411-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411-60032	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-03265	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441 - FAN, ALTERNATOR
27441-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441-31011	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
Common parts
27378-31011
27383-31011
27445-56011
27446-56011
90092-20582
90099-00862
90099-00891
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90101-10459
90119-08162
90201-10283
93319-14025
93319-15008
94110-41000
94511-01400
94512-01000
94521-00500

(7909-8007)2F

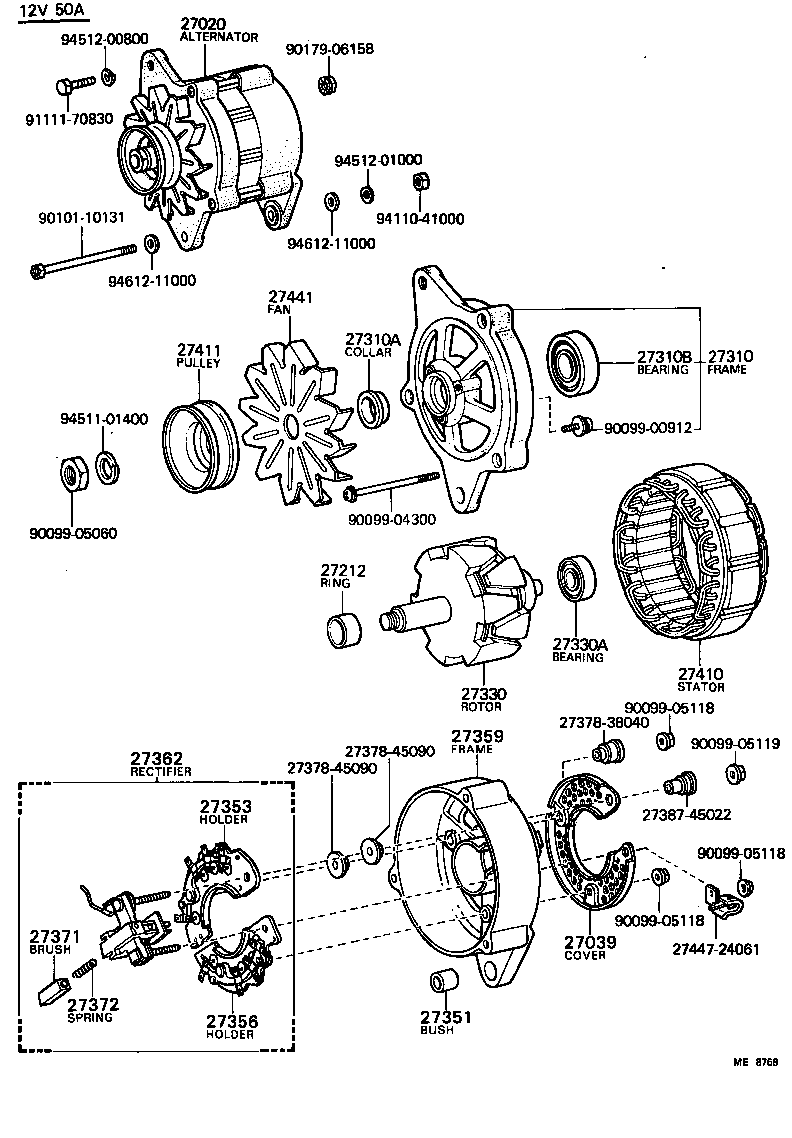

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-61030	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27020-60032	F..FJ4#,55 12V 40A	03/1969 - 01/1971	1
27020-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27020-61031	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27020-60072	2F..FJ4#,55 12V 40A	08/1975 - 09/1977	1
27020-60073	2F..FJ4#,55 12V 40A	09/1977 - 02/1980	1
27020-61032	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27020-61150	2F..FJ4#,55 12V 40A,12V 40A	02/1980 - 07/1980	1
27020-61033	2F..FJ4#,55 12V 50A,12V 50A	09/1979 - 07/1980	1
27039 - COVER, ALTERNATOR REAR END
27039-26020	2F..FJ4#,55 12V 40A	09/1979 - 07/1980	1
27039-15010	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-01083	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27412-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27212-39050	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27212-39050	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-26101	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27310-40041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310-34030	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27310-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27412-31040	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
90099-19075	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
90099-19032	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10114	2F..FJ4#,55 12V 50A	09/1977 - 12/1978	1
90099-10114	2F..FJ4#,55 6203ZZ	12/1978 - 07/1980	1
90099-10109	2F..FJ4#,55 12V 40A	09/1977 - 12/1978	1
90099-10013	F,2F..FJ4#,55 6203Z	03/1969 - 09/1977	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43012	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27330-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330-45070	2F..FJ4#,55 12V 50A	09/1977 - 07/1980	1
27330-33010	F,2F..FJ4#,55 12V 40A	03/1969 - 07/1980	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10012	F..FJ4#,55 12V 55A,6202Z	03/1969 - 01/1975	1
97110-06201	F,2F..FJ4#,55 12V 40 & 50A,6201Z	03/1969 - 09/1977	1
90099-10103	2F..FJ4#,55 12V 40A,6201ZZ	09/1977 - 12/1978	1
90099-10111	2F..FJ4#,55 12V 50A,6201ZZ	09/1977 - 12/1978	1
90099-10111	2F..FJ4#,55 6201ZZ	12/1978 - 07/1980	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27351-60012	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27351-38051	2F..FJ4#,55 12V 40 & 50A	09/1977 - 07/1980	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27353-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27353-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27353-26020	2F..FJ4#,55 12V 40A	01/1975 - 07/1980	1
27353-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-44040	2F..FJ4#,55 12V 50A	01/1975 - 09/1977	1
27356-34051	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27356-45080	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27356-31012	F..FJ4#,55	03/1969 - 09/1972	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-33011	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27359-41041	2F..FJ4#,55 12V 40 & 50A	08/1975 - 09/1977	1
27359-24100	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27359-36061	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27359-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27359-60014	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-26051	2F..FJ4#,55 12V 40A	09/1977 - 07/1980	1
27362-45081	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27362-34050	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-44070	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A,24V 15 & 20A	09/1979 - 07/1980	2
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-40010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	2
90099-17114	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	2
27372-31011	B,H,2F..BJ4#,FJ4#,55,HJ45 12V 40 & 35A ,24V 15 & 20A	09/1979 - 07/1980	2
27372-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410-33010	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27410-44040	2F..FJ4#,55 12V 50A	01/1975 - 08/1975	1
27410-26030	2F..FJ4#,55 12V 50A	08/1975 - 09/1977	1
27410-34050	2F..FJ4#,55 12V 50A	09/1977 - 09/1979	1
27410-41080	2F..FJ4#,55 12V 50A	09/1979 - 07/1980	1
27411 - PULLEY, ALTERNATOR
27411-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411-60032	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27441 - FAN, ALTERNATOR
27441-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441-31011	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
Common parts
27378-38040
27378-45090
27387-45022
27447-24061
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90179-06158
91111-70830
94110-41000
94511-01400
94512-00800
94512-01000
94612-11000

FJ43L-UCJ (1975)

(8008-8204)B,3B

(7709-8007)2F

(7709-8007)B,H

(7909-8007)2F

Part Price Details
