FJ43L-MC (1983)

Toyota Land Cruiser

Production Sep 1983 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

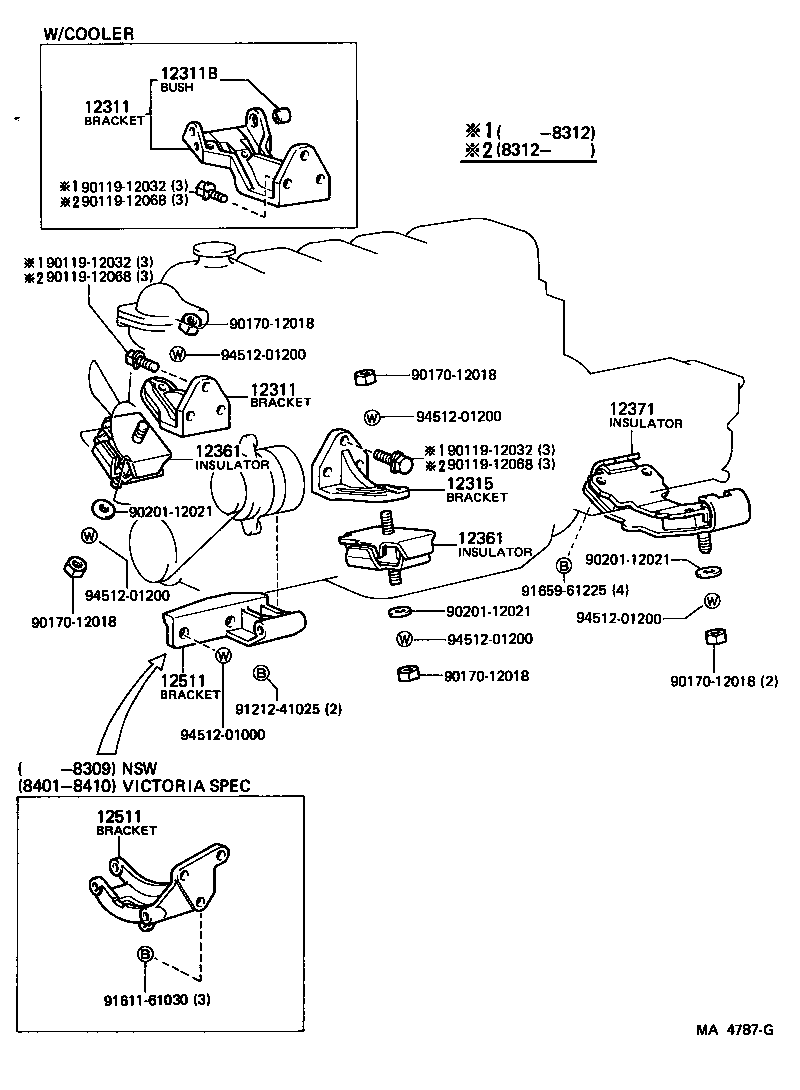

Click highlighted areas on diagram

diagram 12311 12311 12311B 12315 12361 12361 12371 12511 12511 9011912032 9011912032 9011912032 9011912068 9011912068 9011912068 9017012018 9017012018 9017012018 9017012018 9017012018 9020112021 9020112021 9020112021 9121241025 9161161030 9165961225 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61011

2F..FJ4#

 1
12301-61012

2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN)

W/COOLER

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61011

2F..FJ4#

 1
12301-61012

2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN)

W/COOLER

 1
12311B - BUSH(FOR ENGINE MOUNTING BRACKET)
90387-10028

2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN)

W/COOLER

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61011

2F..FJ4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ4#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61020

2F..FJ4#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60081

2F..FJ4#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60081

2F..FJ4#

 1
Common parts
90119-12032
90119-12068
90170-12018
90201-12021
91212-41025
91611-61030
91659-61225
94512-01000
94512-01200

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12361 12371 12511 12511 9010512008 9010512091 9011910110 9011910110 9017012018 9020112021 9020112021 9020112021 9116151220 9116151220 9165961225 9411541200 9411541200 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61011

2F..FJ4#

 1
12301-61012

2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN)

W/COOLER

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61011

2F..FJ4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ4#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61020

2F..FJ4#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60081

2F..FJ4#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60081

2F..FJ4#

 1
Common parts
90105-12008
90105-12091
90119-10110
90170-12018
90201-12021
91161-51220
91659-61225
94115-41200
94512-01200
