FJ43L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

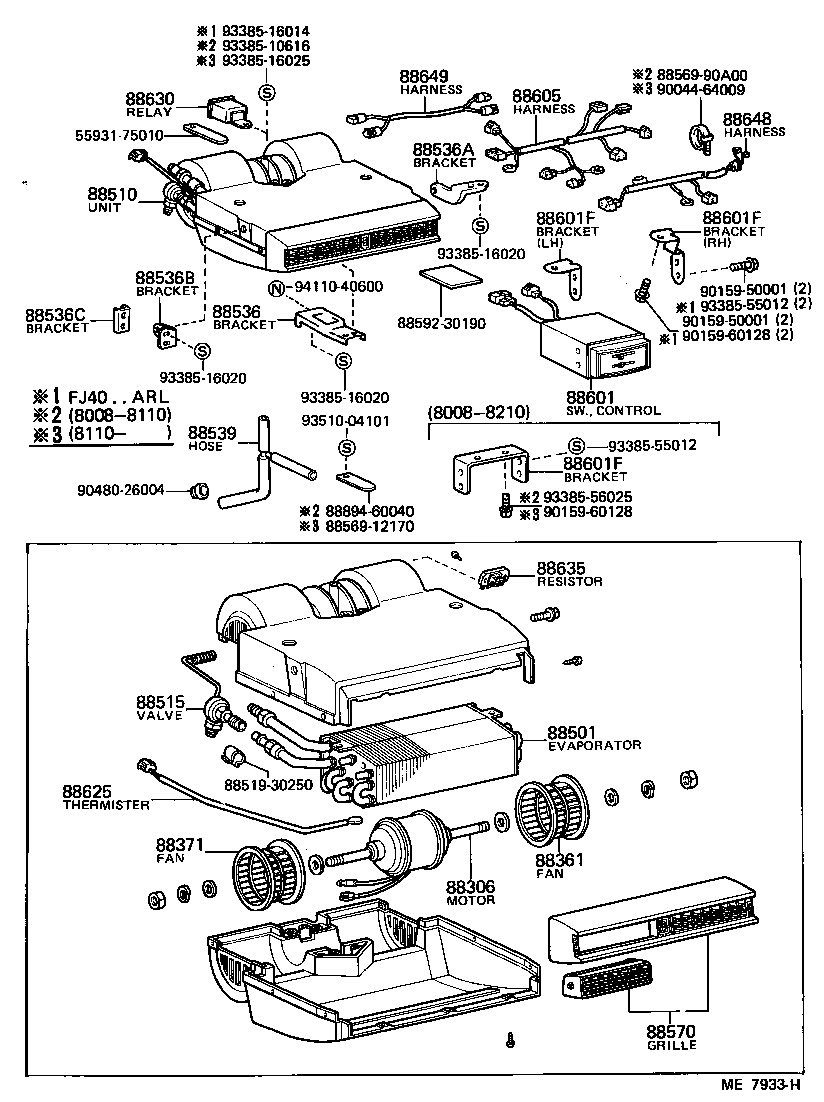

Click highlighted areas on diagram

diagram 5593175010 88306 88361 88371 88501 88510 88515 8851930250 88536 88536A 88536B 88536C 88539 8856912170 8856990A00 88570 8859230190 88601 88601F 88601F 88601F 88605 88625 88630 88635 88648 88649 8889460040 9004464009 9015950001 9015950001 9015960128 9015960128 9048026004 9338510616 9338516014 9338516020 9338516020 9338516020 9338516025 9338555012 9338555012 9338556025 9351004101 9411040600
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-60030

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88371 - FAN, COOLER BLOWER, NO.2
88541-10020

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30531

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88510 - UNIT ASSY, COOLER
88510-60080

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-12051

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-60120

FJ4#,HJ47..ARL,GEN

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-60160

FJ4#..LHD..GEN

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-60170

FJ4#..LHD..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30520

FJ4#..LHD..GEN

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-55020

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88610-60050

FJ4#..ARL,GEN

VOLUME SWITCH

 1
88601F - BRACKET, COOLER CONTROL SWITCH
88688-60020

FJ4#,HJ47..(3F,4F)..(ARL,GEN)

 1
88601F - BRACKET, COOLER CONTROL SWITCH
88688-60020

FJ4#,HJ47..(3F,4F)..(ARL,GEN)

 1
88601F - BRACKET, COOLER CONTROL SWITCH
88688-60020

FJ4#,HJ47..(3F,4F)..(ARL,GEN)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60270

FJ4#..LHD..GEN

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60020

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88630 - RELAY ASSY, COOLER
88630-60020

FJ4#,HJ47..ARL,GEN

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30370

BJ40,42,45,FJ4#,HJ47..ARL,GEN

 1
88648 - WIRING, COOLER, NO.1
88605-60280

FJ4#..LHD..GEN

 1
88649 - WIRING, COOLER, NO.2
88605-60290

FJ4#..LHD..GEN

 1
Common parts
55931-75010
88519-30250
88569-12170
88569-90A00
88592-30190
88894-60040
90044-64009
90159-50001
90159-60128
90480-26004
93385-10616
93385-16014
93385-16020
93385-16025
93385-55012
93385-56025
93510-04101
94110-40600
