FJ43L-KCJ (1980)
Toyota Land Cruiser
(8008- )

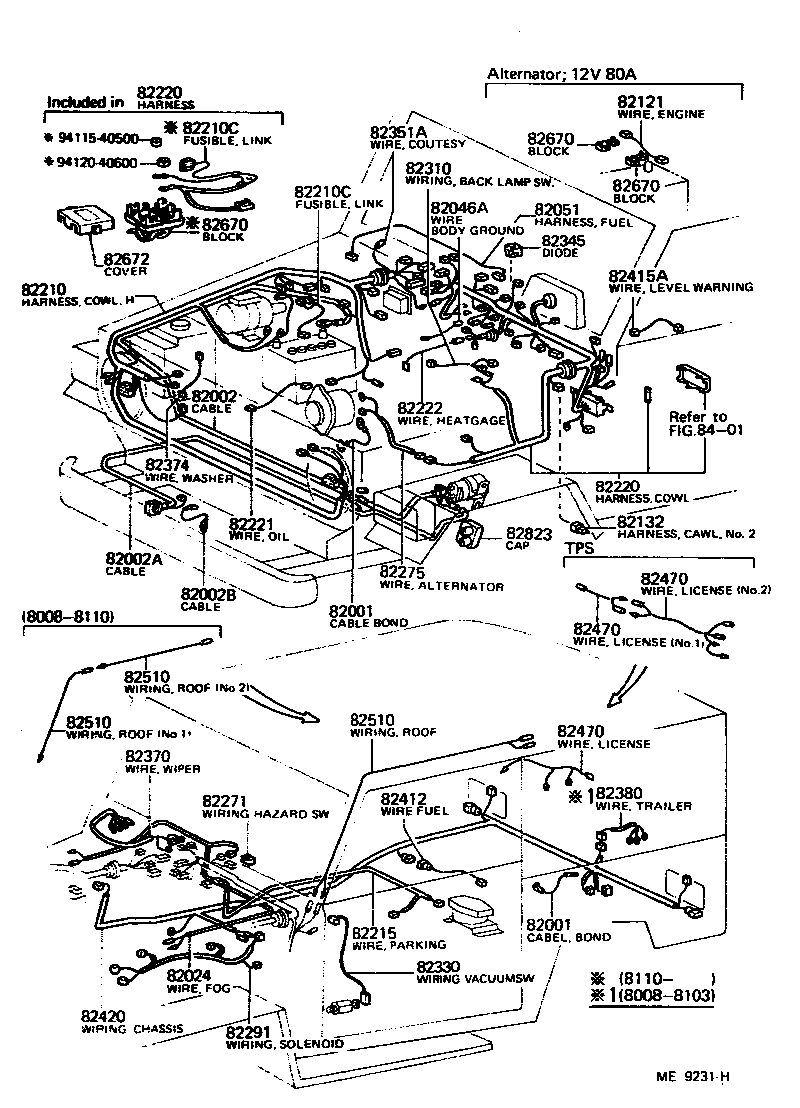

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-14072 |
BJ4#,FJ4#,HJ47 L=480,ALTERNATOR |
1 | ||
| 82381-60010 |
FJ40..3F,4F;BJ4#,FJ43,45,HJ47..(TP,V)..(EUR,GEN) TRAILER SOCKET |
1 | ||
| 90980-07003 |
FJ4#,HJ47 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-14072 |
BJ4#,FJ4#,HJ47 L=480,ALTERNATOR |
1 | ||
| 82381-60010 |
FJ40..3F,4F;BJ4#,FJ43,45,HJ47..(TP,V)..(EUR,GEN) TRAILER SOCKET |
1 | ||
| 90980-07003 |
FJ4#,HJ47 |
1 | ||
| 82002 - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 38915-90302 |
FJ4# W/ELECTRICAL WINCH |
1 | ||
| 82002A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 38916-90303 |
FJ4# W/ELECTRICAL WINCH |
1 | ||
| 82002B - CABLE, WINCH TO GROUND | ||||
| 90980-07175 |
BJ4#,FJ4#,HJ47 W/ELECTRICAL WINCH |
1 | ||
| 82024 - WIRE SUB-ASSY, FOG LAMP FEED | ||||
| 82024-90307 |
BJ4#,FJ4#,HJ47..ARL,GEN |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-90807 |
FJ4#..LHD..(3F,4F)..GEN |
1 | ||
| 82210-90826 |
FJ4#..LHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08071 |
FJ4# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08071 |
FJ4# |
1 | ||
| 82215 - WIRE, PARKING BRAKE LAMP SWITCH | ||||
| 82215-90801 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD..(TP,V) |
1 | ||
| 82215-90805 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD..(TP,V) W/RR HEATER |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-90812 |
BJ40,43,45,46..LHD..GEN W/EDIC |
1 | ||
| 82220-90807 |
FJ4#..LHD..(3F,4F)..GEN |
1 | ||
| 82220-90833 |
FJ4#..LHD..GEN |
1 | ||
| 82220-90838 |
BJ40,43,45,46..LHD..GEN W/EDIC |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-90812 |
BJ40,43,45,46..LHD..GEN W/EDIC |
1 | ||
| 82220-90807 |
FJ4#..LHD..(3F,4F)..GEN |
1 | ||
| 82220-90833 |
FJ4#..LHD..GEN |
1 | ||
| 82220-90838 |
BJ40,43,45,46..LHD..GEN W/EDIC |
1 | ||
| 82271 - WIRING, HAZARD WARNING SWITCH | ||||
| 82271-90302 |
BJ4#,FJ4#,HJ47..GEN |
1 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82422-90801 |
FJ4# |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-90800 |
FJ4#..ARL,GEN |
1 | ||
| 82310-90800 |
FJ4#,HJ47..(3F,4F)..(ARL,GEN) |
1 | ||
| 82370 - WIRE ASSY, WIPER SWITCH TO WIPER | ||||
| 82370-90312 |
BJ42,FJ4#,HJ47..(3F,4F)..(EUR,GEN) |
1 | ||
| 82370-90800 |
BJ42,FJ4#,HJ47..EUR,GEN |
1 | ||
| 82370-90312 |
BJ4#,FJ4#,HJ47..3F,4F |
1 | ||
| 82380 - WIRING ASSY, TRAILER SOCKET | ||||
| 82380-90300 |
FJ40..3F,4F;BJ4#,FJ43,45,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-90800 |
FJ4#,HJ47..TP,V |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-90801 |
FJ43 |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-90800 |
BJ4#,FJ4#,HJ47..TPC,VKC,VLS |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-90800 |
BJ4#,FJ4#,HJ47..TPC,VKC,VLS |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-90800 |
BJ4#,FJ4#,HJ47..TPC,VKC,VLS |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82521-90300 |
BJ4#,FJ4#,HJ47..3F,4F NO.1 |
1 | ||
| 82521-90303 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) NO.2 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82521-90300 |
BJ4#,FJ4#,HJ47..3F,4F NO.1 |
1 | ||
| 82521-90303 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) NO.2 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82521-90300 |
BJ4#,FJ4#,HJ47..3F,4F NO.1 |
1 | ||
| 82521-90303 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) NO.2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-90300 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 94115-40500 | ||||
| 94120-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

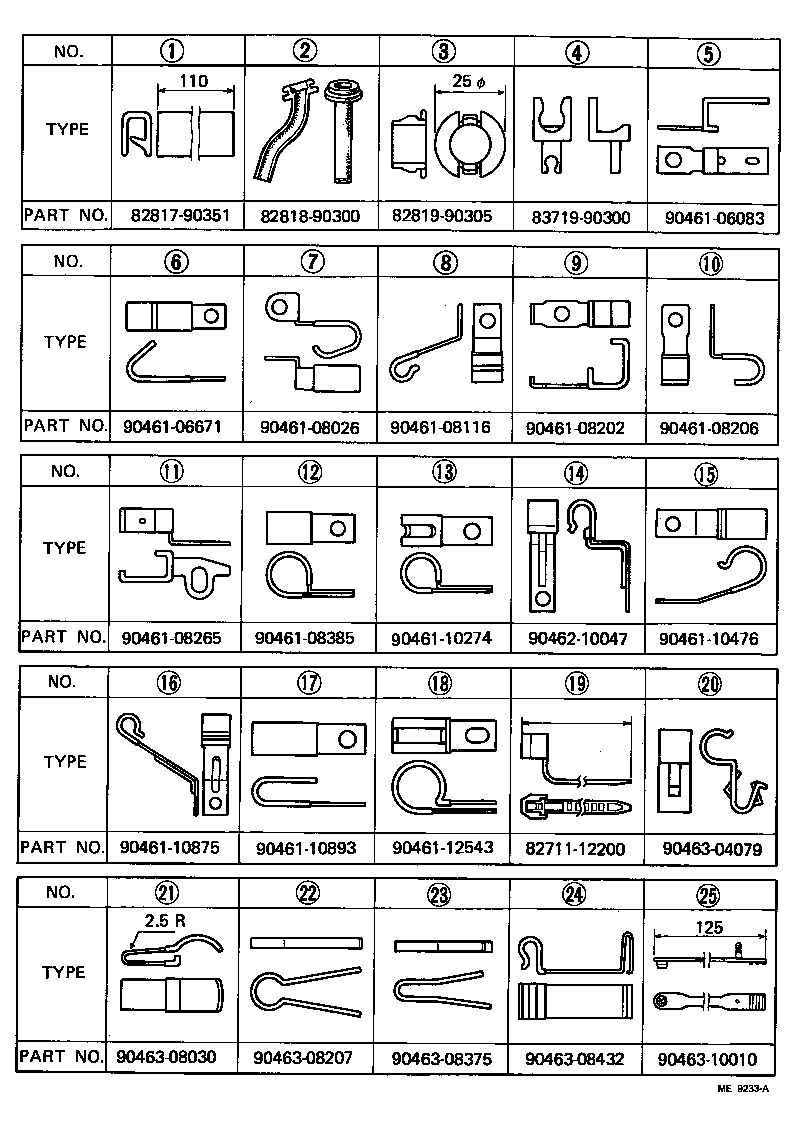

| Common parts | ||||
| 82711-12200 | ||||
| 82817-90351 | ||||
| 82818-90300 | ||||
| 82819-90305 | ||||
| 83719-90300 | ||||
| 90461-06083 | ||||
| 90461-06671 | ||||
| 90461-08026 | ||||
| 90461-08116 | ||||
| 90461-08202 | ||||
| 90461-08206 | ||||
| 90461-08265 | ||||
| 90461-08385 | ||||
| 90461-10274 | ||||
| 90461-10476 | ||||
| 90461-10875 | ||||
| 90461-10893 | ||||
| 90461-12543 | ||||
| 90462-10047 | ||||
| 90463-04079 | ||||
| 90463-08030 | ||||
| 90463-08207 | ||||
| 90463-08375 | ||||
| 90463-08432 | ||||
| 90463-10010 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

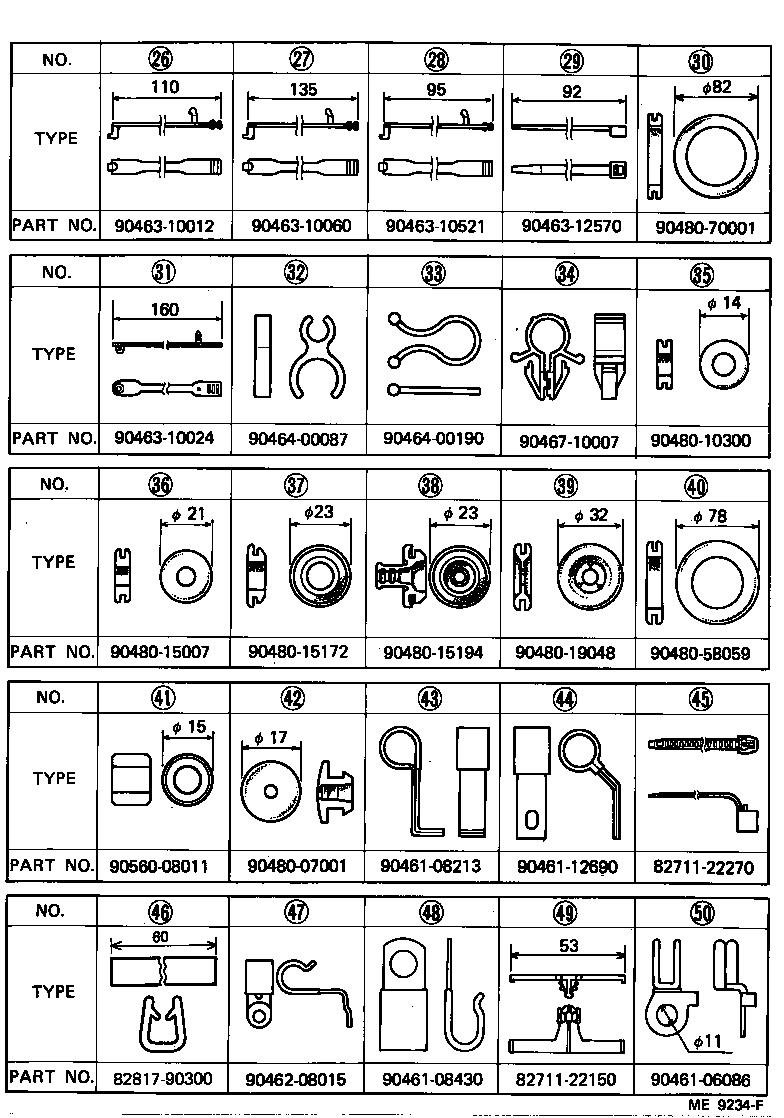

| Common parts | ||||
| 82711-22150 | ||||
| 82711-22270 | ||||
| 82817-90300 | ||||
| 90461-06086 | ||||
| 90461-08213 | ||||
| 90461-08430 | ||||
| 90461-12690 | ||||
| 90462-08015 | ||||
| 90463-10012 | ||||
| 90463-10024 | ||||
| 90463-10060 | ||||
| 90463-10521 | ||||
| 90463-12570 | ||||
| 90464-00087 | ||||
| 90464-00190 | ||||
| 90467-10007 | ||||
| 90480-07001 | ||||
| 90480-10300 | ||||
| 90480-15007 | ||||
| 90480-15172 | ||||
| 90480-15194 | ||||
| 90480-19048 | ||||
| 90480-58059 | ||||
| 90480-70001 | ||||
| 90560-08011 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

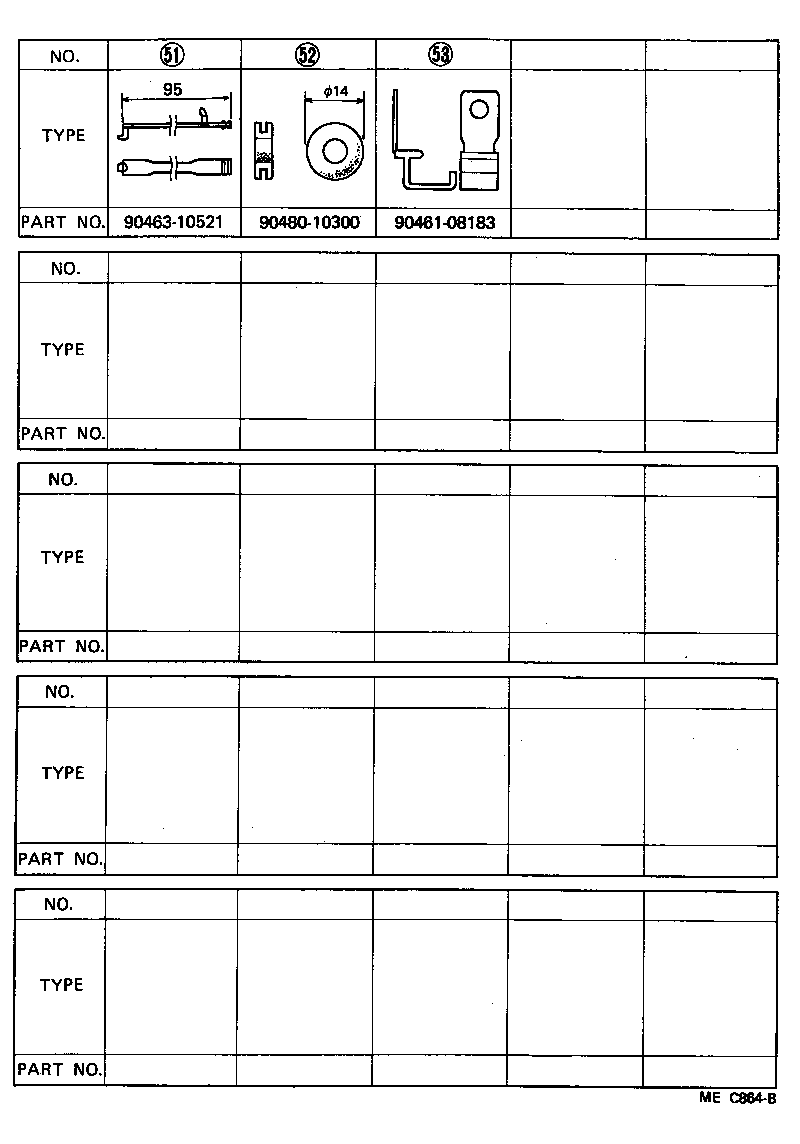

| Common parts | ||||
| 90461-08183 | ||||
| 90463-10521 | ||||
| 90480-10300 | ||||
