FJ43L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F

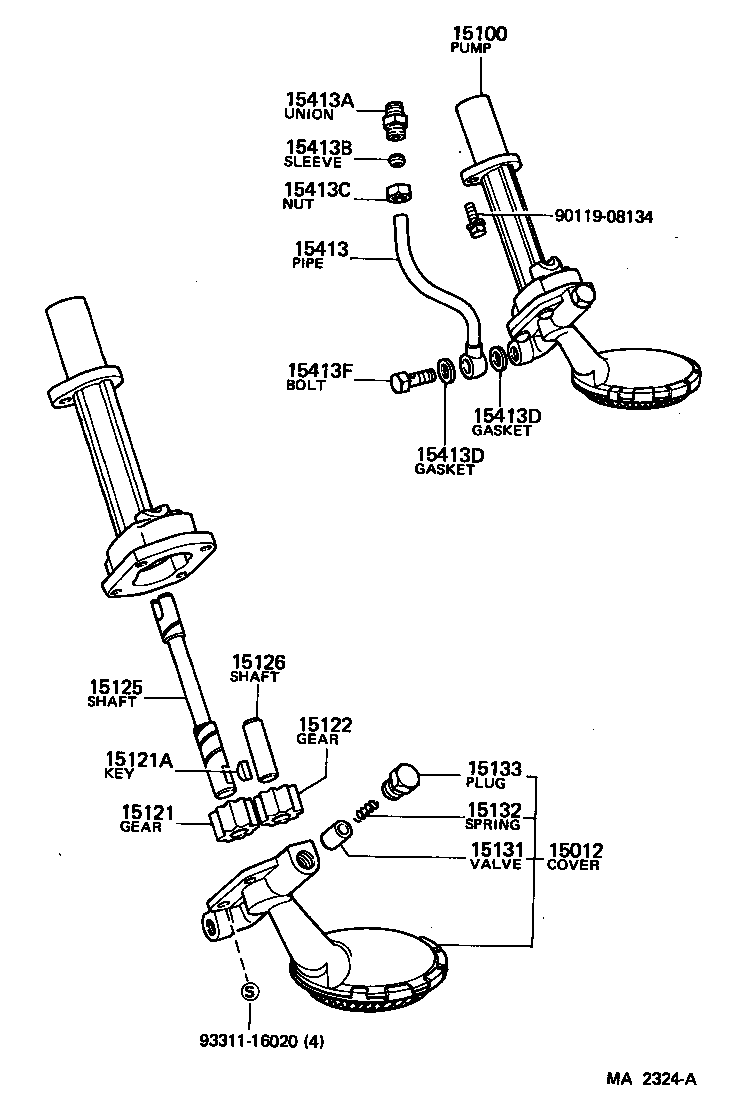

Click highlighted areas on diagram

diagram 15012 15100 15121 15121A 15122 15125 15126 15131 15132 15133 15413 15413A 15413B 15413C 15413D 15413D 15413F 9011908134 9331116020
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-60014

2F..FJ4#

 1
15100 - PUMP ASSY, OIL
15100-61010

2F..FJ4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-88111

2F..FJ4#

 1
15121A - KEY, OIL PUMP DRIVE SHAFT
90280-03009

2F..FJ4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-79410

2F..FJ4#

 1
15125 - SHAFT, OIL PUMP
15125-60013

2F..FJ4#

 1
15126 - SHAFT, OIL PUMP DRIVEN
15126-60013

2F..FJ4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2F..FJ4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2F..FJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2F..FJ4#

 1
15413 - PIPE, OIL PUMP OUTLET
15403-60020

2F..FJ4#

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

2F..FJ4#

 1
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

2F..FJ4#

 1
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

2F..FJ4#

 1
15413D - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-15261

2F..FJ4#

 2
15413D - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-15261

2F..FJ4#

 2
15413F - BOLT, UNION(FOR OIL PUMP OUTLET PIPE)
90401-14093

2F..FJ4#

 1
Common parts
90119-08134
93311-16020

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
15121 - GEAR, OIL PUMP DRIVE
15121-88111

2F..FJ4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-79410

2F..FJ4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2F..FJ4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2F..FJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2F..FJ4#

 1
Common parts
90179-08123
91661-60816
92122-60832
93220-16012
