FJ43L-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7509)PIC,V ; (7509-8007)BJ4#,FJ4#,HJ45

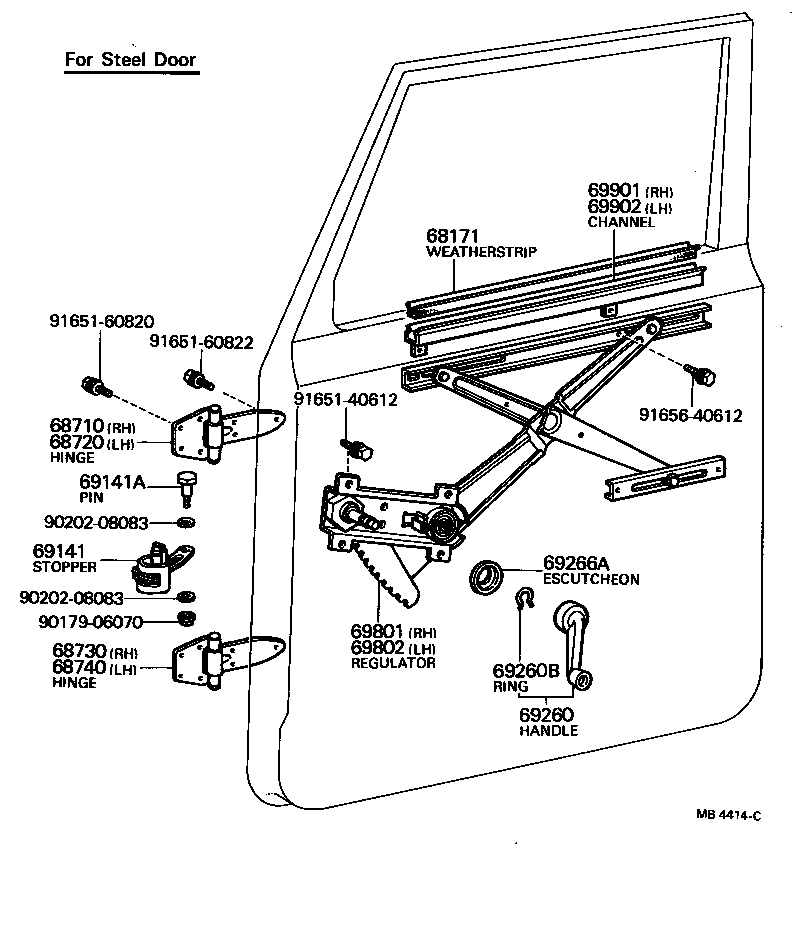

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69141 69141A 69260 69260B 69266A 69801 69802 69901 69902 9017906070 9020208083 9020208083 9165140612 9165160820 9165160822 9165640612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68211-60011

BJ4#,FJ40,43..TP

 2
68211-60011

BJ4#,FJ40,43,45,HJ45

 2
68171-90301

BJ4#,FJ4#,HJ45

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-60012

BJ4#,FJ40,43,45,HJ45

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-60012

BJ4#,FJ40,43,45,HJ45

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-60012

BJ4#,FJ40,43,45,HJ45

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68720-60012

BJ4#,FJ40,43,45,HJ45

 1
69141 - STOPPER, FRONT DOOR OPEN
68980-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
68957-60010

BJ4#,FJ40,43..TP

FOR STEEL DOOR

 2
69141-60010

BJ4#,FJ40,43..TP..GEN

FOR CANVAS DOOR

 2
69141-60010

BJ4#,FJ40,42,43..TP

FOR CANVAS DOOR

 2
68957-60010

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

BJ4#,FJ4#,HJ45

 2
68898-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
68898-60010

BJ4#,FJ40,43..TP

FOR STEEL DOOR

 2
90240-08146

BJ4#,FJ40,43..TP..GEN

FOR CANVAS DOOR

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-12010

BJ4#,FJ4#,55,HJ45

 2
69260-90351

BJ4#,FJ4#,55,HJ45

 2
69260-1004001

BJ4#,FJ4#,55,HJ45

BLACK

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

BJ4#,FJ4#,55,HJ45

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69266-22010

BJ4#,FJ4#,55,HJ45

 2
69266-2201001

BJ4#,FJ4#,55,HJ45

BLACK

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-90300

BJ4#,FJ40,43..TP

 1
69801-90303

BJ4#,FJ4#,HJ45

 1
69810-60011

FJ40,43,45,HJ45

 1
69801-90304

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-60011

FJ40,43,45,HJ45

 1
69802-90300

BJ4#,FJ40,43..TP

 1
69802-90303

BJ4#,FJ4#,HJ45

 1
69802-90304

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
68211-60020

BJ4#,FJ40,42,43..TP

FOR CANVAS DOOR

 1
69901-90300

BJ4#,FJ40,43..TP

FOR STEEL DOOR

 1
69901-90300

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68211-60020

BJ4#,FJ40,43..TP..GEN

FOR CANVAS DOOR

 1
69901-90351

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
69901-90301

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
69901-90303

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90300

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
69902-90300

BJ4#,FJ40,43..TP

FOR STEEL DOOR

 1
69903-90351

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
68211-60020

BJ4#,FJ40,42,43..TP

FOR CANVAS DOOR

 1
69902-90301

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
69901-90303

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 1
68211-60020

BJ4#,FJ40,43..TP..GEN

FOR CANVAS DOOR

 1
Common parts
90179-06070
90202-08083
91651-40612
91651-60820
91651-60822
91656-40612
