FJ43L-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)FJ40,43 ; (8210- )FJ40,45..ARL,EUR; (8301-8506)FJ45..RHD..GEN

Click highlighted areas on diagram

diagram 44608 44610 44610K 44629 44642 44643 44645 44663 44666 44671 44696 44730 9017908038
Part # Description Qty Price
Common parts
90179-08038

(8008-8210)ARL,GEN ; (8210- )GEN

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44647 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44696 44730 9017908038 9331914008
Part # Description Qty Price
Common parts
90179-08038
93319-14008

(6903-8007)FJ40,43,45,55

Click highlighted areas on diagram

diagram 44730A 44730A 44730A 44730A 44730A 44730A 44730D 44730D 44730F 44730F 44730F 44730F 44730F 44730F 44758 44758 44758 44764 44764A 9046106349 9046108320 9046110907 9111140816 9451200800
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730A - HOSE, VACUUM, NO.1
90445-17016

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
44773-60011

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

FJ4#,55

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

FJ4#,55

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-53003

FJ4#,55..LHD

FOR FRONT DRUM BRAKE

 1
90404-51007

FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
44758-30040

FJ4#,55..LHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
44758-30040

FJ4#,55..LHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
44758-30040

FJ4#,55..LHD

 1
Common parts
90461-06349
90461-08320
90461-10907
91111-40816
94512-00800

(7501-8007)

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44657A 44657B 44662 44662B 44662C 44683 44683A 44696 44730 44758 9017908146 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30050

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44608-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44610-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610K - BOOSTER KIT, BRAKE
04443-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
04443-60040

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

BJ4#,FJ4#,55,HJ45

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

BJ4#,FJ4#,55,HJ45

 1
44662 - RETAINER, REACTION, NO.1
44662-20100

BJ4#,FJ4#,55,HJ45

 1
44662C - PLATE, REACTION, NO.1
44653-20150

BJ4#,FJ4#,55,HJ45

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

BJ4#,FJ4#,55,HJ45

 1
44683A - LOCK, CONNECTOR
44683-20100

BJ4#,FJ4#,55,HJ45

 1
44696 - GROMMET, CHECK VALVE
90480-24438

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22060

BJ4#,FJ4#,55,HJ45

FOR BOOSTER

 1
44730-22050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
44758-30040

FJ4#,55..LHD

 1
Common parts
90179-08146
93319-14008

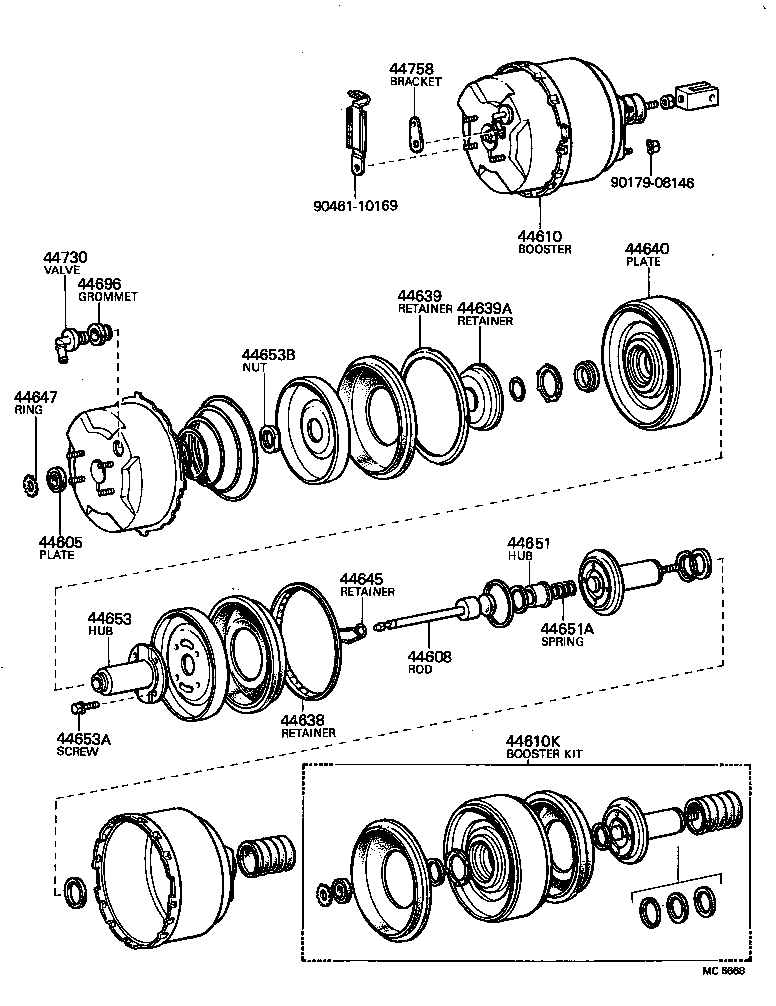

(7909-8007)BJ4#,FJ40,43..LHD..GEN

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44638 44639 44639A 44640 44645 44647 44651 44651A 44653 44653A 44653B 44696 44730 44758 9017908146 9046110169
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30050

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44608-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44610-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610K - BOOSTER KIT, BRAKE
04443-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
04443-60040

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44638 - RETAINER, BOOSTER DIAPHRAGM, REAR
44638-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44639 - RETAINER, BOOSTER DIAPHRAGM, FRONT
44649-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44639A - RETAINER, BOOSTER DIAPHRAGM, FRONT, NO.1
44654-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44640 - PLATE, BOOSTER CENTER
44641-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44655-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44645-22020

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44651 - HUB, BOOSTER REACTION DISC
44632-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44651A - SPRING, BOOSTER VALVE RETURN
44631-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44653 - HUB SUB-ASSY, BOOSTER
44602-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44653A - SCREW(FOR BOOSTER HUB)
44653-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44653B - NUT(FOR BOOSTER HUB)
44651-60050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44696 - GROMMET, CHECK VALVE
90480-24438

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22060

BJ4#,FJ4#,55,HJ45

FOR BOOSTER

 1
44730-22050

BJ4#,FJ40,43..LHD..GEN

FOR FRONT DISC BRAKE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
44758-30040

FJ4#,55..LHD

 1
Common parts
90179-08146
90461-10169
