FJ43L-K (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7709-7901)FJ4#,55,HJ45 ; (7901-8007)FJ4#,HJ45

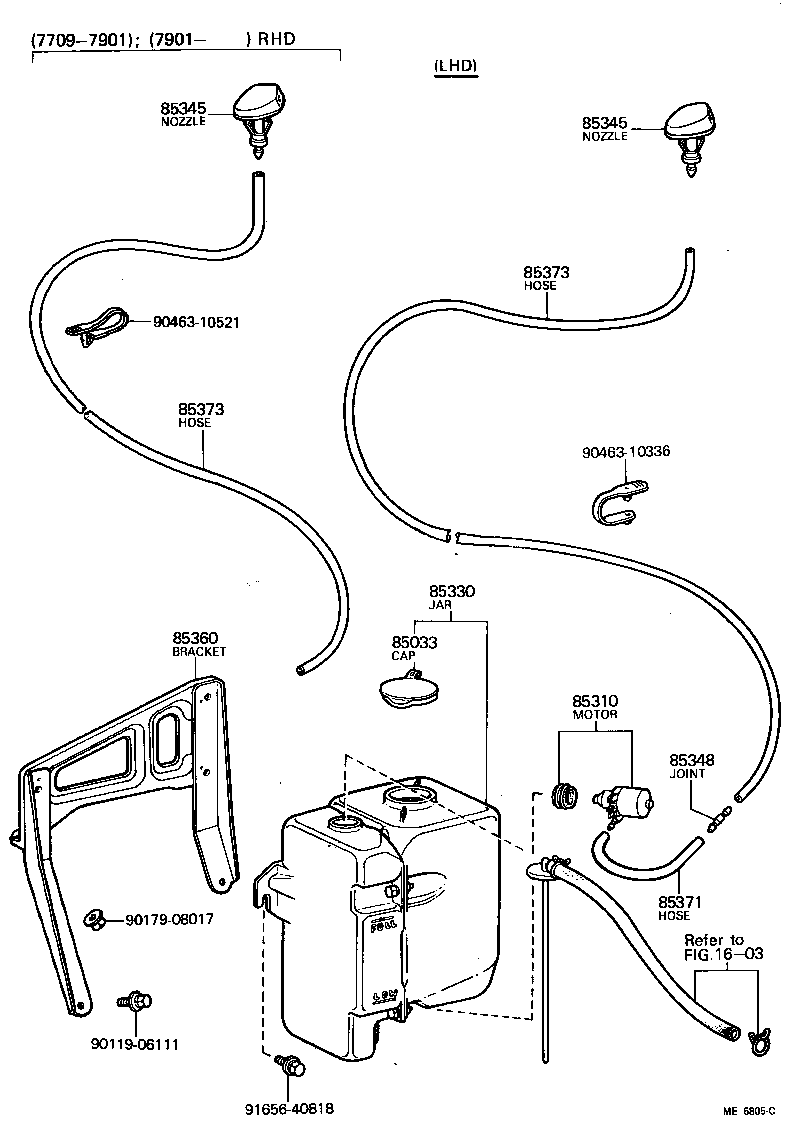

Click highlighted areas on diagram

diagram 1603 85033 85310 85330 85345 85345 85348 85360 85371 85373 85373 9011906111 9017908017 9046310336 9046310521 9165640818
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-60010

BJ4#,FJ4#,55,HJ45

 1
85332-60010

FJ4#,55,HJ45

 1
85333-10031

FJ4#,55

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10032

FJ4#,55

W/MOTOR

 1
85310-60010

FJ4#,55,HJ45

FOR 12V

 1
85310-10060

BJ4#,FJ4#,55,HJ45

FOR 12V

 1
85039-10031

FJ4#,55

PUMP ONLY

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-10010

FJ4#

 1
85330-60011

FJ4#,55,HJ45

FOR 12V 2.5LITERS

 1
85330-60030

FJ4#,55,HJ45

FOR 2.5LITER

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60050

BJ4#,FJ4#,HJ45

 1
85035-60010

FJ4#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-60050

BJ4#,FJ4#,HJ45

 1
85035-60010

FJ4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-60010

FJ4#

 1
85355-10060

FJ4#,55,HJ45

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-60022

FJ4#,HJ45

 1
85360-60010

FJ4#,HJ45

FOR 2.5LITER,12V

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85343-60030

FJ4#,55

*H,L=1050

 1
90446-06319

FJ4#,55,HJ45

*H,L=100,FOR 12V

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85344-60010

FJ4#

L=640

 1
85353-60010

FJ4#

L=40

 1
90446-06005

FJ4#,HJ45

L=2400

 1
90446-06302

FJ4#,HJ45..LHD

L=1100,FOR 12V

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85344-60010

FJ4#

L=640

 1
85353-60010

FJ4#

L=40

 1
90446-06005

FJ4#,HJ45

L=2400

 1
90446-06302

FJ4#,HJ45..LHD

L=1100,FOR 12V

 1
Common parts
90119-06111
90179-08017
90463-10336
90463-10521
91656-40818
Linked diagrams
1603
