FJ43L-C (1969)
Toyota Land Cruiser
(8008-8410)B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90043-01041 | ||||
| 90116-08194 | ||||
| 90119-08512 | ||||
| 90179-08123 | ||||
| 90201-14099 | ||||
| 91611-60816 | ||||
| 92122-60814 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
(6903-7309)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

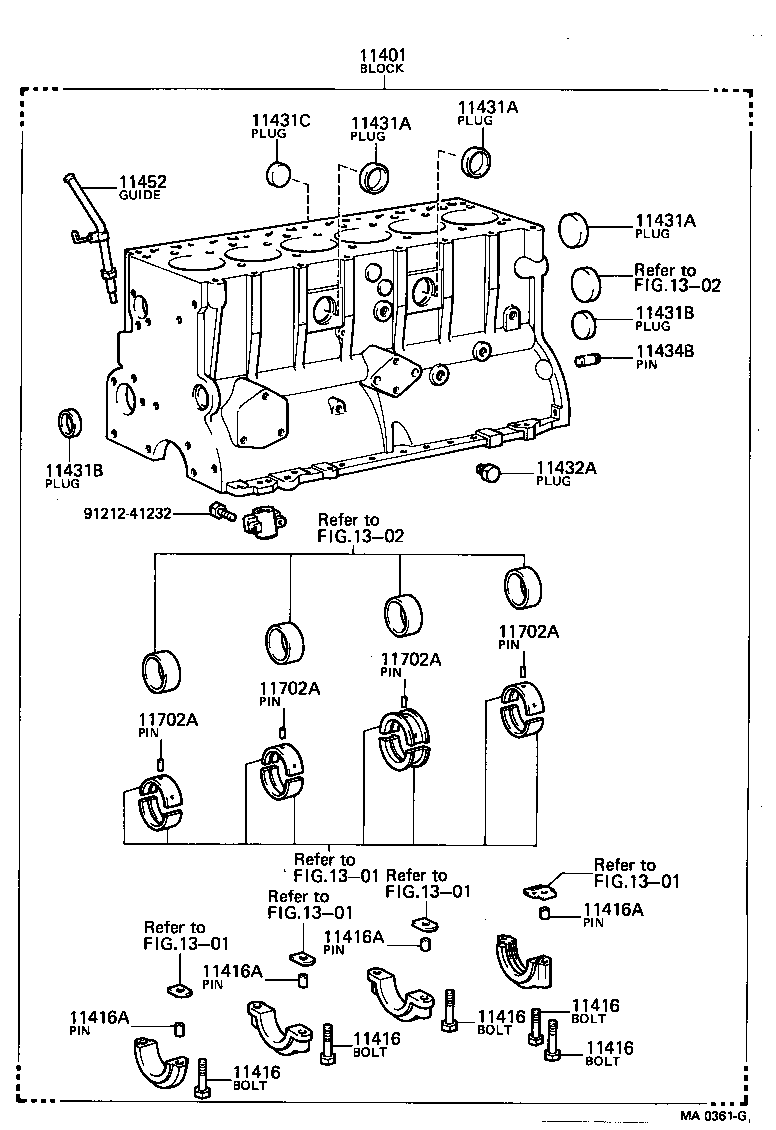

| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-60040 |
F..FJ4#,55 |
1 | ||
| 11401-60043 |
F..FJ4#,55 |
1 | ||
| 11401-60041 |
F..FJ4#,55 |
1 | ||
| 11401-60042 |
F..FJ4#,55 |
1 | ||
| 11401-60044 |
F..FJ4#,55 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02021 |
F..FJ4#,55 12-1.75PX68-26 |
4 | ||
| 90910-02022 |
F..FJ4#,55 14-2.0PX63-25 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02021 |
F..FJ4#,55 12-1.75PX68-26 |
4 | ||
| 90910-02022 |
F..FJ4#,55 14-2.0PX63-25 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02021 |
F..FJ4#,55 12-1.75PX68-26 |
4 | ||
| 90910-02022 |
F..FJ4#,55 14-2.0PX63-25 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02021 |
F..FJ4#,55 12-1.75PX68-26 |
4 | ||
| 90910-02022 |
F..FJ4#,55 14-2.0PX63-25 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02021 |
F..FJ4#,55 12-1.75PX68-26 |
4 | ||
| 90910-02022 |
F..FJ4#,55 14-2.0PX63-25 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-17003 |
F..FJ4#,55 FOR NO.1.2.3 |
6 | ||
| 90253-15005 |
F..FJ4#,55 FOR NO.4 |
2 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-17003 |
F..FJ4#,55 FOR NO.1.2.3 |
6 | ||
| 90253-15005 |
F..FJ4#,55 FOR NO.4 |
2 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-17003 |
F..FJ4#,55 FOR NO.1.2.3 |
6 | ||
| 90253-15005 |
F..FJ4#,55 FOR NO.4 |
2 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-17003 |
F..FJ4#,55 FOR NO.1.2.3 |
6 | ||
| 90253-15005 |
F..FJ4#,55 FOR NO.4 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-50018 |
F..FJ4#,55 OD=50 |
3 | ||
| 90331-50015 |
F..FJ4#,55 OD=50 |
5 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-50018 |
F..FJ4#,55 OD=50 |
3 | ||
| 90331-50015 |
F..FJ4#,55 OD=50 |
5 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-50018 |
F..FJ4#,55 OD=50 |
3 | ||
| 90331-50015 |
F..FJ4#,55 OD=50 |
5 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90330-24013 |
F,2F..FJ4#,55 OD=24 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90330-24013 |
F,2F..FJ4#,55 OD=24 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-25011 |
F..FJ4#,55 OD=25 |
4 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51005 |
F..FJ4#,55 |
5 | ||
| 90345-51005 |
F..FJ4#,55 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10052 |
F..FJ4#,55 L=20,OD=10,L=22,OD=10 |
2 | ||
| 90250-10192 |
F..FJ4#,55 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-60012 |
F..FJ4#,55 |
1 | ||
| 11452-60011 |
F..FJ4#,55 |
1 | ||
| 11702A - PIN, DOWEL(FOR CRANKSHAFT MAIN BEARING) | ||||
| 90250-08064 |
F..FJ4#,55 |
4 | ||
| 11702A - PIN, DOWEL(FOR CRANKSHAFT MAIN BEARING) | ||||
| 90250-08064 |
F..FJ4#,55 |
4 | ||
| 11702A - PIN, DOWEL(FOR CRANKSHAFT MAIN BEARING) | ||||
| 90250-08064 |
F..FJ4#,55 |
4 | ||
| 11702A - PIN, DOWEL(FOR CRANKSHAFT MAIN BEARING) | ||||
| 90250-08064 |
F..FJ4#,55 |
4 | ||
| Common parts | ||||
| 91212-41232 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
(6903-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-60010 |
F..FJ4#,55 |
1 | ||
| 11203-60010 |
F..FJ4#,55 W/PCV |
1 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-60010 |
F,2F..FJ4#,55 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-60040 |
F..FJ4#,55 |
1 | ||
| 11401-60043 |
F..FJ4#,55 |
1 | ||
| 11401-60041 |
F..FJ4#,55 |
1 | ||
| 11401-60042 |
F..FJ4#,55 |
1 | ||
| 11401-60044 |
F..FJ4#,55 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09028 |
F..FJ4#,55 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09029 |
F..FJ4#,55 |
1 | ||
| 11417 - NOZZLE, OIL | ||||
| 90915-01009 |
F,2F..FJ4#,55 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-17003 |
F,2F..FJ4#,55 L=7,OD=16.5,L=16.5,OD=7 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-60012 |
F..FJ4#,55 |
1 | ||
| 11452-60011 |
F..FJ4#,55 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11462-60010 |
F..FJ4#,55 O/S 160 |
6 | ||
| 11463-60010 |
F..FJ4#,55 O/S 180 |
6 | ||
| 11464-60010 |
F..FJ4#,55 O/S 200 |
6 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12100-60060 |
F..FJ4#,55 |
1 | ||
| 12100-60020 |
F..FJ4# |
1 | ||
| 12101-60061 |
F..FJ4#,55 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12100-60060 |
F..FJ4#,55 |
1 | ||
| 12100-60020 |
F..FJ4# |
1 | ||
| 12101-60061 |
F..FJ4#,55 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25043 |
F..FJ4#,55 OD=25 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25043 |
F..FJ4#,55 OD=25 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
F,2F..FJ4#,55 ID=25 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
F,2F..FJ4#,55 ID=25 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 04121-60061 |
F..FJ4# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-60030 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 93381-18018 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
