Toyota Land cruiser FJ43 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ43L-B (1969)
4703 - BRAKE BOOSTER & VACUUM TUBE

FJ43L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8210)FJ40,43 ; (8210- )FJ40,45..ARL,EUR; (8301-8506)FJ45..RHD..GEN

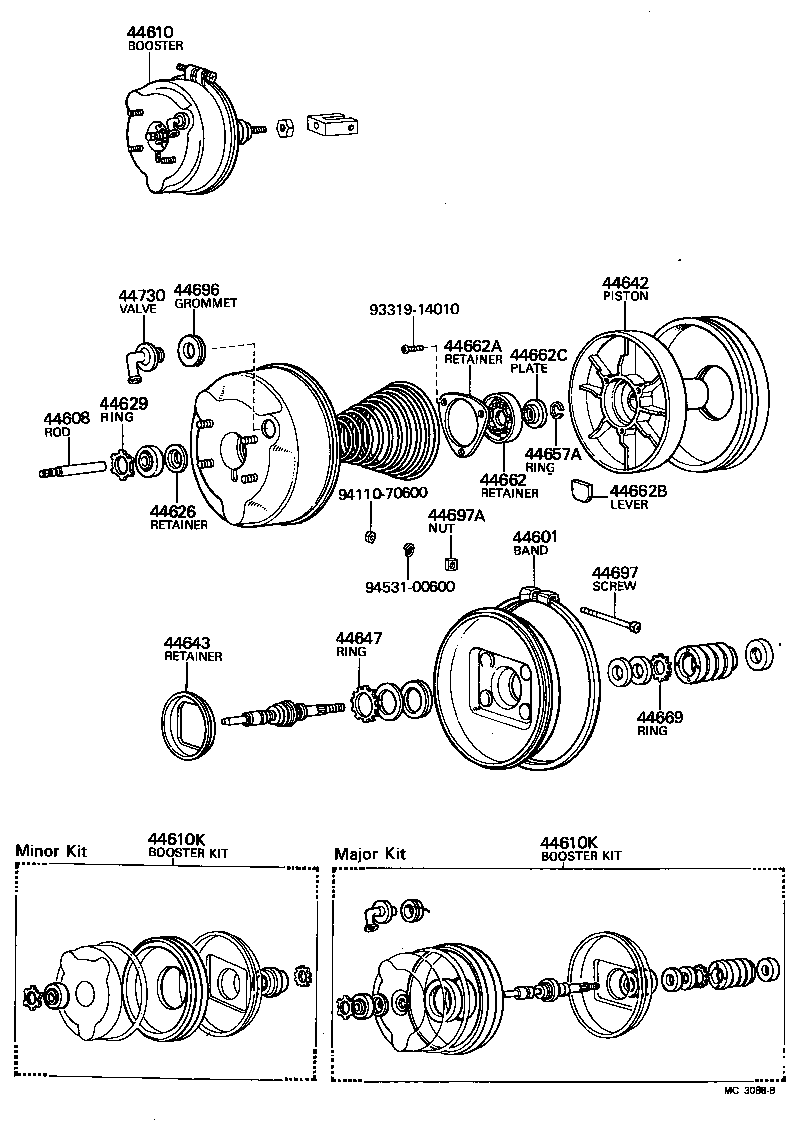

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08038

(8008-8210)ARL,GEN ; (8210- )GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08038
93319-14008

(7101-7109)FJ40,55..LHD ; (7109-7501)BJ4#,FJ40,43,45,55,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
44601 - BAND SUB-ASSY, BOOSTER BODY
44605-60010	FJ40,43,55	01/1973 - 09/1973	1
44605-60010	FJ4#,55	09/1973 - 11/1973	1
44610K - BOOSTER KIT, BRAKE
04441-60010	FJ4#,55 MINOR KIT	09/1973 - 11/1973	1
04441-60010	FJ40,43,55 MINOR KIT	01/1973 - 09/1973	1
44610K - BOOSTER KIT, BRAKE
04441-60010	FJ4#,55 MINOR KIT	09/1973 - 11/1973	1
04441-60010	FJ40,43,55 MINOR KIT	01/1973 - 09/1973	1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010	FJ40,43,55	01/1973 - 09/1973	1
44626-60010	FJ4#,55	09/1973 - 11/1973	1
44629 - RING, CIRCULAR INTERNAL
44629-60010	FJ40,43,55	01/1973 - 06/1973	1
44642 - PISTON, BRAKE BOOSTER
44642-60010	FJ40,43,55	01/1973 - 06/1973	1
44642-25010	FJ4#,55	09/1973 - 11/1973	1
44642-25010	FJ40,43,55	06/1973 - 09/1973	1
44643 - RETAINER, DIAPHRAGM
44643-60010	FJ4#,55	09/1973 - 11/1973	1
44643-60010	FJ40,43,55	01/1973 - 09/1973	1
44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44628-60010	FJ40,43,55	01/1973 - 09/1973	1
44628-60010	FJ4#,55	09/1973 - 11/1973	1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600	FJ40,43,55	01/1973 - 09/1973	1
96150-01600	FJ4#,55	09/1973 - 11/1973	1
44662 - RETAINER, REACTION, NO.1
44662-60010	FJ4#,55	09/1973 - 11/1973	1
44662-60010	FJ40,43,55	01/1973 - 09/1973	1
44662A - RETAINER, REACTION, NO.2
44663-60010	FJ40,43,55	01/1973 - 09/1973	1
44663-60010	FJ4#,55	09/1973 - 11/1973	1
44662B - LEVER, REACTION
44661-60010	FJ4#,55	09/1973 - 11/1973	3
44661-60010	FJ40,43,55	01/1973 - 09/1973	3
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010	FJ4#,55	09/1973 - 11/1973	1
44669-60010	FJ40,43,55	01/1973 - 09/1973	1
44696 - GROMMET, CHECK VALVE
90480-24439	FJ4#,55	09/1973 - 11/1973	1
90480-24439	FJ40,43,55	01/1973 - 09/1973	1
44697 - SCREW, BOOSTER BAND SET
44681-60011	FJ4#,55	09/1973 - 11/1973	1
44681-60011	FJ40,43,55	01/1973 - 09/1973	1
44697A - NUT(FOR BOOSTER BAND SET)
44686-30030	FJ4#,55	09/1973 - 11/1973	1
44686-30030	FJ40,43,55	01/1973 - 09/1973	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44690-60011	FJ40,43,55	01/1973 - 06/1973	1
Common parts
93319-14010
94110-70600
94531-00600

(6903-8007)FJ40,43,45,55

Click highlighted areas on diagram

Part #	Description	Period	Qty
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730A - HOSE, VACUUM, NO.1
90445-17772	FJ40,43,55..LHD	01/1973 - 09/1973	1
90445-17772	FJ4#,55..LHD	09/1973 - 04/1974	1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90460-18058	FJ4#,55	09/1973 - 12/1973	2
90460-18058	FJ40,43,55	01/1973 - 09/1973	2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90460-18058	FJ4#,55	09/1973 - 12/1973	2
90460-18058	FJ40,43,55	01/1973 - 09/1973	2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-54236	FJ40,43,55..LHD	01/1973 - 09/1973	1
Common parts
90461-06349
90461-08320
90461-10907
91111-40816
94512-00800

FJ43L-B (1969)

(8008-8210)FJ40,43 ; (8210- )FJ40,45..ARL,EUR; (8301-8506)FJ45..RHD..GEN

(8008-8210)ARL,GEN ; (8210- )GEN

(7101-7109)FJ40,55..LHD ; (7109-7501)BJ4#,FJ40,43,45,55,HJ45

(6903-8007)FJ40,43,45,55
