FJ43L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

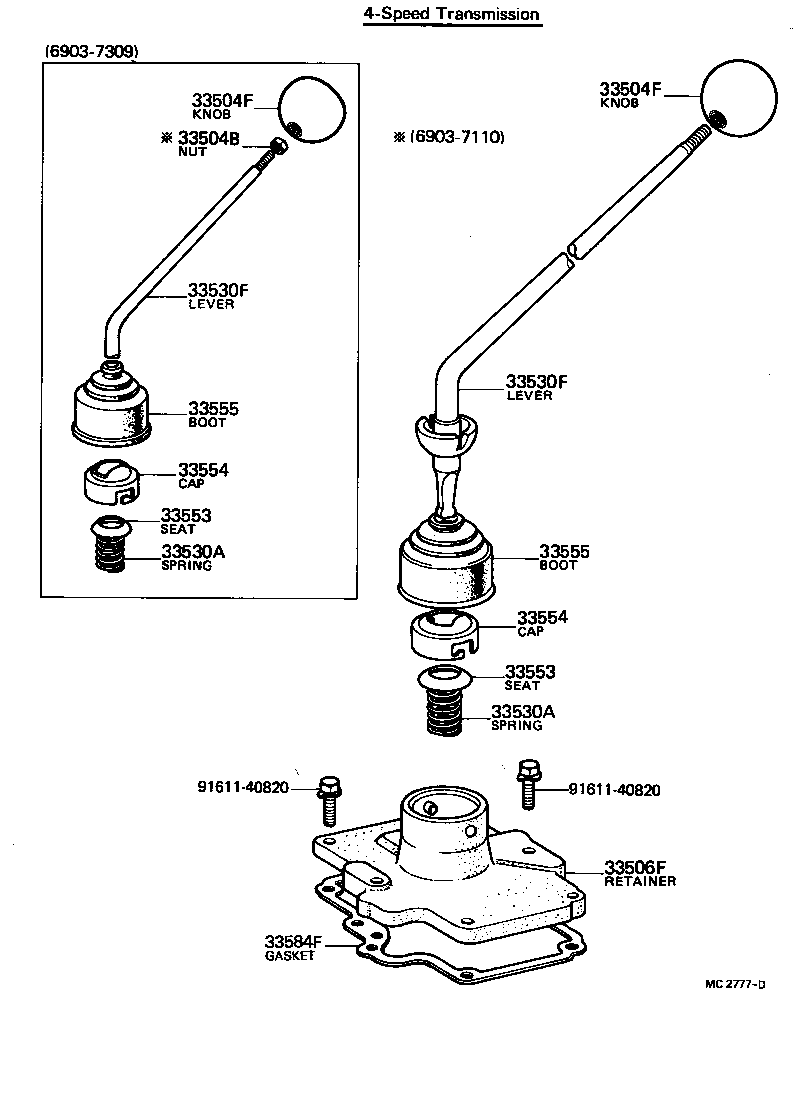

Click highlighted areas on diagram

diagram 33504B 33504F 33504F 33506F 33530A 33530A 33530F 33530F 33553 33553 33554 33554 33555 33555 33584F 9161140820 9161140820
Part # Description Qty Price
33504B - NUT, HEXAGON
90170-10054

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90501-32051

FJ4#,55

 1
90501-32614

BJ4#,FJ4#,55,HJ45

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90501-32051

FJ4#,55

 1
90501-32614

BJ4#,FJ4#,55,HJ45

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-60030

FJ4#

FOR 3-SPEED TRANSMISSION

 1
33541-60080

FJ4#,55,HJ45..LHD

FOR 4-SPEED TRANSMISSION

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-60030

FJ4#

FOR 3-SPEED TRANSMISSION

 1
33541-60080

FJ4#,55,HJ45..LHD

FOR 4-SPEED TRANSMISSION

 1
33553 - SEAT, SHIFT LEVER SPRING
33553-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33553-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33553 - SEAT, SHIFT LEVER SPRING
33553-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33553-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33554 - CAP, SHIFT LEVER
33554-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33554-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33554 - CAP, SHIFT LEVER
33554-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33554-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33555 - BOOT, SHIFT LEVER
33555-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33555-60010

FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33555 - BOOT, SHIFT LEVER
33555-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33555-60010

FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
Common parts
91611-40820

(6903-8007)FJ4#,55

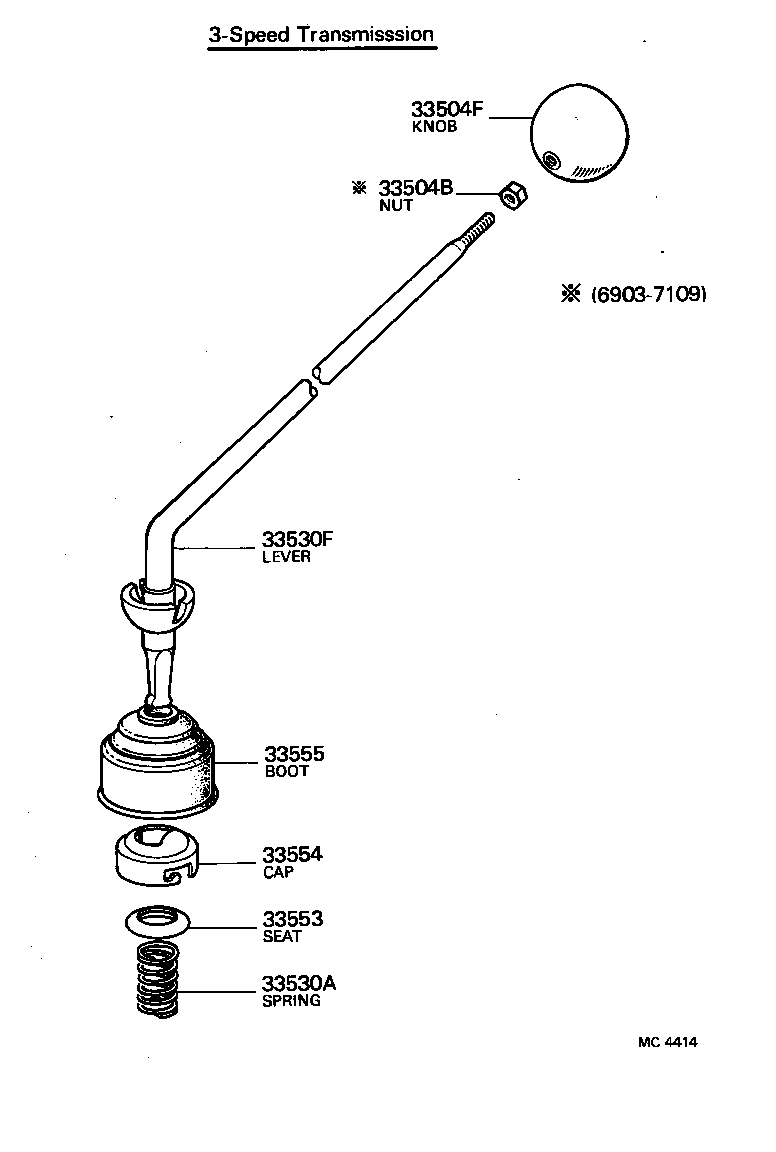

Click highlighted areas on diagram

diagram 33504B 33504F 33530A 33530F 33553 33554 33555
Part # Description Qty Price
33504B - NUT, HEXAGON
90170-10054

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90501-32051

FJ4#,55

 1
90501-32614

BJ4#,FJ4#,55,HJ45

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-60030

FJ4#

FOR 3-SPEED TRANSMISSION

 1
33541-60080

FJ4#,55,HJ45..LHD

FOR 4-SPEED TRANSMISSION

 1
33553 - SEAT, SHIFT LEVER SPRING
33553-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33553-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33554 - CAP, SHIFT LEVER
33554-60010

BJ4#,FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
33554-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33555 - BOOT, SHIFT LEVER
33555-55010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33555-60010

FJ4#,55,HJ45

FOR 4-SPEED TRANSMISSION

 1
