FJ43L-B (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Aug 1974
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7408)FJ4#,55

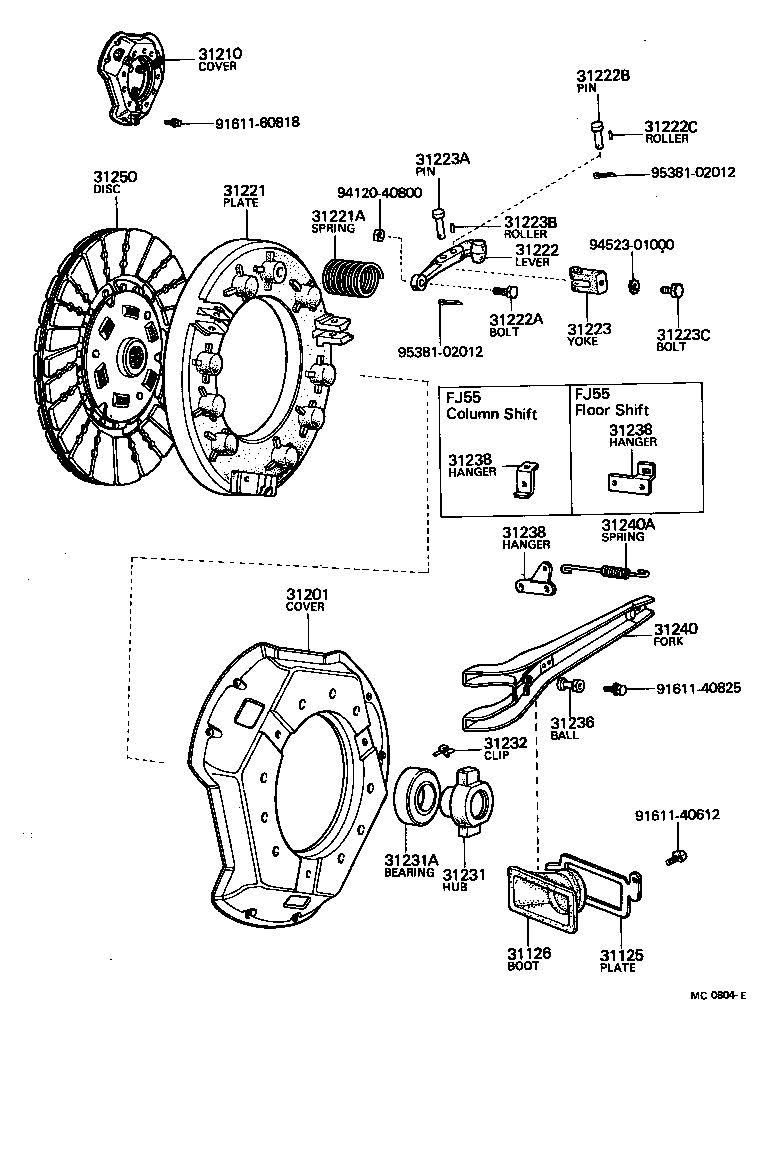

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31125 - PLATE, RELEASE FORK BOOT | ||||
| 31125-60010 |
FJ4# |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60010 |
FJ4#,55 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31211-55011 |
FJ4#,55 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-60010 |
FJ4#,55 |
1 | ||
| 31210-60021 |
FJ4#,55 HEAVY DUTY SPRING |
1 | ||
| 31210-60020 |
FJ4#,55 HEAVY DUTY SPRING |
1 | ||
| 31210-60011 |
FJ4#,55 |
1 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-55010 |
FJ4#,55,HJ45 |
1 | ||
| 31221A - SPRING, COMPRESSION(FOR CLUTCH) | ||||
| 90501-50056 |
FJ4#,55,HJ45 WD=5,CW=5 |
9 | ||
| 90501-50056 |
FJ4#,55,HJ45 WD=5,CW=5 |
6 | ||
| 90501-50047 |
FJ4#,55,HJ45 WD=5,CW=7 |
3 | ||
| 90501-50047 |
FJ4#,55 WD=5,CW=7, HEAVY DUTY |
9 | ||
| 31222 - LEVER, CLUTCH PRESSURE | ||||
| 31222-60010 |
FJ4#,55,HJ45 |
3 | ||
| 31222-60011 |
FJ4#,55,HJ45 |
3 | ||
| 31222A - BOLT, CLUTCH PRESSURE LEVER ADJUST | ||||
| 90106-08005 |
FJ4#,55,HJ45 |
3 | ||
| 31222B - PIN, W/HOLE(FOR CLUTCH PRESSURE LEVER) | ||||
| 90240-08011 |
FJ4#,55,HJ45 |
3 | ||
| 31222C - ROLLER OR BEARING, CLUTCH PRESSURE PLATE PIN | ||||
| 90361-02019 |
FJ4#,55,HJ45 |
45 | ||
| 31223 - YOKE, CLUTCH RELEASE LEVER | ||||
| 31223-55040 |
FJ4#,55,HJ45 |
3 | ||
| 31223A - PIN(FOR CLUTCH PRESSURE LEVER) | ||||
| 90249-06003 |
FJ4#,55,HJ45 |
3 | ||
| 31223B - ROLLER, CLUTCH PRESSURE LEVER | ||||
| 90361-06020 |
FJ4#,55,HJ45 |
3 | ||
| 31223C - BOLT, HEXAGON(FOR CLUTCH RELEASE LEVER YOKE) | ||||
| 90101-10077 |
FJ4#,55,HJ45 |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-60010 |
FJ4#,55 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-45015 |
FJ4#,55,HJ45 |
1 | ||
| 90363-45079 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-55010 |
FJ4#,55 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-60010 |
FJ4#,55 |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-60020 |
FJ4# |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-60020 |
FJ4# |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-60020 |
FJ4# |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-60010 |
FJ4#,55 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-18055 |
FJ4#,HJ45 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-55031 |
FJ4#,55 |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91611-40825 | ||||
| 91611-60818 | ||||
| 94120-40800 | ||||
| 94523-01000 | ||||
| 95381-02012 | ||||
