FJ43L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
Common parts
90179-08123
91661-60816
92122-60832
93220-16012

(6903-7309)F

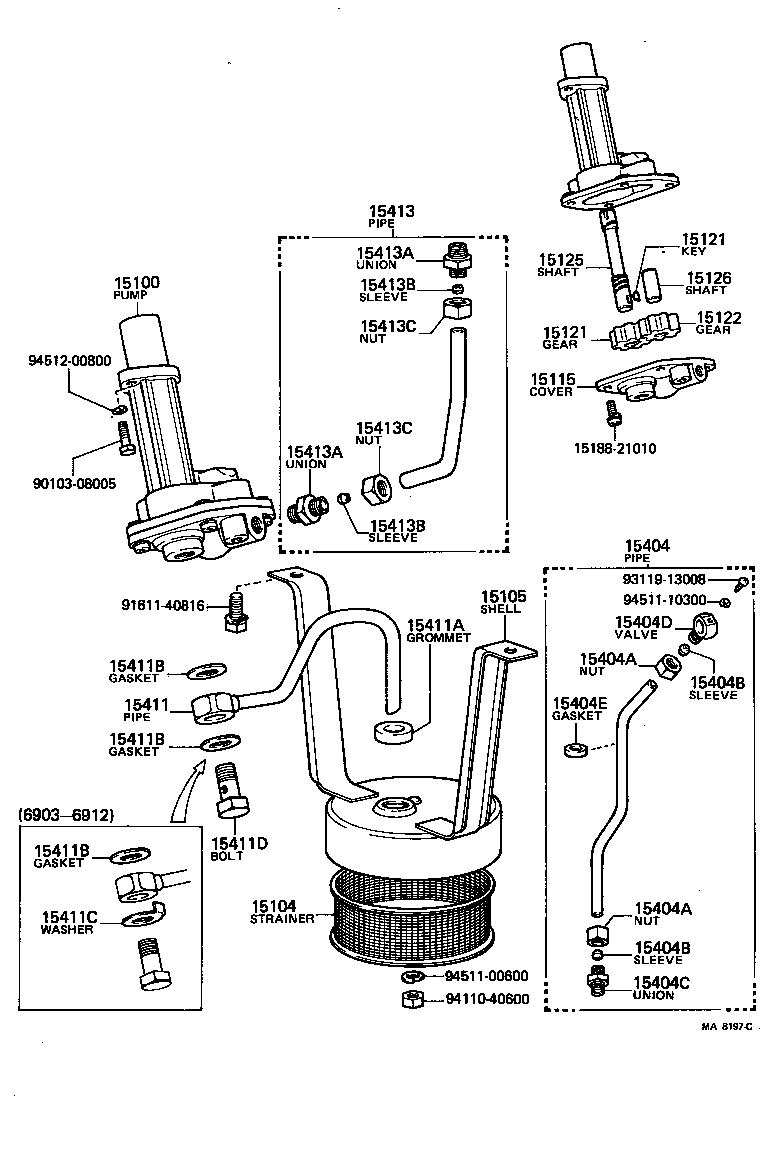

Click highlighted areas on diagram

diagram 15100 15104 15105 15115 15121 15121 15122 15125 15126 1518821010 15404 15404A 15404A 15404B 15404B 15404C 15404D 15404E 15411 15411A 15411B 15411B 15411B 15411C 15411D 15413 15413A 15413A 15413B 15413B 15413C 15413C 9010308005 9161140816 9311913008 9411040600 9451100600 9451110300 9451200800
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-60012

F..FJ4#,55

 1
15104 - STRAINER SUB-ASSY, OIL
15104-60010

F,2F..FJ4#,55

 1
15105 - SHELL SUB-ASSY, OIL STRAINER
15105-60040

F..FJ4#,55

 1
15105-60021

F..FJ4#

 1
15115 - COVER, OIL PUMP
15115-60012

F..FJ4#,55

 1
15121 - GEAR, OIL PUMP DRIVE
15121-60011

F..FJ4#,55

N=7

 1
15121 - GEAR, OIL PUMP DRIVE
15121-60011

F..FJ4#,55

N=7

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

F..FJ4#,55

N=7

 1
15125 - SHAFT, OIL PUMP
15125-60012

F..FJ4#,55

 1
15126 - SHAFT, OIL PUMP DRIVEN
15126-60010

F..FJ4#,55

 1
15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL
15404-60010

F..FJ4#,55

 1
15404-60020

F..FJ4#,55

 1
15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION
90402-10013

F..FJ4#,55

 2
15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION
90402-10013

F..FJ4#,55

 2
15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL
90410-05002

F..FJ4#,55

 2
15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL
90410-05002

F..FJ4#,55

 2
15404C - UNION, VALVE ROCKER SHAFT OIL PIPE
90404-10026

F..FJ4#,55

 1
15404D - VALVE, ROCKER SHAFT OIL PIPE UNION
90405-10095

F..FJ4#,55

 1
90405-10102

F..FJ4#,55

 1
15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION
90202-03018

F..FJ4#,55

 1
15411 - PIPE, OIL PUMP INLET
15401-60021

F..FJ4#

 1
15401-60040

F..FJ4#,55

 1
15411A - GROMMET(FOR OIL PUMP INLET PIPE)
90562-13021

F..FJ4#,55

 1
15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE)
90430-18012

F,2F..FJ4#,55

 2
15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE)
90430-18012

F,2F..FJ4#,55

 2
15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE)
90430-18012

F,2F..FJ4#,55

 2
15411C - WASHER, LOCK(FOR OIL PUMP INLET PIPE)
90215-18011

F..FJ4#,55

 1
15411D - BOLT, UNION(FOR OIL PUMP INLET PIPE)
90401-18063

F..FJ4#,55

 1
90401-18008

F..FJ4#,55

 1
15413 - PIPE, OIL PUMP OUTLET
15403-60010

F..FJ4#,55

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

F,2F..FJ4#,55

 2
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

F,2F..FJ4#,55

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

F,2F..FJ4#,55

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

F,2F..FJ4#,55

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

F,2F..FJ4#,55

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

F,2F..FJ4#,55

 2
Common parts
15188-21010
90103-08005
91611-40816
93119-13008
94110-40600
94511-00600
94511-10300
94512-00800
