FJ43- (1969)
Toyota Land Cruiser
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-10101 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8008-8506)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91665-40820 | ||||
| 91666-40620 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||

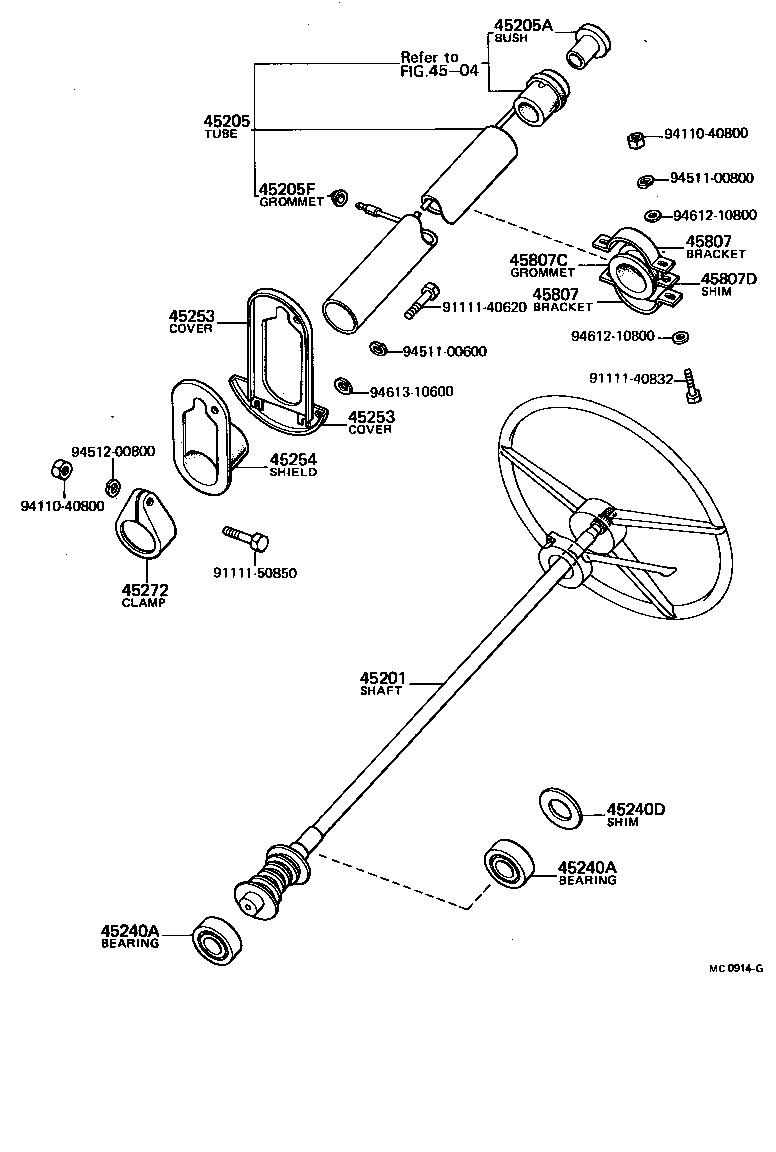

(6903-7209)FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60012 |
FJ40,43..RHD SPLINE N=33 |
1 | ||
| 45201-60032 |
FJ40,43,45,HJ45..RHD SPLINE N=33 |
1 | ||
| 45201-60011 |
FJ40,43..RHD SPLINE N=36 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60020 |
FJ40,43..RHD |
1 | ||
| 45205-60040 |
FJ40,43,45,HJ45..RHD |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-18026 |
FJ4#,HJ45 |
1 | ||
| 45205F - GROMMET, STEERING COLUMN | ||||
| 90480-12069 |
FJ4#,HJ45 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30206 |
FJ4#,55 FOR FRONT |
1 | ||
| 97600-30205 |
FJ4#,55 FOR REAR |
1 | ||
| 97600-30205 |
FJ4#,HJ45 FOR REAR |
1 | ||
| 97600-30206 |
FJ4#,HJ45 FOR FRONT |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30206 |
FJ4#,55 FOR FRONT |
1 | ||
| 97600-30205 |
FJ4#,55 FOR REAR |
1 | ||
| 97600-30205 |
FJ4#,HJ45 FOR REAR |
1 | ||
| 97600-30206 |
FJ4#,HJ45 FOR FRONT |
1 | ||
| 45240D - SHIM(FOR STEERING WORM BEARING ADJUST) | ||||
| 90564-40037 |
FJ4#,55 T=0.5 |
1 | ||
| 90564-40038 |
FJ4#,55 T=0.2 |
1 | ||
| 90564-40037 |
FJ4#,HJ45 T=0.5 |
1 | ||
| 90564-40039 |
FJ4#,55 T=0.1 |
1 | ||
| 90564-40038 |
FJ4#,HJ45 T=0.2 |
1 | ||
| 90564-40039 |
FJ4#,HJ45 T=0.1 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55673-60010 |
FJ4#,HJ45 UPPER |
1 | ||
| 55674-60010 |
FJ4#,HJ45 LOWER |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55673-60010 |
FJ4#,HJ45 UPPER |
1 | ||
| 55674-60010 |
FJ4#,HJ45 LOWER |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 55122-60011 |
FJ4#,HJ45 FOR COLUMN SHIFT |
1 | ||
| 55122-60021 |
FJ4#,HJ45 FOR FLOOR SHIFT |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-55010 |
FJ4#,55,HJ45 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55662-60020 |
FJ4# LOWER,FOR TANDEM M/C |
1 | ||
| 55662-60020 |
FJ40,43 LOWER,FOR TANDEM M/C |
1 | ||
| 55661-60020 |
FJ4# UPPER.FOR TANDEM M/C |
1 | ||
| 55661-60020 |
FJ40,43 UPPER.FOR TANDEM M/C |
1 | ||
| 55661-60010 |
BJ4#,FJ4#,HJ45 UPPER.FOR SINGLE M/C |
1 | ||
| 55662-60010 |
BJ4#,FJ4#,HJ45 LOWER,FOR SINGLE M/C |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55662-60020 |
FJ4# LOWER,FOR TANDEM M/C |
1 | ||
| 55662-60020 |
FJ40,43 LOWER,FOR TANDEM M/C |
1 | ||
| 55661-60020 |
FJ4# UPPER.FOR TANDEM M/C |
1 | ||
| 55661-60020 |
FJ40,43 UPPER.FOR TANDEM M/C |
1 | ||
| 55661-60010 |
BJ4#,FJ4#,HJ45 UPPER.FOR SINGLE M/C |
1 | ||
| 55662-60010 |
BJ4#,FJ4#,HJ45 LOWER,FOR SINGLE M/C |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-45092 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45807D - SHIM, STEERING COLUMN CLAMP | ||||
| 55614-60010 |
BJ4#,FJ4#,HJ45 |
4 | ||
| Common parts | ||||
| 91111-40620 | ||||
| 91111-40832 | ||||
| 91111-50850 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10600 | ||||
| Linked diagrams | ||||
| 4504 | ||||

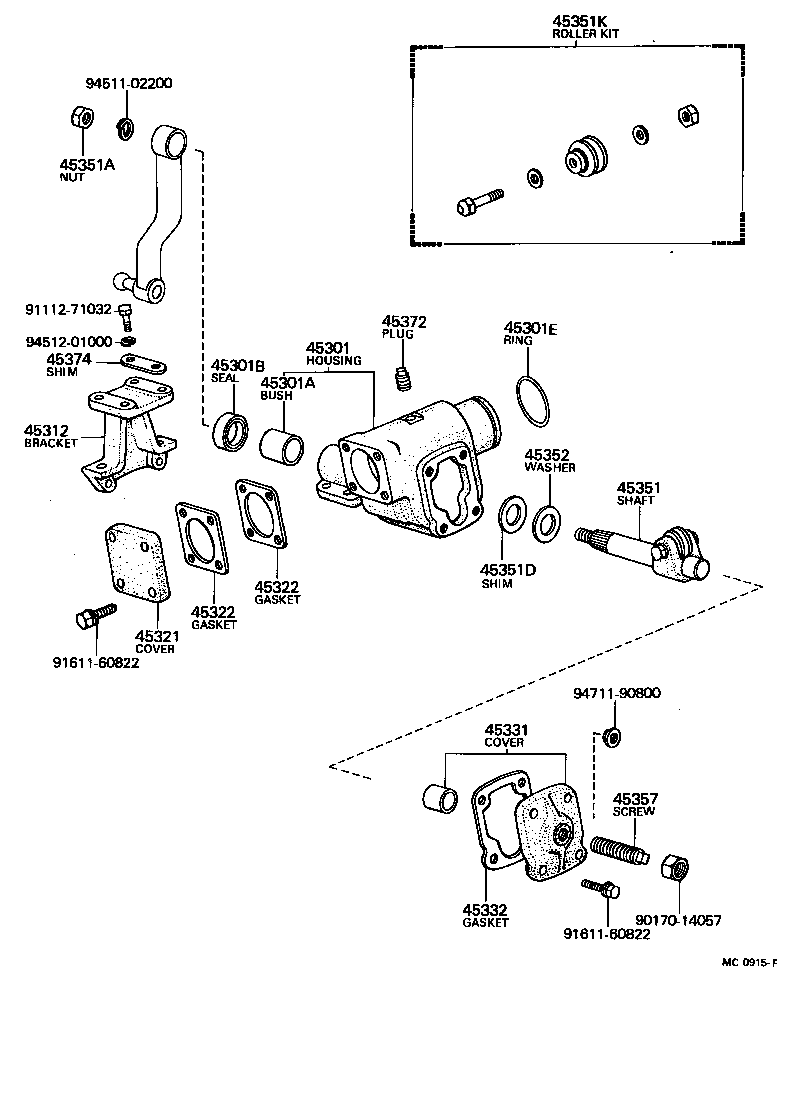

(6903-7209)FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-25011 |
FJ40,43,45,HJ45..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73018 |
FJ4#,HJ45 |
1 | ||
| 90999-73018 |
FJ4#,55 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45301E - RING, O(FOR STEERING GEAR HOUSING) | ||||
| 90301-29035 |
FJ4#,HJ45 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60012 |
FJ40,43,45,HJ45..RHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-60012 |
FJ4#,HJ45 |
1 | ||
| 45321-60012 |
FJ4#,55 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45324-55010 |
FJ4#,55 T=0.3 |
2 | ||
| 45322-60010 |
FJ4#,HJ45 T=0.5 |
2 | ||
| 45322-55010 |
FJ4#,HJ45 T=0.1 |
2 | ||
| 45322-55010 |
FJ4#,55 T=0.1 |
2 | ||
| 45324-55010 |
FJ4#,HJ45 T=0.3 |
2 | ||
| 45323-55010 |
FJ4#,HJ45 T=0.2 |
2 | ||
| 45323-55010 |
FJ4#,55 T=0.2 |
2 | ||
| 45322-60010 |
FJ4#,55 T=0.5 |
2 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45324-55010 |
FJ4#,55 T=0.3 |
2 | ||
| 45322-60010 |
FJ4#,HJ45 T=0.5 |
2 | ||
| 45322-55010 |
FJ4#,HJ45 T=0.1 |
2 | ||
| 45322-55010 |
FJ4#,55 T=0.1 |
2 | ||
| 45324-55010 |
FJ4#,HJ45 T=0.3 |
2 | ||
| 45323-55010 |
FJ4#,HJ45 T=0.2 |
2 | ||
| 45323-55010 |
FJ4#,55 T=0.2 |
2 | ||
| 45322-60010 |
FJ4#,55 T=0.5 |
2 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-60010 |
FJ4#,55 |
1 | ||
| 45304-60010 |
FJ4#,HJ45 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-60010 |
FJ4#,55 |
1 | ||
| 45332-60010 |
FJ4#,HJ45 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45350-60010 |
FJ4#,HJ45..RHD |
1 | ||
| 45350-60010 |
FJ40,43,45,55..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45351D - SHIM(FOR STEERING SECTOR ADJUSTING) | ||||
| 90564-33110 |
FJ4#,55 T=0.30 |
3 | ||
| 90564-33106 |
FJ4#,HJ45 T=0.50 |
4 | ||
| 90564-33106 |
FJ4#,55 T=0.50 |
4 | ||
| 90564-33113 |
FJ4#,55 T=1.00 |
9 | ||
| 90564-33110 |
FJ4#,HJ45 T=0.30 |
3 | ||
| 90564-33113 |
FJ4#,HJ45 T=1.00 |
9 | ||
| 45351K - ROLLER KIT, STEERING SECTOR | ||||
| 04452-55010 |
FJ4#,55 |
1 | ||
| 04452-55010 |
FJ4#,HJ45 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-55010 |
FJ4#,HJ45 |
1 | ||
| 45352-55010 |
FJ4#,55 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90113-14012 |
FJ4#,55 |
1 | ||
| 90113-14012 |
FJ4#,HJ45 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90345-53020 |
FJ4#,HJ45 |
1 | ||
| 90345-53008 |
FJ4#,55 |
1 | ||
| 90345-53020 |
FJ4#,55 ISO |
1 | ||
| 45374 - SHIM, STEERING POST ADJUSTING | ||||
| 45374-60010 |
FJ4#,HJ45 T=0.3 |
1 | ||
| 45375-60010 |
FJ4#,HJ45 T=0.6 |
1 | ||
| 45376-60010 |
FJ4#,HJ45 T=0.9 |
1 | ||
| Common parts | ||||
| 90170-14057 | ||||
| 91112-71032 | ||||
| 91611-60822 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
| 94711-90800 | ||||
