FJ42L- (1969)

Toyota Land Cruiser

Production Mar 1969 - Mar 1972
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910346 9017908123 9017908123 9017908123 9161160825 9161160825 9165160816 9418461000
Part # Description Qty Price
Common parts
90119-10346
90179-08123
91611-60825
91651-60816
94184-61000

(6903-7501)F

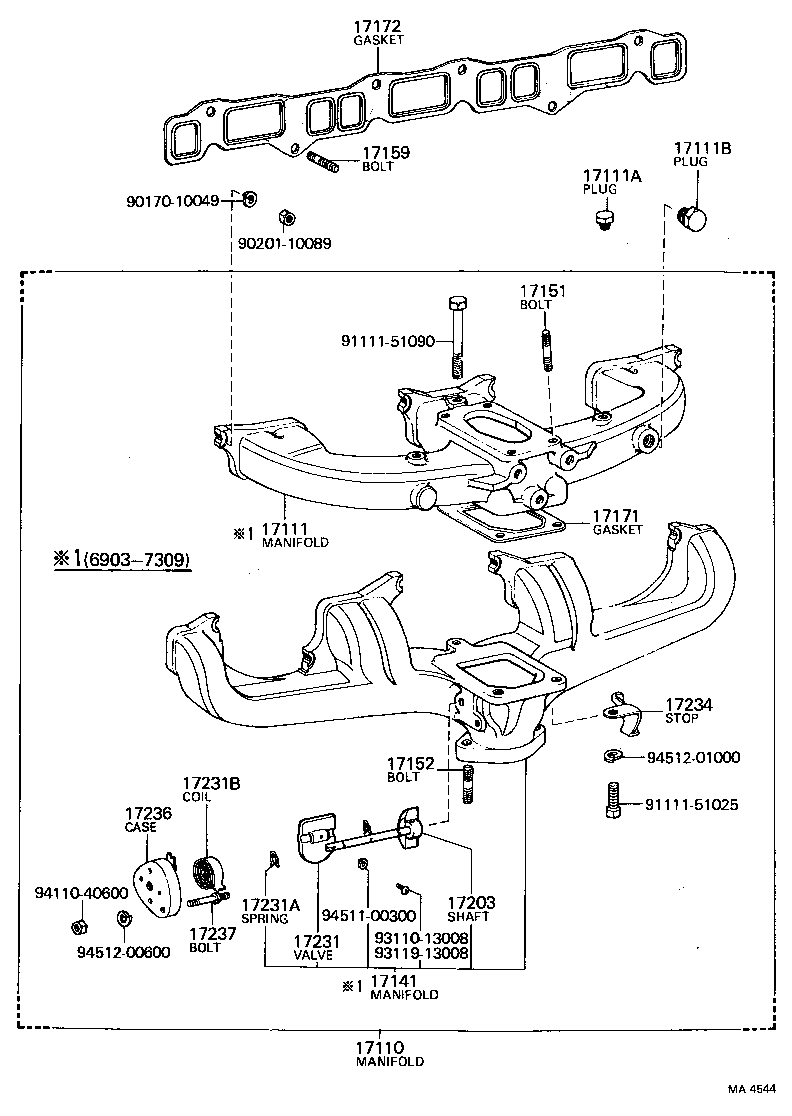

Click highlighted areas on diagram

diagram 17110 17111 17111A 17111B 17141 17151 17152 17159 17171 17172 17203 17231 17231A 17231B 17234 17236 17237 9017010049 9020110089 9111151025 9111151090 9311013008 9311913008 9411040600 9451100300 9451200600 9451201000
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-60120

F..FJ4#,55

 1
17111 - MANIFOLD, INTAKE
17111-60070

F..FJ4#,55

 1
17111-60090

F..FJ4#,55

 1
17111A - PLUG, NO.1
90345-51005

F,2F..FJ4#,55

 2
17111B - PLUG, NO.2
90345-54006

F..FJ4#,55

 3
17141 - MANIFOLD, EXHAUST
17104-60040

F..FJ4#,55

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-10137

F..FJ4#,55

L=32.5,S=15&12

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10065

F..FJ4#,55

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10042

F..FJ4#,55

L=37,S=20&13

 6
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-60030

F..FJ4#,55

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-60020

F..FJ4#,55

 1
17203 - SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL
17203-60041

F..FJ4#,55

 1
17231 - VALVE, MANIFOLD HEAT CONTROL
17231-60040

F..FJ4#,55

 1
17231A - SPRING, RETAINER(FOR MANIFOLD HEAT CONTROL VALVE)
90524-06005

F..FJ4#,55

 2
17231B - COIL, HEAT CONTROL VALVE
90510-06008

F..FJ4#,55

 1
17234 - STOP, COUNTER WEIGHT
17234-60030

F..FJ4#,55

 1
17236 - CASE, HEAT CONTROL BIMETAL SET
17236-60010

F..FJ4#,55

 1
17237 - BOLT, HEAT CONTROL CASE
17237-60010

F..FJ4#,55

 1
Common parts
90170-10049
90201-10089
91111-51025
91111-51090
93110-13008
93119-13008
94110-40600
94511-00300
94512-00600
94512-01000
