FJ40V-C (1972)
Toyota Land Cruiser
Production
Apr 1972
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

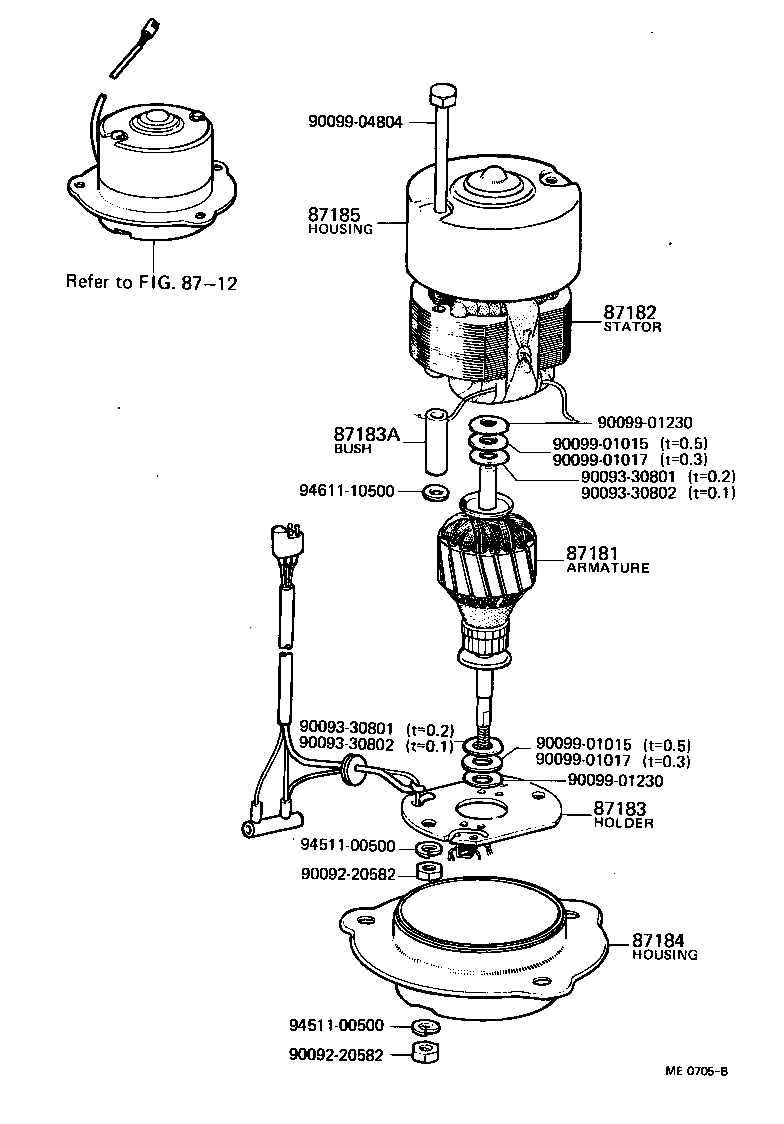

(6903-7304)FJ4#,HJ45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87181 - ARMATURE, BLOWER MOTOR | ||||
| 87181-20056 |
FJ4#,55,HJ45 |
1 | ||
| 87181-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87182 - STATOR, HEATER BLOWER MOTOR | ||||
| 87182-60091 |
FJ4#,55,HJ45 |
1 | ||
| 87182-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87183 - HOLDER, BLOWER MOTOR BRUSH | ||||
| 87183-10050 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87183-60091 |
FJ4#,55,HJ45 |
1 | ||
| 87183A - BUSH, HEATER BLOWER MOTOR BRUSH HOLDER | ||||
| 90099-19058 |
FJ4#,55,HJ45 |
2 | ||
| 90099-04042 |
FJ40,55..VKC,VLS,VTG FOR REAR |
2 | ||
| 87184 - HOUSING, BLOWER MOTOR, NO.1 | ||||
| 87184-60032 |
FJ4#,55,HJ45 |
1 | ||
| 87184-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87185 - HOUSING, BLOWER MOTOR, NO.2 | ||||
| 88554-12012 |
FJ4#,55,HJ45 |
1 | ||
| 87185-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| Common parts | ||||
| 90092-20582 | ||||
| 90093-30801 | ||||
| 90093-30802 | ||||
| 90099-01015 | ||||
| 90099-01017 | ||||
| 90099-01230 | ||||
| 90099-04804 | ||||
| 94511-00500 | ||||
| 94611-10500 | ||||
| Linked diagrams | ||||
| 8712 | ||||

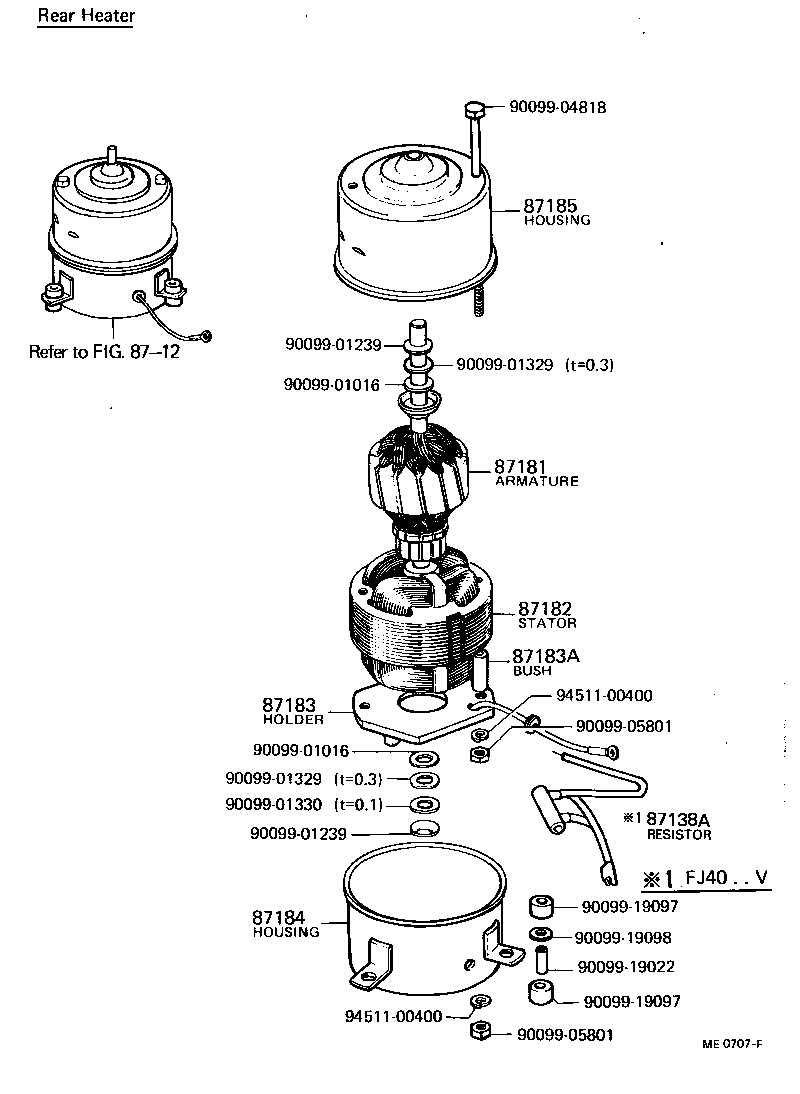

(7303-7309)V
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138A - RESISTOR, HEATER BLOWER | ||||
| 87187-60040 |
FJ40..V |
1 | ||
| 87181 - ARMATURE, BLOWER MOTOR | ||||
| 87181-20056 |
FJ4#,55,HJ45 |
1 | ||
| 87181-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87182 - STATOR, HEATER BLOWER MOTOR | ||||
| 87182-60091 |
FJ4#,55,HJ45 |
1 | ||
| 87182-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87183 - HOLDER, BLOWER MOTOR BRUSH | ||||
| 87183-10050 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87183-60091 |
FJ4#,55,HJ45 |
1 | ||
| 87183A - BUSH, HEATER BLOWER MOTOR BRUSH HOLDER | ||||
| 90099-19058 |
FJ4#,55,HJ45 |
2 | ||
| 90099-04042 |
FJ40,55..VKC,VLS,VTG FOR REAR |
2 | ||
| 87184 - HOUSING, BLOWER MOTOR, NO.1 | ||||
| 87184-60032 |
FJ4#,55,HJ45 |
1 | ||
| 87184-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87185 - HOUSING, BLOWER MOTOR, NO.2 | ||||
| 88554-12012 |
FJ4#,55,HJ45 |
1 | ||
| 87185-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| Common parts | ||||
| 90099-01016 | ||||
| 90099-01239 | ||||
| 90099-01329 | ||||
| 90099-01330 | ||||
| 90099-04818 | ||||
| 90099-05801 | ||||
| 90099-19022 | ||||
| 90099-19097 | ||||
| 90099-19098 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8712 | ||||
