FJ40V-C (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ40,FJ40,45..V ; (7808- )FJ55

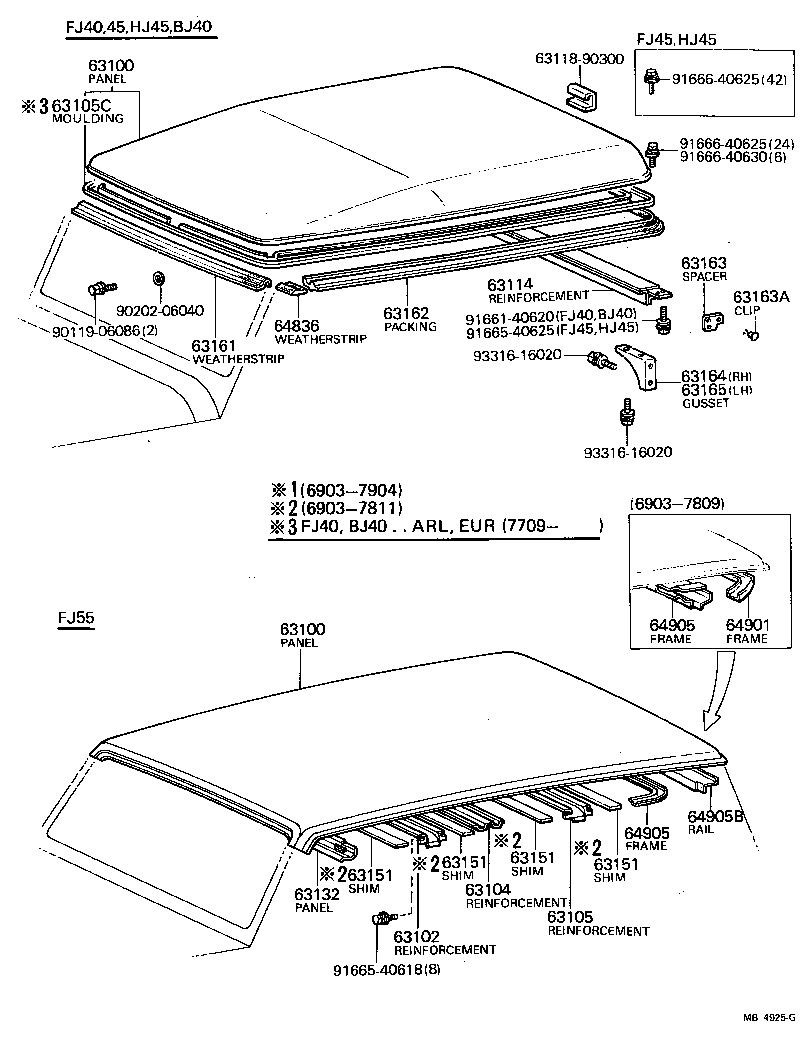

Click highlighted areas on diagram

diagram 63100 63100 63102 63104 63105 63105C 63114 6311890300 63132 63151 63151 63151 63151 63161 63162 63163 63163A 63164 63165 64836 64901 64905 64905 64905B 9011906086 9020206040 9166140620 9166540618 9166540625 9166640625 9166640625 9166640630 9331616020 9331616020
Part # Description Qty Price
63100 - PANEL ASSY, ROOF
63100-90301

BJ40,FJ40..V

 1
63100 - PANEL ASSY, ROOF
63100-90301

BJ40,FJ40..V

 1
63114 - REINFORCEMENT, ROOF PANEL, REAR
63106-60021

FJ40..VKC

 1
63161 - WEATHERSTRIP, ROOF
63161-60011

BJ40,FJ40,45,HJ45..PIC,V

 1
63163A - CLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET
90053-60501

FJ40..V

 6
90467-06004

FJ40..V

 6
63164 - GUSSET, ROOF DRIP MOULDING, RH
63165-60010

BJ40,FJ40,45,HJ45..V

 1
63165 - GUSSET, ROOF DRIP MOULDING, LH
63166-60010

BJ40,FJ40,45,HJ45..V

 1
64836 - WEATHERSTRIP, ROOF, FRONT
64836-90332

BJ40,FJ40,45,HJ45..PIC,V

 2
Common parts
63118-90300
90119-06086
90202-06040
91661-40620
91665-40618
91665-40625
91666-40625
91666-40630
93316-16020
