FJ40V-C (1972)
Toyota Land Cruiser
Production
Apr 1972
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

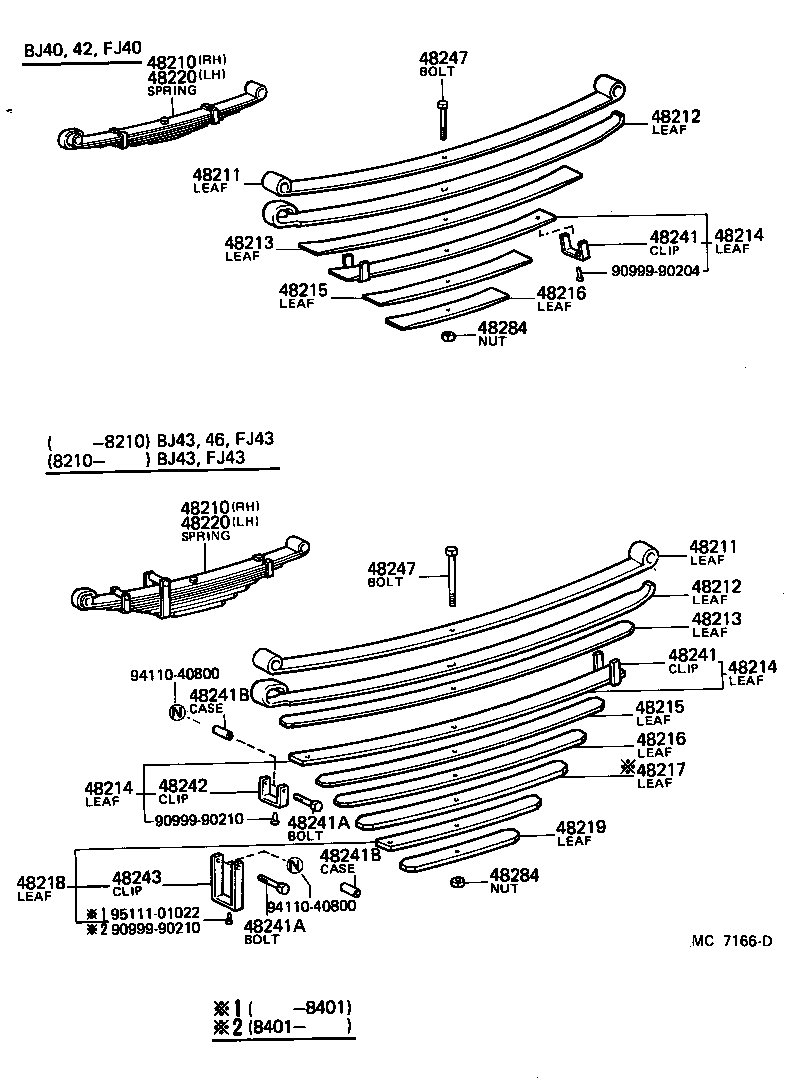

(8008-8210)BJ40,42,43,46,FJ40,43 ; (8210- )BJ40,42,43,FJ40,43
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-90204 | ||||
| 90999-90210 | ||||
| 94110-40800 | ||||
| 95111-01022 | ||||

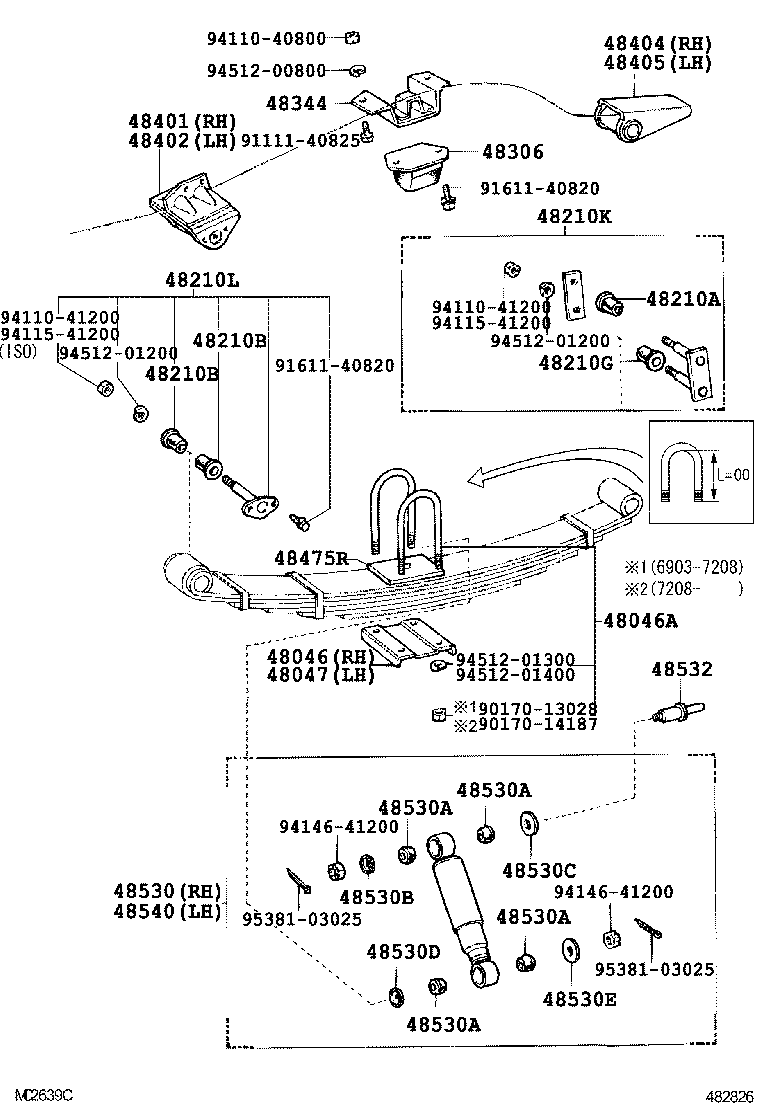

(6903-7710)BJ40,FJ40,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-60010 |
FJ40,42 |
1 | ||
| 48473-60011 |
BJ40,FJ40 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-13115 |
FJ40,42 L=165,D=13 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-60010 |
FJ40,42 |
1 | ||
| 48473-60011 |
BJ40,FJ40 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15016 |
BJ40,FJ40,42 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-15016 |
BJ40,FJ40,42 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-15016 |
BJ40,FJ40,42 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15016 |
BJ40,FJ40,42 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04481-60012 |
BJ40,FJ40,42 TYPE A |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04482-60010 |
BJ40,FJ40,42 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48304-60010 |
BJ40,FJ40,42,55 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48035-60010 |
BJ40,FJ40,42 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-60020 |
BJ40,FJ40,42 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-60020 |
BJ40,FJ40,42 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48405-60010 |
BJ40,FJ40,42 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48405-60010 |
BJ40,FJ40,42 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69045 |
BJ40,FJ40,42 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ4#,FJ4#,55,HJ45 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ4#,FJ4#,55,HJ45 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ4#,FJ4#,55,HJ45 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ4#,FJ4#,55,HJ45 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03004 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03003 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 48532 - PIN, REAR SHOCK ABSORBER PIVOT | ||||
| 48532-30010 |
FJ4#,55 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69045 |
BJ40,FJ40,42 |
1 | ||
| Common parts | ||||
| 90170-13028 | ||||
| 90170-14187 | ||||
| 91111-40825 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
| 94146-41200 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94512-01300 | ||||
| 94512-01400 | ||||
| 95381-03025 | ||||

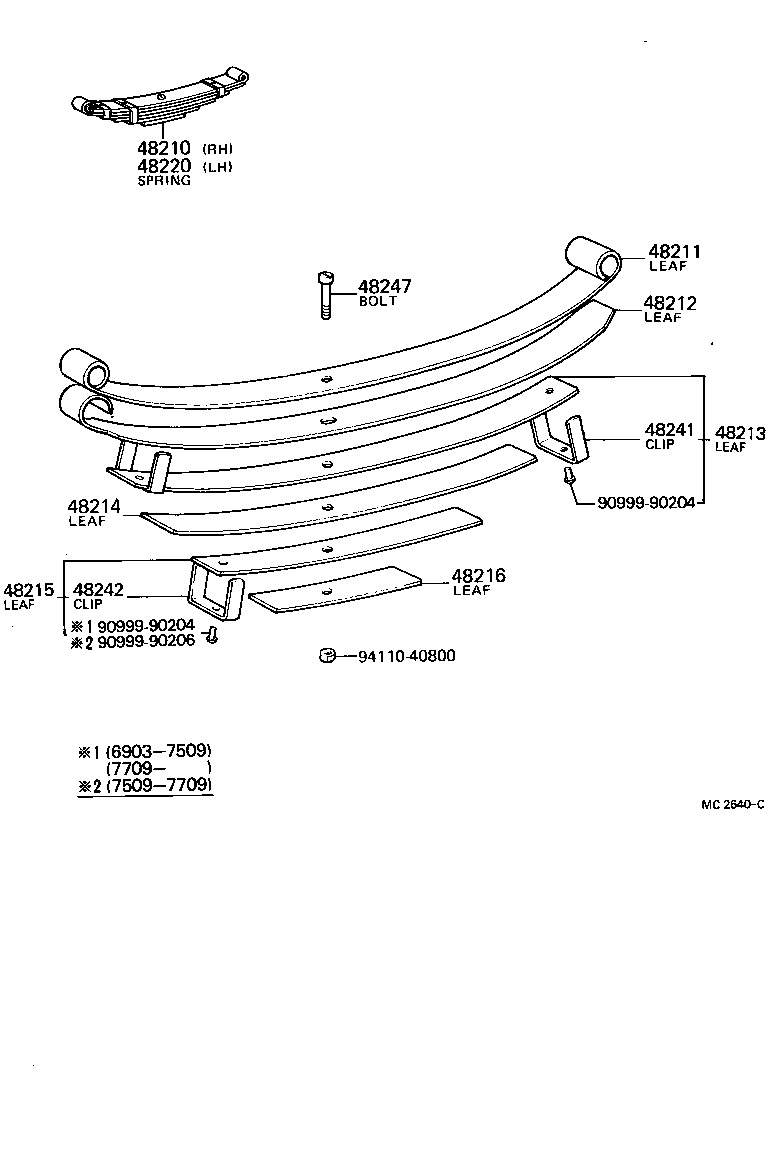

(6903-8007)BJ40,FJ40,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60120 |
BJ40,FJ40,42 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60120 |
BJ40,FJ40,42 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60120 |
BJ40,FJ40,42 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60120 |
BJ40,FJ40,42 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60120 |
BJ40,FJ40,42 L=733 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60120 |
BJ40,FJ40,42 L=525 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60120 |
BJ40,FJ40,42 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60120 |
BJ40,FJ40,42 |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48141-35012 |
FJ40,42 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-60120 |
FJ40,42 |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60120 |
BJ40,FJ40,42 |
2 | ||
| Common parts | ||||
| 90999-90204 | ||||
| 90999-90206 | ||||
| 94110-40800 | ||||
