FJ40V-C (1972)
Toyota Land Cruiser
Production
Apr 1972
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7509)

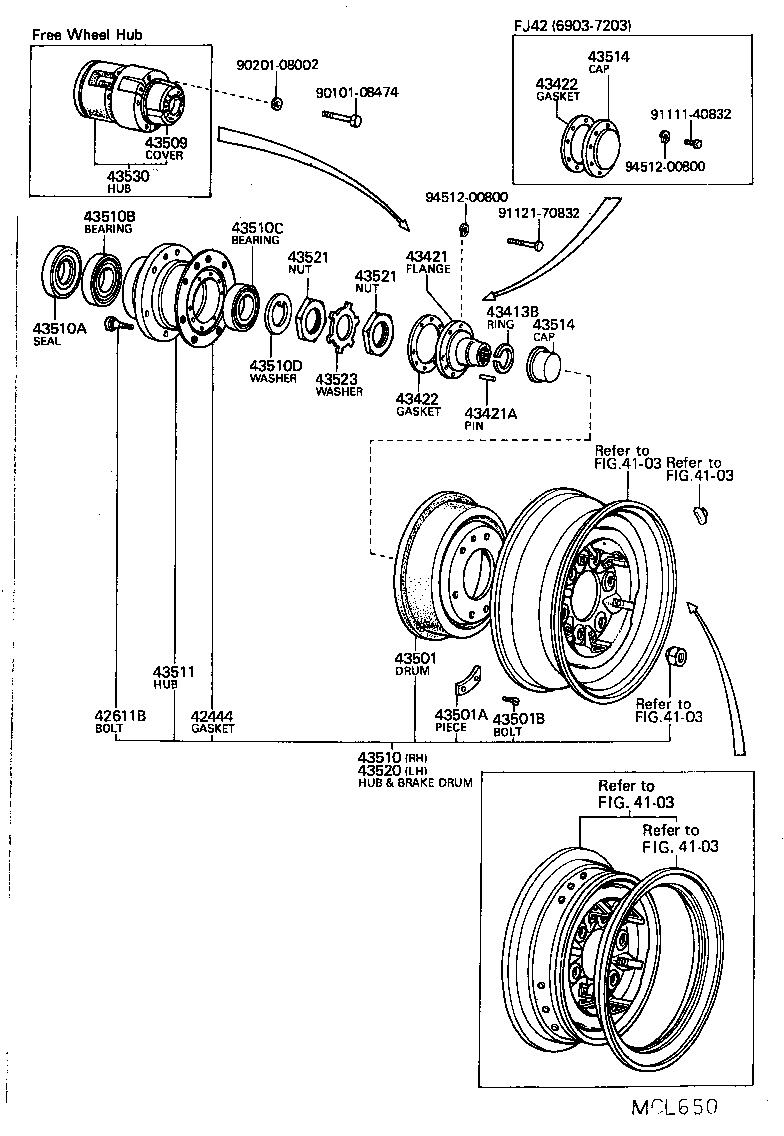

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42444 - GASKET, BRAKE DRUM (FOR FRONT AXLE) | ||||
| 42444-35010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02014 |
BJ4#,FJ4#,55,HJ45 |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-28038 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
BJ4#,FJ40,43,45,55,HJ45 |
4 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43501-60010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01027 |
BJ4#,FJ4#,55,HJ45 30G. |
1 | ||
| 90937-01028 |
BJ4#,FJ4#,55,HJ45 60G. |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10007 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90312-55010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-41002 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-38003 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-38013 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43511-60010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 43523-60010 |
FJ4#,55 |
2 | ||
| Common parts | ||||
| 90101-08474 | ||||
| 90201-08002 | ||||
| 91111-40832 | ||||
| 91121-70832 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4103 | ||||
