FJ40V-C (1972)
Toyota Land Cruiser
(6903-7901)BJ4#,FJ40,43,45,55,HJ45 ; (7808- )FJ55 ; (7901-8007)BJ4#,FJ4#,HJ45..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

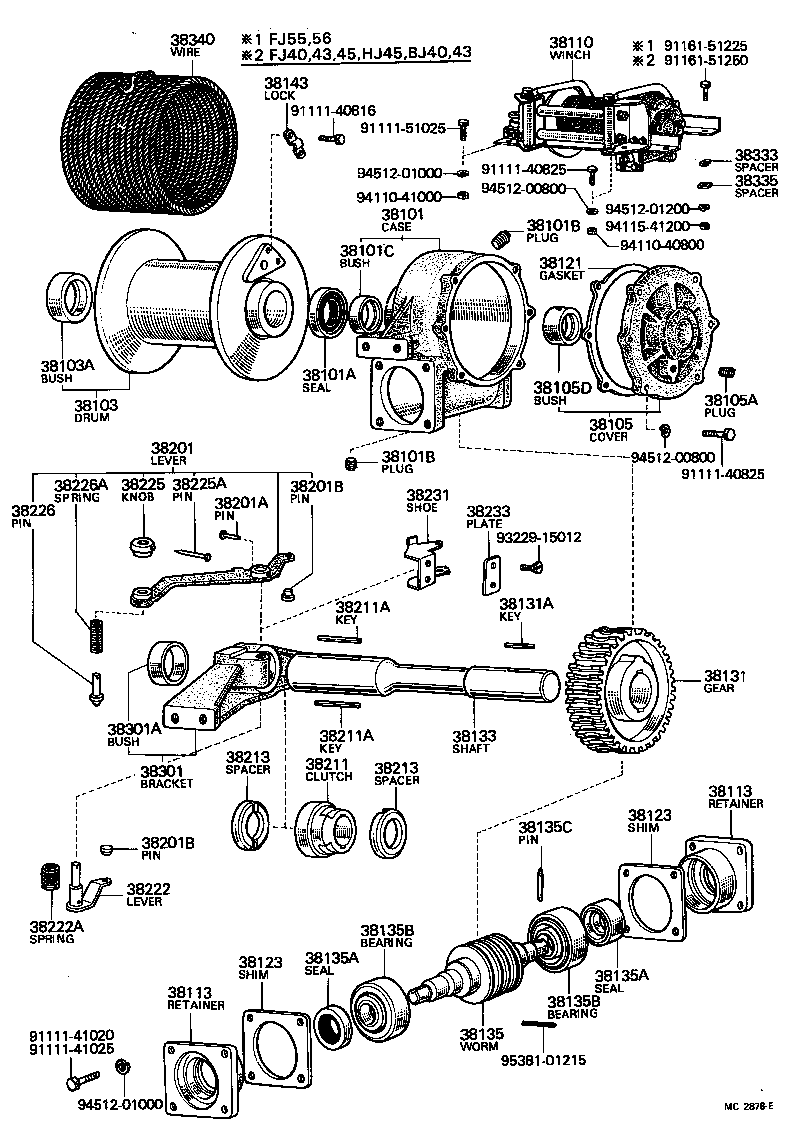

| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE) | ||||
| 90311-38043 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) | ||||
| 90345-54001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) | ||||
| 90345-54001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) | ||||
| 90380-38019 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38103A - BUSH (FOR WINCH DRUM) | ||||
| 90380-38005 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38105A - PLUG (FOR WINCH SIDE GEAR CASE) | ||||
| 90345-53008 |
FJ40,43,45,55 |
1 | ||
| 38105D - BUSH (FOR WINCH GEAR CASE COVER) | ||||
| 90380-38019 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38110 - WINCH ASSY | ||||
| 38110-60010 |
BJ4#,FJ40,43,45,HJ45 MECHANICAL |
1 | ||
| 38113 - RETAINER, WORM BEARING | ||||
| 38113-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38113 - RETAINER, WORM BEARING | ||||
| 38113-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38123 - SHIM, ADJUST | ||||
| 38123-60010 |
BJ4#,FJ40,43,45,55,HJ45 T=0.228 |
4 | ||
| 38124-60010 |
BJ4#,FJ40,43,45,55,HJ45 T=0.5 |
4 | ||
| 38123 - SHIM, ADJUST | ||||
| 38123-60010 |
BJ4#,FJ40,43,45,55,HJ45 T=0.228 |
4 | ||
| 38124-60010 |
BJ4#,FJ40,43,45,55,HJ45 T=0.5 |
4 | ||
| 38131 - GEAR, WORM | ||||
| 38131-60010 |
BJ4#,FJ40,43,45,55,HJ45 N=33 |
1 | ||
| 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) | ||||
| 90281-12001 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38133 - SHAFT, WORM GEAR | ||||
| 38133-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38135 - WORM, WINCH | ||||
| 38135-60010 |
BJ4#,FJ40,43,45,55,HJ45 N=1 |
1 | ||
| 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) | ||||
| 90311-28003 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) | ||||
| 90311-28003 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38135C - PIN, SAFETY LOCK | ||||
| 90255-04001 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38201A - PIN, WINCH CLUTCH LEVER | ||||
| 90241-04007 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38211 - CLUTCH, WINCH | ||||
| 38211-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38222 - LEVER, WINCH CLUTCH, LOWER | ||||
| 38222-60010 |
FJ40,43,45,55,HJ45 |
1 | ||
| 38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER) | ||||
| 90508-23031 |
FJ40,43,45,55,HJ45 |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38225A - PIN, WINCH CLUTCH LEVER KNOB | ||||
| 90241-03008 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38226 - PIN, LEVER SHIFT LOCK | ||||
| 38226-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38226A - SPRING, LEVER SHIFT LOCK PIN | ||||
| 90501-12167 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60011 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38233 - PLATE, BRAKE | ||||
| 38233-66020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38301 - BRACKET SUB-ASSY, WINCH END | ||||
| 38301-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38301A - BUSH (FOR WINCH END BRACKET) | ||||
| 90380-38005 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38333 - SPACER, MEMBER, NO.1 | ||||
| 38333-60010 |
BJ4#,FJ40,43,45,HJ45 |
2 | ||
| 38335 - SPACER, MEMBER, NO.2 | ||||
| 38334-60010 |
BJ4#,FJ40,43,45,HJ45 |
2 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 91111-51025 | ||||
| 91161-51225 | ||||
| 91161-51250 | ||||
| 93229-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 95381-01215 | ||||
(6903-7901)BJ4#,FJ40,43,45,55,HJ45 ; (7808- )FJ55 ; (7901-8007)BJ4#,FJ4#,HJ45..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

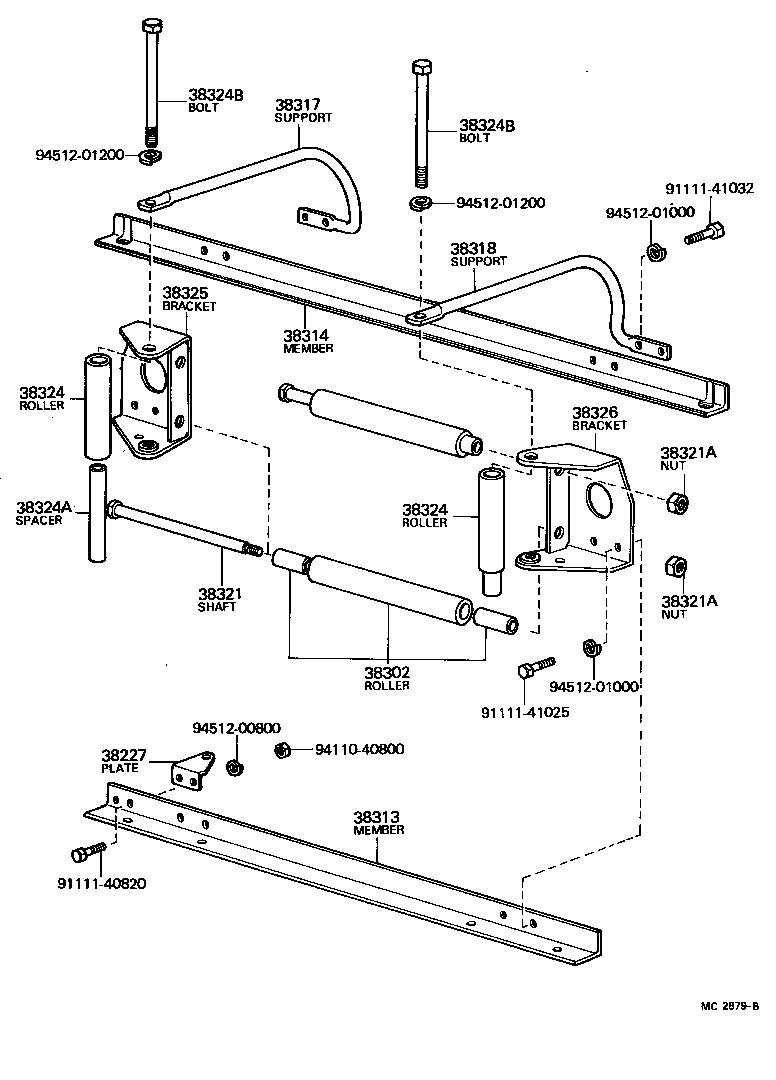

| 38227 - PLATE, WINCH CLUTCH LEVER SHIFT LOCK | ||||
| 38227-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38302 - ROLLER SUB-ASSY, WINCH WIRE GUIDE | ||||
| 38302-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38313 - MEMBER, FRONT BASE | ||||
| 38313-60010 |
BJ4#,FJ40,43,45,HJ45 |
1 | ||
| 38314 - MEMBER, REAR BASE | ||||
| 38314-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38317 - SUPPORT, ROLLER BRACKET, NO.1 | ||||
| 38317-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38318 - SUPPORT, ROLLER BRACKET, NO.2 | ||||
| 38318-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38321A - NUT, HEXAGON (FOR WINCH ROLLER SHAFT) | ||||
| 90170-14057 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38321A - NUT, HEXAGON (FOR WINCH ROLLER SHAFT) | ||||
| 90170-14057 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38324A - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 90560-13080 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38324B - BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER) | ||||
| 90101-12081 |
FJ40,43,45,55 |
2 | ||
| 38324B - BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER) | ||||
| 90101-12081 |
FJ40,43,45,55 |
2 | ||
| 38325 - BRACKET, WINCH ROLLER, NO.1 | ||||
| 38325-60010 |
FJ40,43,45,55 |
1 | ||
| 38326 - BRACKET, WINCH ROLLER, NO.2 | ||||
| 38326-60010 |
FJ40,43,45,55 |
1 | ||
| Common parts | ||||
| 91111-40820 | ||||
| 91111-41025 | ||||
| 91111-41032 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
