FJ40V-C (1972)
Toyota Land Cruiser

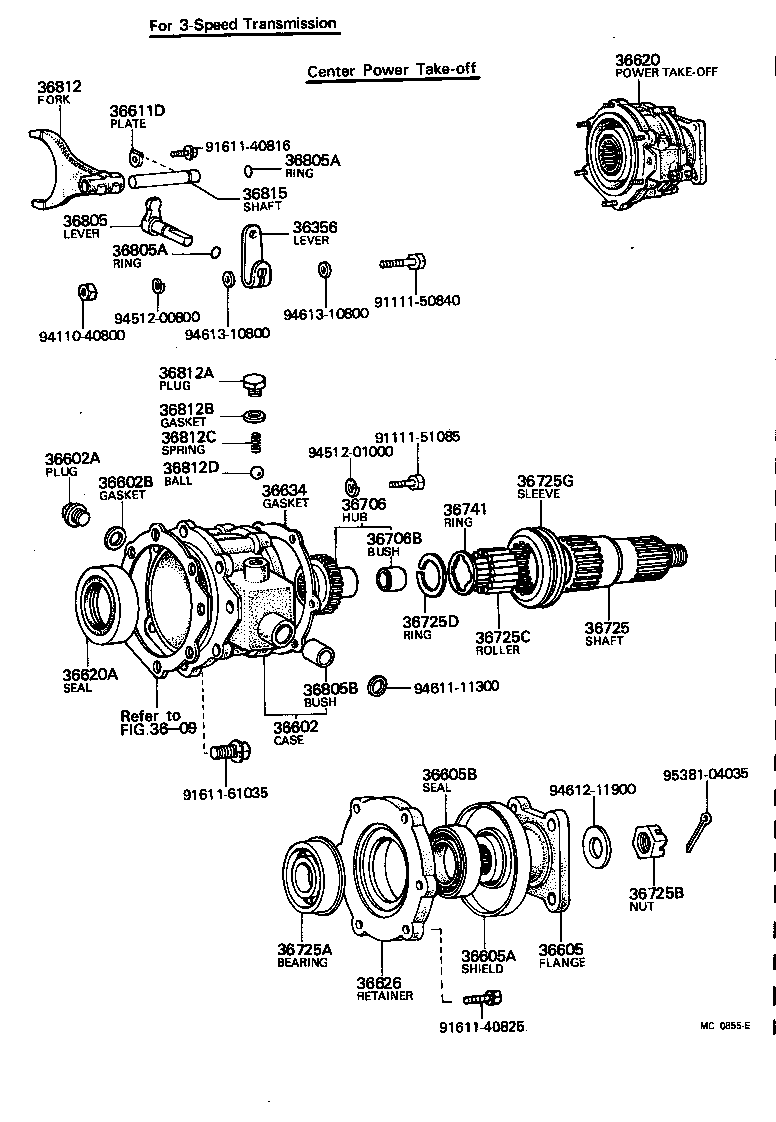

(6903-7901)FJ40,43,45 ; (7501-7901)FJ55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36356 - LEVER, HIGH & LOW SHIFT LINK,NO.1(FOR CENTER POWER TAKE | ||||
| 36355-60010 |
FJ40,43,45 |
1 | ||
| 36602 - CASE SUB-ASSY, CENTER POWER TAKE-OFF | ||||
| 36602-60010 |
FJ40,43,45 |
1 | ||
| 36602A - PLUG (FOR CENTER POWER TAKE-OFF CASE) | ||||
| 90341-18002 |
FJ40,43,45 |
2 | ||
| 36602B - GASKET (FOR CENTER POWER TAKE-OFF CASE) | ||||
| 12157-10010 |
FJ40,43,45 |
2 | ||
| 36605 - FLANGE, UNIVERSAL JOINT (FOR CENTER POWER TAKE-OFF) | ||||
| 37324-60060 |
FJ40,43,45 |
1 | ||
| 36605A - SHIELD, DUST (FOR CENTER POWER TAKE-OFF FLANGE) | ||||
| 37341-55020 |
FJ40,43,45 |
1 | ||
| 36605B - SEAL, OIL (FOR CENTER POWER TAKE-OFF FLANGE) | ||||
| 90311-47034 |
FJ40,43,45 |
1 | ||
| 36611D - PLATE, LOCK (FOR POWER TAKE-OFF CASE) | ||||
| 36726-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36620 - POWER TAKE-OFF ASSY, CENTER | ||||
| 36620-60010 |
FJ40,43,45 FOR 3-SPEED TRANSMISSION |
1 | ||
| 36620A - SEAL, TYPE T OIL (FOR CENTER POWER TAKE-OFF) | ||||
| 90311-38028 |
FJ40,43,45 |
1 | ||
| 36626 - RETAINER, CENTER POWER TAKE-OFF BEARING | ||||
| 36626-60010 |
BJ4#,FJ40,43,45,55 |
2 | ||
| 36634 - GASKET, CENTER POWER TAKE-OFF BEARING RETAINER | ||||
| 36634-60010 |
FJ40,43,45 |
1 | ||
| 36706 - HUB SUB-ASSY, CENTER POWER TAKE-OFF CLUTCH | ||||
| 36706-60010 |
FJ40,43,45 |
1 | ||
| 36706B - BUSH (FOR CENTER POWER TAKE-OFF HUB) | ||||
| 90380-21009 |
FJ40,43,45 |
1 | ||
| 36725 - SHAFT, CENTER POWER TAKE-OFF OUTPUT | ||||
| 36725-60010 |
FJ40,43,45 |
1 | ||
| 36725A - BEARING(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 97153-06307 |
FJ40,43,45 |
1 | ||
| 36725B - NUT, CASTLE(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90171-19012 |
FJ40,43,45 |
1 | ||
| 36725C - ROLLER(FOR CENTER POWER TAKE-OFF SHAFT) | ||||
| 90361-03017 |
FJ40,43,45 |
42 | ||
| 36725D - RING, HOLE(FOR CENTER POWER TAKE-OFF SHAFT) | ||||
| 90521-46037 |
FJ40,43,45 |
1 | ||
| 36725G - SLEEVE,TRANSFER HIGH&LOWER CLUTCH(FOR CENTER POWER TAKE | ||||
| 36235-60010 |
FJ40,43,45 |
1 | ||
| 36741 - RING, NEEDLE ROLLER STOP | ||||
| 36741-60010 |
FJ40,43,45 |
1 | ||
| 36805 - LEVER SUB-ASSY, POWER TAKE-OFF INNER SHIFT | ||||
| 36805-60010 |
FJ40,43,45 |
1 | ||
| 36805A - RING, O (FOR POWER TAKE-OFF INNER SHIFT LEVER) | ||||
| 90301-08029 |
FJ40,43,45 |
2 | ||
| 36805A - RING, O (FOR POWER TAKE-OFF INNER SHIFT LEVER) | ||||
| 90301-08029 |
FJ40,43,45 |
2 | ||
| 36805B - BUSH (FOR POWER TAKE-OFF INNER SHIFT LEVER) | ||||
| 90999-73013 |
FJ40,43,45 |
1 | ||
| 36812 - FORK, POWER TAKE-OFF SHIFT, NO.2 | ||||
| 36812-60010 |
FJ40,43,45 |
1 | ||
| 36812A - PLUG, POWER TAKE-OFF SHIFT FORK LOCK | ||||
| 90101-12037 |
FJ40,43,45 12-1.5PX9.4 |
1 | ||
| 36812B - GASKET, POWER TAKE-OFF SHIFT FORK LOCK BOLT | ||||
| 90430-12030 |
FJ40,43,45 |
1 | ||
| 36812C - SPRING, POWER TAKE-OFF SHIFT FORK LOCK | ||||
| 90501-12033 |
FJ40,43,45 |
1 | ||
| 36812D - BALL, POWER TAKE-OFF SHIFT FORK LOCK | ||||
| 90360-10003 |
FJ40,43,45 |
1 | ||
| 36815 - SHAFT, POWER TAKE-OFF FORK, NO.2 | ||||
| 36815-60010 |
FJ40,43,45 |
1 | ||
| Common parts | ||||
| 91111-50840 | ||||
| 91111-51085 | ||||
| 91611-40816 | ||||
| 91611-40825 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94611-11300 | ||||
| 94612-11900 | ||||
| 94613-10800 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 3609 | ||||

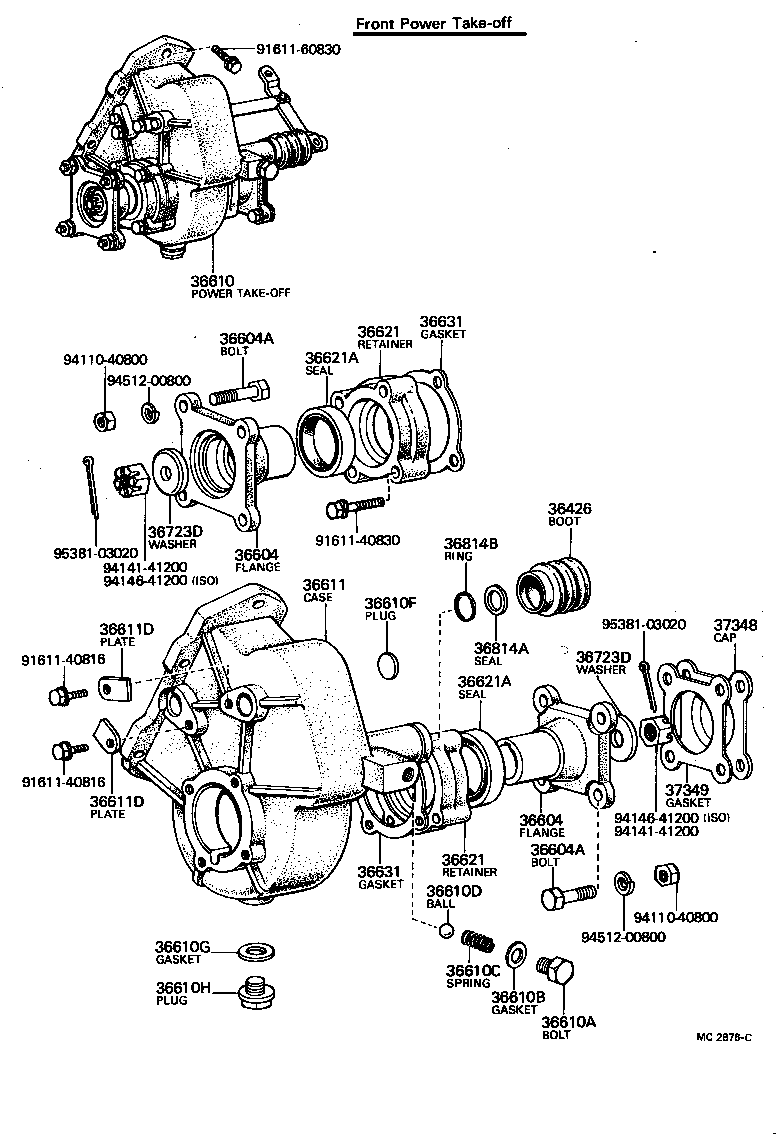

(6903-8007)BJ4#,FJ40,43,45,55,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36426 - BOOT, DIAPHRAGM PUSH ROD | ||||
| 36426-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36604 - FLANGE, UNIVERSAL JOINT (FOR FRONT POWER TAKE-OFF) | ||||
| 37324-60050 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36604 - FLANGE, UNIVERSAL JOINT (FOR FRONT POWER TAKE-OFF) | ||||
| 37324-60050 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36604A - BOLT (FOR WINCH DRIVE SHAFT SETTING) | ||||
| 90101-08072 |
FJ40,43,45,55 |
8 | ||
| 36604A - BOLT (FOR WINCH DRIVE SHAFT SETTING) | ||||
| 90101-08072 |
FJ40,43,45,55 |
8 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-60040 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90101-12037 |
FJ40,43,45,55 12-1.5PX9.4 |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12030 |
BJ4#,FJ40,43,45,55,HJ45 T=0.8 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-12033 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10003 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36610F - PLUG, EXPANSION (FOR POWER TAKE-OFF) | ||||
| 90330-27010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36610G - GASKET (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 12157-10010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36610H - PLUG (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 90341-18002 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-60020 |
FJ40,43,45,55 |
1 | ||
| 36611D - PLATE, LOCK (FOR POWER TAKE-OFF CASE) | ||||
| 36726-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36611D - PLATE, LOCK (FOR POWER TAKE-OFF CASE) | ||||
| 36726-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-35004 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-35004 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36723D - WASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 90201-12169 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36723D - WASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 90201-12169 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36814A - SEAL, DUST (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 90303-13018 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36814B - RING, O (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 90301-12027 |
FJ40,43,45,55 |
1 | ||
| 37348 - CAP, RETAINER | ||||
| 37348-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 37349 - GASKET, RETAINER CAP | ||||
| 37349-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40830 | ||||
| 91611-60830 | ||||
| 94110-40800 | ||||
| 94141-41200 | ||||
| 94146-41200 | ||||
| 94512-00800 | ||||
| 95381-03020 | ||||

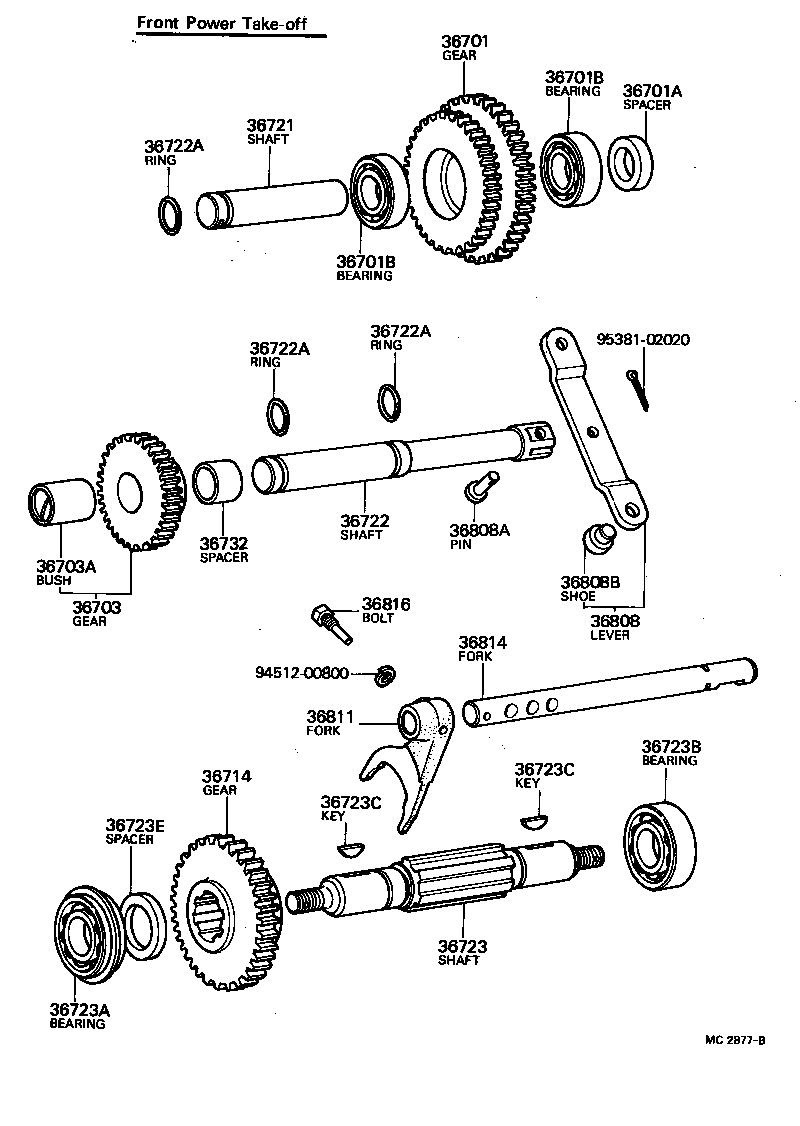

(6903-8007)BJ4#,FJ40,43,45,55,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36701 - GEAR SUB-ASSY, POWER TAKE-OFF INPUT | ||||
| 36701-60020 |
BJ4#,FJ40,43,45,55,HJ45 N=29,34 |
1 | ||
| 36701A - SPACER (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90560-20132 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 97103-06204 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 97103-06204 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36703 - GEAR SUB-ASSY, POWER TAKE-OFF REVERSE IDLER | ||||
| 36703-60020 |
BJ4#,FJ40,43,45,55,HJ45 N=23 |
1 | ||
| 36703A - BUSH, SOLID (FOR POWER TAKE-OFF REVERSE IDLER GEAR) | ||||
| 90380-20052 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-60020 |
BJ4#,FJ40,43,45,55,HJ45 N=31 |
1 | ||
| 36721 - SHAFT, POWER TAKE-OFF INPUT GEAR | ||||
| 36721-60020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36722 - SHAFT, POWER TAKE-OFF IDLER GEAR | ||||
| 36722-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT) | ||||
| 90301-14030 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT) | ||||
| 90301-14030 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT) | ||||
| 90301-14030 |
BJ4#,FJ40,43,45,55,HJ45 |
3 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-60030 |
FJ40,43,45,55 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97153-06205 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-05001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-05001 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 90560-30073 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36732 - SPACER, POWER TAKE-OFF REVERSE IDLER GEAR | ||||
| 36732-60020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36808 - LEVER SUB-ASSY, POWER TAKE-OFF SHIFT LINK | ||||
| 36808-60020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36808A - PIN, W/HOLE (FOR POWER TAKE-OFF SHIFT LINK LEVER) | ||||
| 90240-08028 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36808B - SHOE, POWER TAKE-OFF SHIFT LINK LEVER | ||||
| 36343-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-60020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-60020 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 36816 - BOLT, POWER TAKE-OFF DRIVE FORK LOCK | ||||
| 36816-65010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| Common parts | ||||
| 94512-00800 | ||||
| 95381-02020 | ||||
