FJ40V-C (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

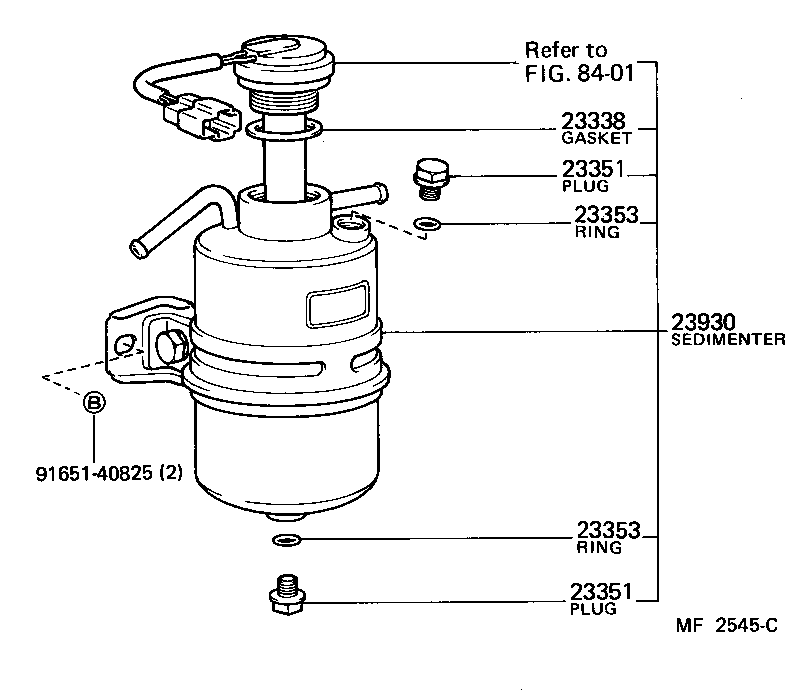

(8008-8506)B,3B

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 8401 9165140825
Part # Description Qty Price
Common parts
91651-40825
Linked diagrams
8401

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23312 23319 23351 23351 23353 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
Common parts
91611-61045
94712-77121

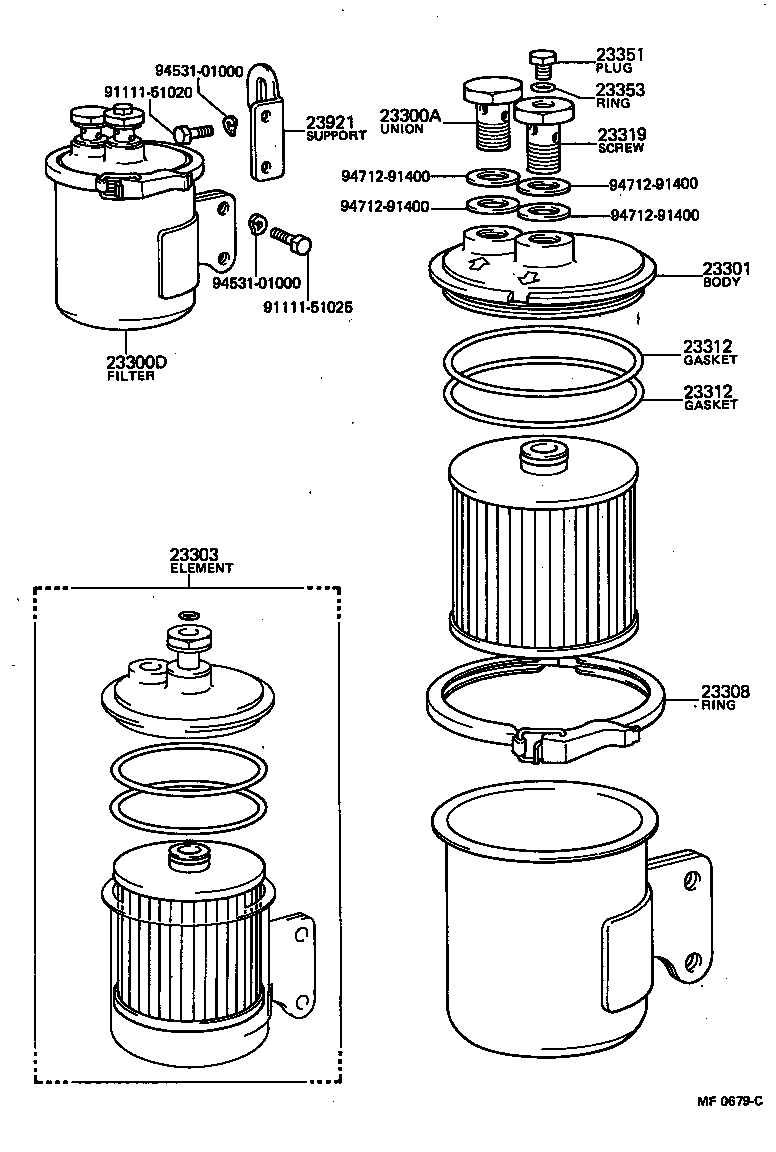

(7204-7306)H

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23308 23312 23312 23319 23351 23353 23921 9111151020 9111151025 9453101000 9453101000 9471291400 9471291400 9471291400 9471291400
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90404-13105

F..FJ4#,55

 2
23301 - BODY SUB-ASSY, FUEL FILTER
23301-30010

F..FJ4#,55

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-30010

F..FJ4#,55

 1
23312 - GASKET, FILTER BOWL
23312-30010

F..FJ4#,55

 1
23312 - GASKET, FILTER BOWL
23312-30010

F..FJ4#,55

 1
23921 - SUPPORT, FUEL FILTER
23921-60030

F..FJ4#

 1
Common parts
91111-51020
91111-51025
94531-01000
94712-91400
