Toyota Land cruiser FJ40 ACCELERATOR LINK

FJ40V- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

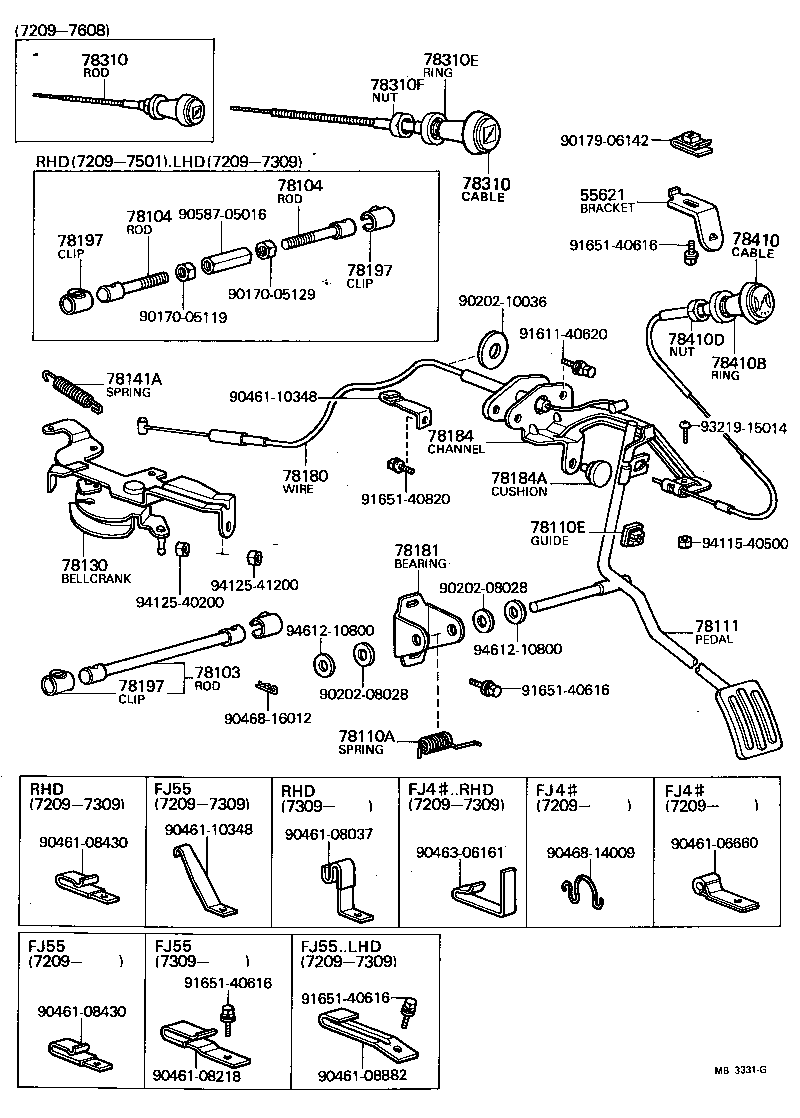

(7209-7309)FJ4#,55 ; (7309-8007)FJ4#,55..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55621 - BRACKET, THROTTLE ROD SUPPORT
78442-90300	FJ40,43,45,HJ45..RHD	10/1971 - 09/1973	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78105-90351	FJ4#,55 L=53	09/1972 - 09/1973	1
78105-90351	FJ4#,55..RHD L=53	09/1973 - 01/1975	1
78104-90351	FJ4#,55 L=37	09/1972 - 09/1973	1
78104-90351	FJ4#,55..RHD L=37	09/1973 - 01/1975	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78105-90351	FJ4#,55 L=53	09/1972 - 09/1973	1
78105-90351	FJ4#,55..RHD L=53	09/1973 - 01/1975	1
78104-90351	FJ4#,55 L=37	09/1972 - 09/1973	1
78104-90351	FJ4#,55..RHD L=37	09/1973 - 01/1975	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26125	FJ40,43,45,55,HJ45	03/1969 - 09/1973	1
78111 - PEDAL, ACCELERATOR
78101-60030	FJ4#	03/1969 - 09/1973	1
78101-90300	FJ4#,HJ45 W/THROTTLE ROD	10/1971 - 09/1973	1
78130 - BELLCRANK ASSY, ACCELERATOR
78106-90351	FJ4#,55	09/1972 - 09/1973	1
78106-90351	FJ4#,55..RHD	09/1973 - 01/1975	1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90506-12427	FJ4#,55	09/1972 - 09/1973	1
90506-12427	FJ4#,55..RHD	09/1973 - 01/1975	1
78180 - WIRE ASSY, ACCELERATOR
78180-90088	FJ40,43,45,55..RHD	10/1969 - 01/1972	1
78180-90088	FJ40,43,45..RHD	02/1972 - 09/1972	1
78180-60010	FJ40,43,45,55..RHD	03/1969 - 10/1969	1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-60030	FJ4#,HJ45;FJ55..RHD	03/1969 - 09/1972	1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78441-90300	FJ4#,55,HJ45 W/THROTTLE ROD	10/1971 - 09/1973	1
78184-60010	FJ4#,55	03/1969 - 09/1973	1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
78310 - CABLE ASSY, CHOKE
78310-90300	FJ4#	09/1972 - 01/1975	1
78310-60011	FJ4#	03/1969 - 09/1972	1
78310 - CABLE ASSY, CHOKE
78310-90300	FJ4#	09/1972 - 01/1975	1
78310-60011	FJ4#	03/1969 - 09/1972	1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60011	FJ4#	03/1969 - 10/1969	1
78410-90300	FJ4#,HJ45	10/1971 - 09/1972	1
Common parts
90170-05119
90170-05129
90179-06142
90202-08028
90202-10036
90461-06660
90461-08037
90461-08218
90461-08430
90461-08882
90461-10348
90463-06161
90468-14009
90468-16012
90587-05016
91611-40620
91651-40616
91651-40820
93219-15014
94115-40500
94125-40200
94125-41200
94612-10800

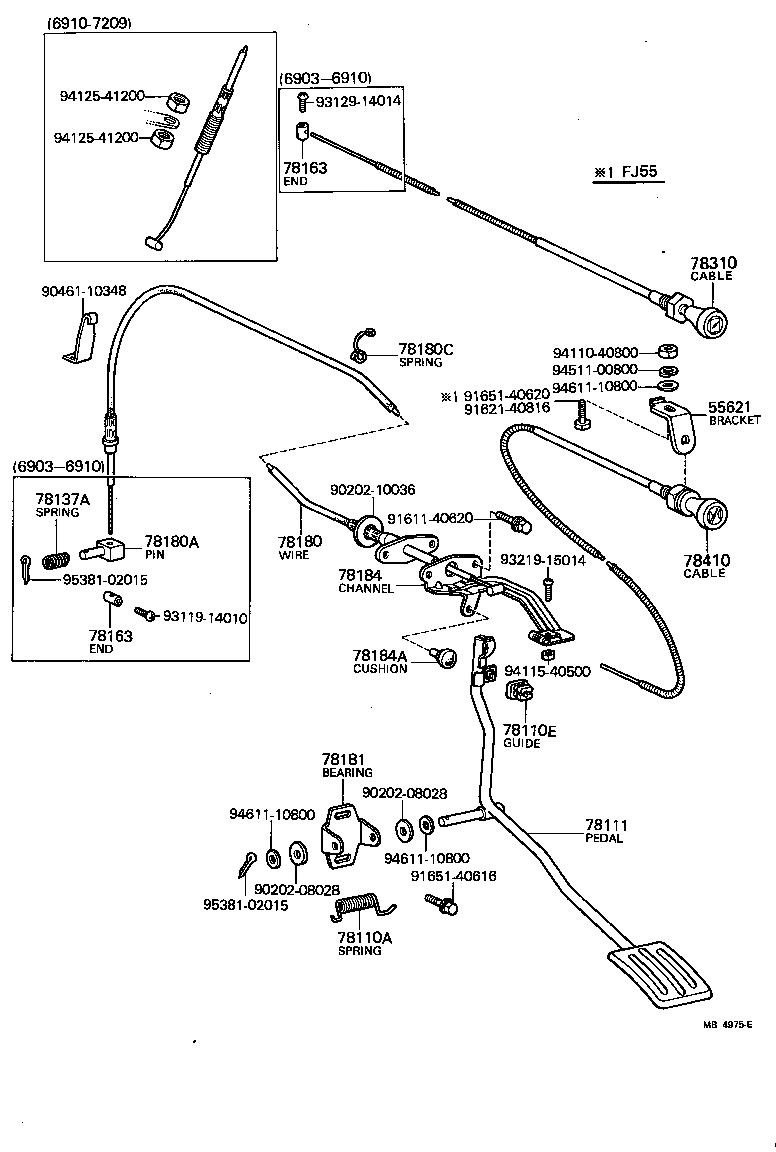

(6903-7209)FJ4#,55

Click highlighted areas on diagram

Part #	Description	Period	Qty
55621 - BRACKET, THROTTLE ROD SUPPORT
78442-90300	FJ40,43,45,HJ45..RHD	10/1971 - 09/1973	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26125	FJ40,43,45,55,HJ45	03/1969 - 09/1973	1
78111 - PEDAL, ACCELERATOR
78101-60030	FJ4#	03/1969 - 09/1973	1
78101-90300	FJ4#,HJ45 W/THROTTLE ROD	10/1971 - 09/1973	1
78137A - SPRING, ACCELERATOR LINK PIN
90501-08086	FJ4#,55	03/1969 - 10/1969	1
78163 - END, FLEXIBLE WIRE
78163-55020	FJ4#,55	03/1969 - 10/1969	2
78163 - END, FLEXIBLE WIRE
78163-55020	FJ4#,55	03/1969 - 10/1969	2
78180 - WIRE ASSY, ACCELERATOR
78180-90088	FJ40,43,45,55..RHD	10/1969 - 01/1972	1
78180-90088	FJ40,43,45..RHD	02/1972 - 09/1972	1
78180-60010	FJ40,43,45,55..RHD	03/1969 - 10/1969	1
78180A - PIN, ACCELERATOR WIRE SET
78154-55010	FJ4#,55	03/1969 - 10/1969	1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90468-14009	FJ40,43,45,HJ45..RHD	03/1969 - 09/1972	1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-60030	FJ4#,HJ45;FJ55..RHD	03/1969 - 09/1972	1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78441-90300	FJ4#,55,HJ45 W/THROTTLE ROD	10/1971 - 09/1973	1
78184-60010	FJ4#,55	03/1969 - 09/1973	1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
78310 - CABLE ASSY, CHOKE
78310-90300	FJ4#	09/1972 - 01/1975	1
78310-60011	FJ4#	03/1969 - 09/1972	1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60011	FJ4#	03/1969 - 10/1969	1
78410-90300	FJ4#,HJ45	10/1971 - 09/1972	1
Common parts
90202-08028
90202-10036
90461-10348
91611-40620
91621-40816
91651-40616
91651-40620
93119-14010
93129-14014
93219-15014
94110-40800
94115-40500
94125-41200
94511-00800
94611-10800
95381-02015

FJ40V- (1969)

(7209-7309)FJ4#,55 ; (7309-8007)FJ4#,55..RHD

(6903-7209)FJ4#,55
