Toyota Land cruiser FJ40 WATER PUMP

FJ40RV-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8410)B,3B..ARL,GEN

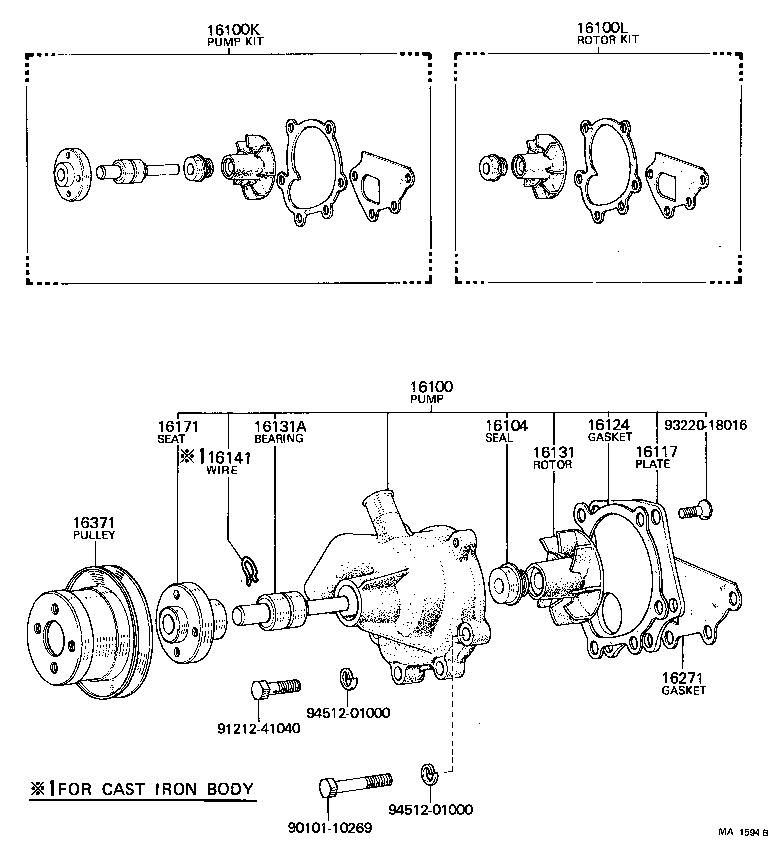

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08272
90119-08273
93220-16014

(7501-7608)2F ; (7608-8007)2F..ARL,GEN ; (7608-8007)2F..FJ45..EUR..IV

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-60080	F..FJ4#,55	03/1969 - 01/1975	1
16100-61011	2F..FJ4#,55	01/1975 - 08/1975	1
16100-60090	F..FJ4#,55 FOR TROPICAL	03/1969 - 01/1975	1
16100-61012	2F..FJ4#,55	08/1975 - 08/1976	1
16100-61060	2F..FJ4#,55..ARL,GEN TROPICAL W/OIL COOLER	09/1975 - 08/1976	1
16100-61041	2F..FJ4#,55..ARL,GEN W/OIL COOLER	09/1975 - 09/1977	1
16100-61030	2F..FJ4#,55..GEN FOR TROPICAL	01/1975 - 08/1976	1
16100-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16100-61041	2F..FJ4#,55 W/OIL COOLER	09/1977 - 01/1979	1
16100-61012	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
16100-61081	2F..FJ40,55..RHD HONG KONG SPEC. W/OIL COOLER	01/1979 - 07/1980	1
16100-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16100-61041	2F..FJ4#,55..ARL,GEN W/OIL COOLER	01/1979 - 07/1980	1
16100-61150	2F..FJ4#,55..GEN CAST IRON BODY,W/OIL COOLER	07/1980 - 07/1980	1
16100-61140	2F..FJ4#,55..GEN FOR CAST IRON BODY	07/1980 - 07/1980	1
16100K - PUMP KIT, WATER
04161-61010	2F..FJ4#,55	01/1975 - 08/1975	1
04161-60090	F..FJ4#,55	03/1969 - 01/1975	1
04161-61020	2F..FJ40,55..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
04161-61011	2F..FJ4#,55..ARL,GEN	08/1976 - 01/1979	1
04161-61011	2F..FJ4#,55	08/1975 - 08/1976	1
16100L - ROTOR KIT, WATER PUMP
04162-61011	2F..FJ4#,55	08/1975 - 01/1979	1
04162-60070	F..FJ4#,55	03/1969 - 01/1975	1
04162-61010	2F..FJ4#,55	01/1975 - 08/1975	1
04162-61011	2F..FJ4#,55..ARL,GEN	01/1979 - 07/1980	1
04162-61020	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16104 - SEAL SET, WATER PUMP
16104-41110	2F..FJ4#,55	09/1977 - 12/1979	1
16104-41111	2F..FJ4#,55	12/1979 - 07/1980	1
16104-41110	2F..FJ4#,55	01/1975 - 09/1977	1
16104-60080	F..FJ4#,55	03/1969 - 01/1975	1
16117 - PLATE, WATER PUMP
16117-60010	F..FJ4#,55	03/1969 - 01/1975	1
16117-61012	2F..FJ4#,55	08/1975 - 07/1980	1
16117-61011	2F..FJ4#,55	01/1975 - 08/1975	1
16124 - GASKET, WATER PUMP COVER
16124-61012	2F..FJ4#,55	08/1975 - 07/1980	1
16124-60080	F..FJ4#,55	03/1969 - 01/1975	1
16124-61011	2F..FJ4#,55	01/1975 - 08/1975	1
16131 - ROTOR, WATER PUMP
16131-61011	2F..FJ4#,55	01/1975 - 01/1979	1
16131-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16131-61011	2F..FJ4#,55..ARL,GEN	01/1979 - 07/1980	1
16131-60080	F..FJ4#,55	03/1969 - 01/1975	1
16131A - BEARING, WATER PUMP
90369-30008	F..FJ4#,55 885141CF	03/1969 - 01/1975	1
90369-30035	2F..FJ4#,55..ARL,GEN	08/1979 - 07/1980	1
90369-30028	2F..FJ4#,55 WPB16112-2RS	01/1975 - 08/1976	1
90369-30028	2F..FJ4#,55..ARL,GEN WPB16112-2RS	08/1976 - 08/1979	1
90369-30005	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
90369-35007	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
90369-30028	2F..FJ4#,55..GEN FOR CAST IRON BODY	07/1980 - 07/1980	1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-60010	F..FJ4#,55 FOR CAST IRON BODY	03/1969 - 01/1975	1
16141-60010	2F..FJ4#,55..GEN FOR CAST IRON BODY	07/1980 - 07/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-56010	2F..FJ4#,55	01/1975 - 08/1976	1
16171-60080	F..FJ4#,55	03/1969 - 01/1975	1
16171-56010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
16171-42010	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16171-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16271 - GASKET, WATER PUMP
16271-60010	F..FJ4#,55	03/1969 - 09/1973	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#,55	01/1975 - 08/1976	1
16371-60070	F..FJ4#,55	03/1969 - 01/1975	1
16173-61070	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16173-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16371-60090	2F..FJ4#,55 FOR POWER STEERING	01/1979 - 07/1980	1
16371-61010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
Common parts
90101-10269
91212-41040
93220-18016
94512-01000

(7709-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-60080	F..FJ4#,55	03/1969 - 01/1975	1
16100-61011	2F..FJ4#,55	01/1975 - 08/1975	1
16100-60090	F..FJ4#,55 FOR TROPICAL	03/1969 - 01/1975	1
16100-61012	2F..FJ4#,55	08/1975 - 08/1976	1
16100-61060	2F..FJ4#,55..ARL,GEN TROPICAL W/OIL COOLER	09/1975 - 08/1976	1
16100-61041	2F..FJ4#,55..ARL,GEN W/OIL COOLER	09/1975 - 09/1977	1
16100-61030	2F..FJ4#,55..GEN FOR TROPICAL	01/1975 - 08/1976	1
16100-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16100-61041	2F..FJ4#,55 W/OIL COOLER	09/1977 - 01/1979	1
16100-61012	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
16100-61081	2F..FJ40,55..RHD HONG KONG SPEC. W/OIL COOLER	01/1979 - 07/1980	1
16100-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16100-61041	2F..FJ4#,55..ARL,GEN W/OIL COOLER	01/1979 - 07/1980	1
16100-61150	2F..FJ4#,55..GEN CAST IRON BODY,W/OIL COOLER	07/1980 - 07/1980	1
16100-61140	2F..FJ4#,55..GEN FOR CAST IRON BODY	07/1980 - 07/1980	1
16100K - PUMP KIT, WATER
04161-61010	2F..FJ4#,55	01/1975 - 08/1975	1
04161-60090	F..FJ4#,55	03/1969 - 01/1975	1
04161-61020	2F..FJ40,55..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
04161-61011	2F..FJ4#,55..ARL,GEN	08/1976 - 01/1979	1
04161-61011	2F..FJ4#,55	08/1975 - 08/1976	1
16104 - SEAL SET, WATER PUMP
16104-41110	2F..FJ4#,55	09/1977 - 12/1979	1
16104-41111	2F..FJ4#,55	12/1979 - 07/1980	1
16104-41110	2F..FJ4#,55	01/1975 - 09/1977	1
16104-60080	F..FJ4#,55	03/1969 - 01/1975	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16110-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16110-61081	2F..FJ40,55..RHD HONG KONG SPEC,W/OIL COOLER	01/1979 - 07/1980	1
16117 - PLATE, WATER PUMP
16117-60010	F..FJ4#,55	03/1969 - 01/1975	1
16117-61012	2F..FJ4#,55	08/1975 - 07/1980	1
16117-61011	2F..FJ4#,55	01/1975 - 08/1975	1
16131 - ROTOR, WATER PUMP
16131-61011	2F..FJ4#,55	01/1975 - 01/1979	1
16131-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16131-61011	2F..FJ4#,55..ARL,GEN	01/1979 - 07/1980	1
16131-60080	F..FJ4#,55	03/1969 - 01/1975	1
16131A - BEARING, WATER PUMP
90369-30008	F..FJ4#,55 885141CF	03/1969 - 01/1975	1
90369-30035	2F..FJ4#,55..ARL,GEN	08/1979 - 07/1980	1
90369-30028	2F..FJ4#,55 WPB16112-2RS	01/1975 - 08/1976	1
90369-30028	2F..FJ4#,55..ARL,GEN WPB16112-2RS	08/1976 - 08/1979	1
90369-30005	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
90369-35007	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
90369-30028	2F..FJ4#,55..GEN FOR CAST IRON BODY	07/1980 - 07/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-56010	2F..FJ4#,55	01/1975 - 08/1976	1
16171-60080	F..FJ4#,55	03/1969 - 01/1975	1
16171-56010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
16171-42010	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16171-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16210 - COUPLING ASSY, FLUID
16210-61071	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16210-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
90116-06200	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	4
90116-06200	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	4
16271 - GASKET, WATER PUMP
16271-60010	F..FJ4#,55	03/1969 - 09/1973	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#,55	01/1975 - 08/1976	1
16371-60070	F..FJ4#,55	03/1969 - 01/1975	1
16173-61070	2F..FJ40,55..RHD HONG KONG SPEC.	01/1979 - 07/1980	1
16173-61070	2F..FJ40..RHD HONG KONG SPEC.	04/1978 - 01/1979	1
16371-60090	2F..FJ4#,55 FOR POWER STEERING	01/1979 - 07/1980	1
16371-61010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
Common parts
90119-08272
90119-08273
90179-06070
93220-16014

FJ40RV-UJ (1975)

(8008-8410)B,3B..ARL,GEN

(7501-7608)2F ; (7608-8007)2F..ARL,GEN ; (7608-8007)2F..FJ45..EUR..IV

(7709-8007)B

Part Price Details
