FJ40RV-UCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)3F

Click highlighted areas on diagram

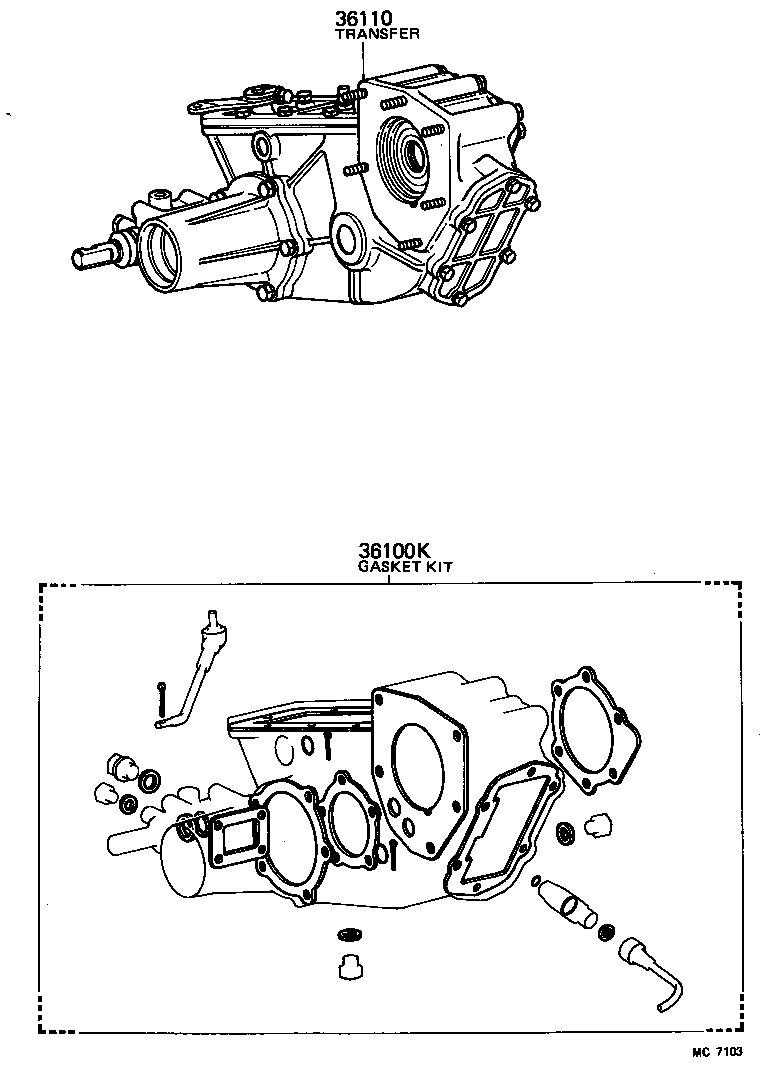

diagram 36100K 36110
Part # Description Qty Price

(6903-8007)BJ4#,FJ40,43,45,55,HJ45

Click highlighted areas on diagram

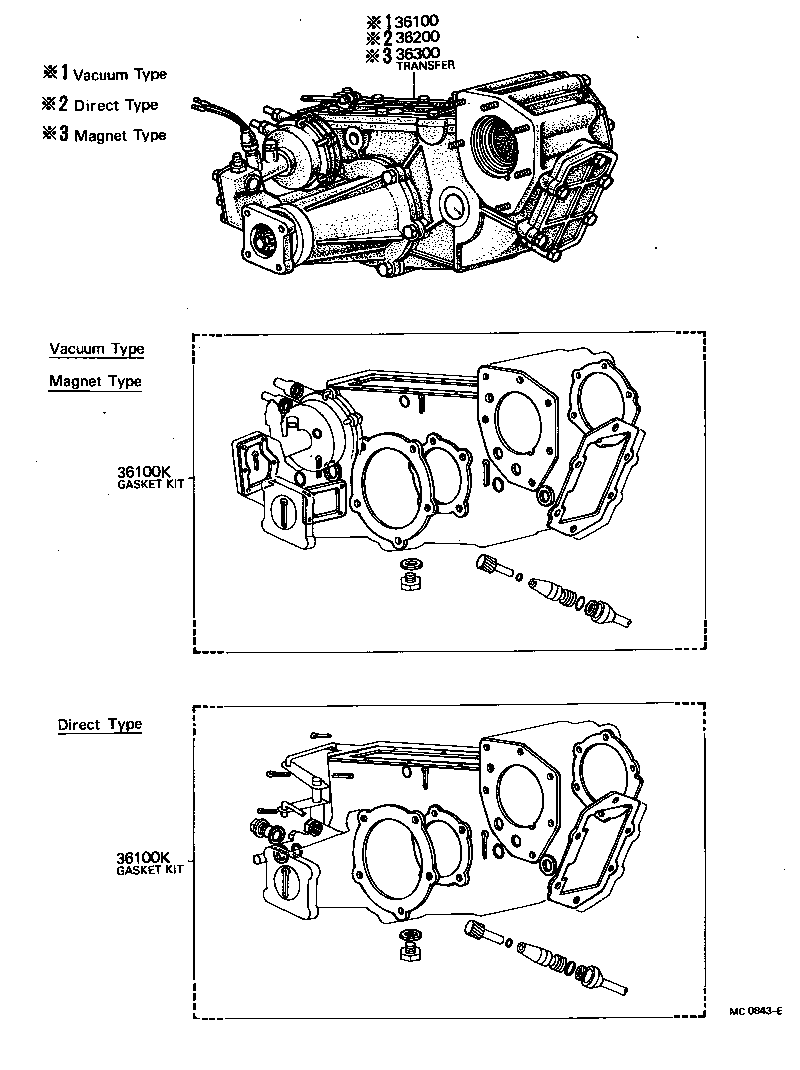

diagram 36100 36100K 36100K 36200 36300
Part # Description Qty Price
36100 - TRANSFER ASSY
36100-60915

FJ40..RHD

SMG.R=18:6

 1
36100-60916

FJ40,43,45..RHD

SMG.R=17:6

 1
36100-60917

FJ40,43..RHD

SMG.R=16:6

 1
36100-60918

FJ40,43,45..RHD

SMG.R=15:6

 1
36100K - GASKET KIT, TRANSFER OVERHAUL
04362-60021

BJ4#,FJ40,43,45,55

FOR VACUUM OR MAGNET TYPE

 1
04362-60021

BJ4#,FJ4#,55..GEN

FOR VACUUM OR MAGNET TYPE

 1
04362-60021

BJ4#,FJ4#,55..ARL,GEN

FOR VACUUM OR MAGNET TYPE

 1
04362-60030

BJ4#,FJ4#,55,HJ45

FOR DIRECT TYPE

 1
36100K - GASKET KIT, TRANSFER OVERHAUL
04362-60021

BJ4#,FJ40,43,45,55

FOR VACUUM OR MAGNET TYPE

 1
04362-60021

BJ4#,FJ4#,55..GEN

FOR VACUUM OR MAGNET TYPE

 1
04362-60021

BJ4#,FJ4#,55..ARL,GEN

FOR VACUUM OR MAGNET TYPE

 1
04362-60030

BJ4#,FJ4#,55,HJ45

FOR DIRECT TYPE

 1
36200 - TRANSFER, W/O DRIVE GEAR (DIRECT TYPE)
36200-60917

FJ40,43..RHD

SMG.R=18:6

 1
36200-60920

FJ40,43,45..RHD

SMG.R=15:6

 1
36200-60918

FJ40,43,45..RHD

SMG.R=17:6

 1
36200-60919

FJ40,43,45..RHD

SMG.R=16:6

 1
36200-60958

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36200-60967

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36200-60970

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36200-60963

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36100-60946

FJ4#,55..3F

SMG.R=15:7,16:7,17:7

 1
36300 - TRANSFER, W/O DRIVE GEAR (MAGNET TYPE)
36300-60924

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36300-60929

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
36300-60931

FJ4#,55..3F

SMG.R=15:6,16:6,17:6

 1
