FJ40RV-MCQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

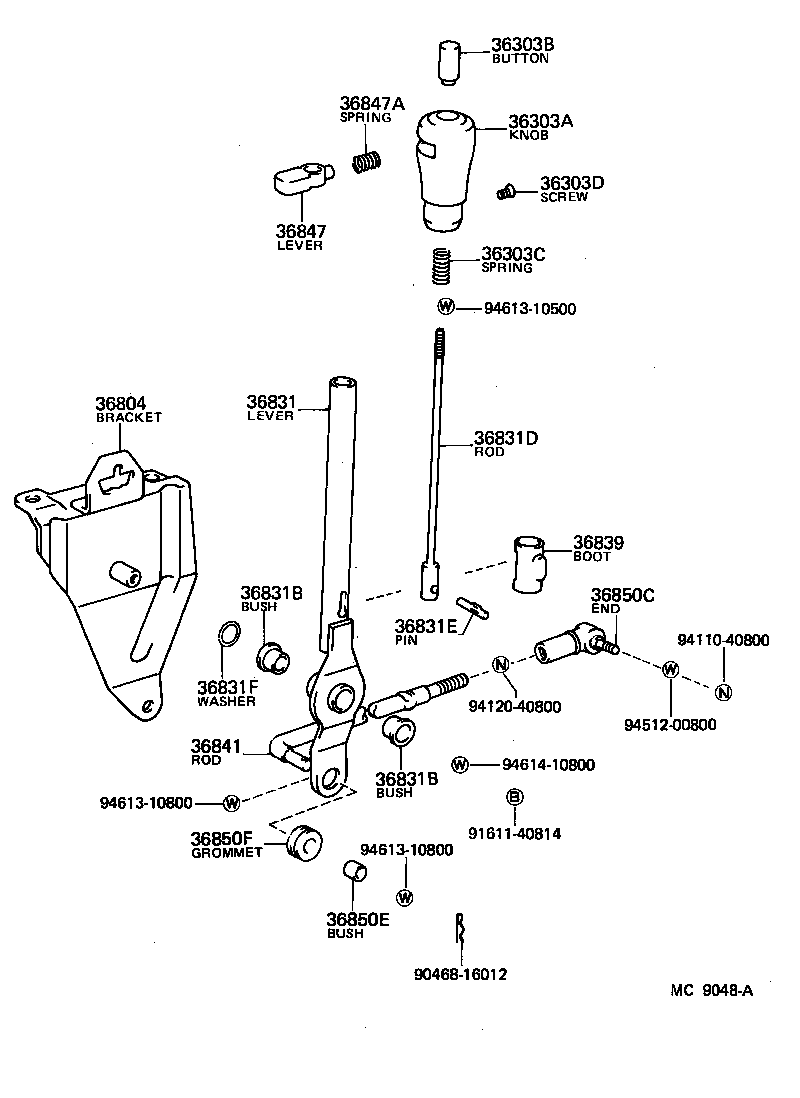

Click highlighted areas on diagram

diagram 36303A 36303B 36303C 36303D 36804 36831 36831B 36831B 36831D 36831E 36831F 36839 36841 36847 36847A 36850C 36850E 36850F 9046816012 9161140814 9411040800 9412040800 9451200800 9461310500 9461310800 9461310800 9461410800
Part # Description Qty Price
36804 - BRACKET SUB-ASSY, POWER TAKE-OFF SHIFT LEVER
36804-60040

BJ42,46,FJ40,43..5F

 1
36841 - ROD, POWER TAKE-OFF SHIFT
36841-60040

BJ42,46,FJ40,43..5F

 1
Common parts
90468-16012
91611-40814
94110-40800
94120-40800
94512-00800
94613-10500
94613-10800
94614-10800
