Toyota Land cruiser FJ40 POWER STEERING TUBE

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ40RV-KQ (1975)
4503 - POWER STEERING TUBE

FJ40RV-KQ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8506)FJ4#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90201-10275
90540-18001
91112-51030
91611-40612
91611-61025
91651-60820
91651-61025
94512-01000
96221-20710
Linked diagrams
1603
4503
8719

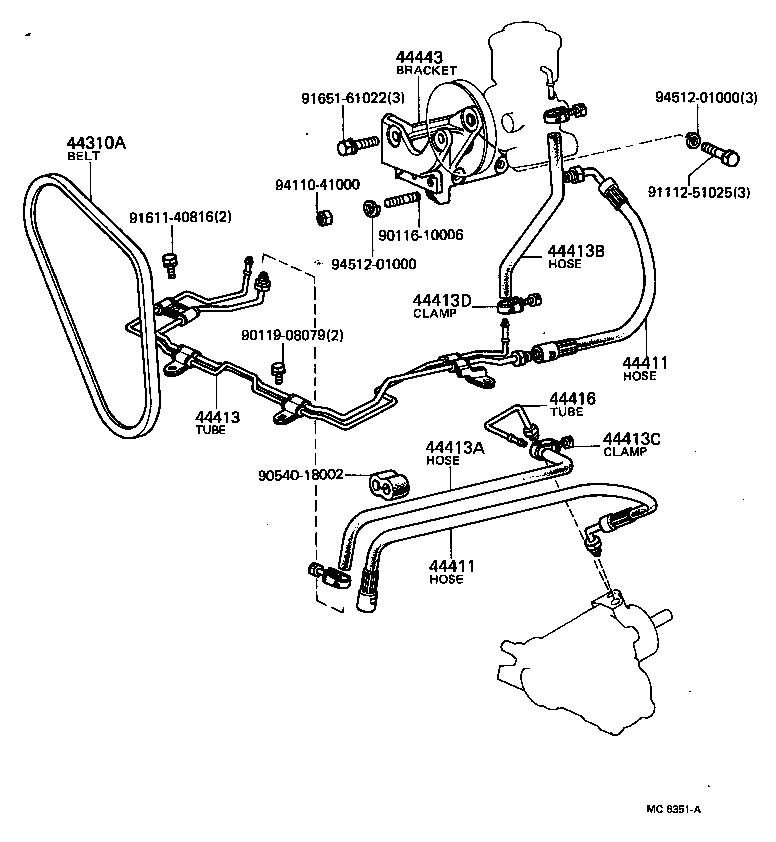

(8008-8410)FJ40..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90116-10006
90540-18002
91112-51025
91611-40825
91651-61025
94110-41000
94512-01000
Linked diagrams
1705
4503
8719

(7901-7909)FJ40,45..ARL ; (7909-8007)FJ4#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44425-60050	FJ40,45..ARL	01/1979 - 09/1979	1
44425-60050	FJ4#..RHD	09/1979 - 07/1980	1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18052	FJ4#..RHD	09/1979 - 07/1980	1
90445-18052	FJ40,45..ARL	01/1979 - 09/1979	1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18386	FJ40,45..ARL	01/1979 - 09/1979	1
90445-18386	FJ4#..RHD	09/1979 - 07/1980	1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001	FJ4#,55..RHD	09/1979 - 07/1980	2
90460-01001	FJ40,45,55..ARL	01/1979 - 09/1979	2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001	FJ40,45,55..ARL	01/1979 - 09/1979	2
90460-01001	FJ4#,55..RHD	09/1979 - 07/1980	2
44411 - HOSE, PRESSURE FEED
44411-60020	FJ40..ARL N.S.W. SPEC.W/COOLER,GEAR SIDE	01/1979 - 07/1980	1
44411-60010	FJ40,45..ARL	01/1979 - 09/1979	1
44411-60060	FJ40..ARL NEW SOUTH WALES SPEC.GEAR SIDE	01/1979 - 07/1980	1
44411-60070	FJ40..ARL NEW SOUTH WALES SPEC.PUMP SIDE	01/1979 - 07/1980	1
44411-60010	FJ4#..RHD	09/1979 - 07/1980	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60040	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44416-60010	FJ40,45..ARL	01/1979 - 09/1979	1
44416-60010	FJ4#..RHD	09/1979 - 07/1980	1
44443 - BRACKET, PUMP
44443-60020	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44443-60010	FJ40,45,55..ARL	01/1979 - 09/1979	1
44443-60010	FJ4#,55..RHD	09/1979 - 07/1980	1
44446 - STRUT, ADJUSTING
44446-60010	FJ40,45,55..ARL	01/1979 - 09/1979	1
44446-60010	FJ4#,55..RHD	09/1979 - 07/1980	1
Common parts
90201-10275
90540-18001
91112-51030
91611-40612
91611-61025
91651-60820
91651-61022
94512-01000
96221-20708

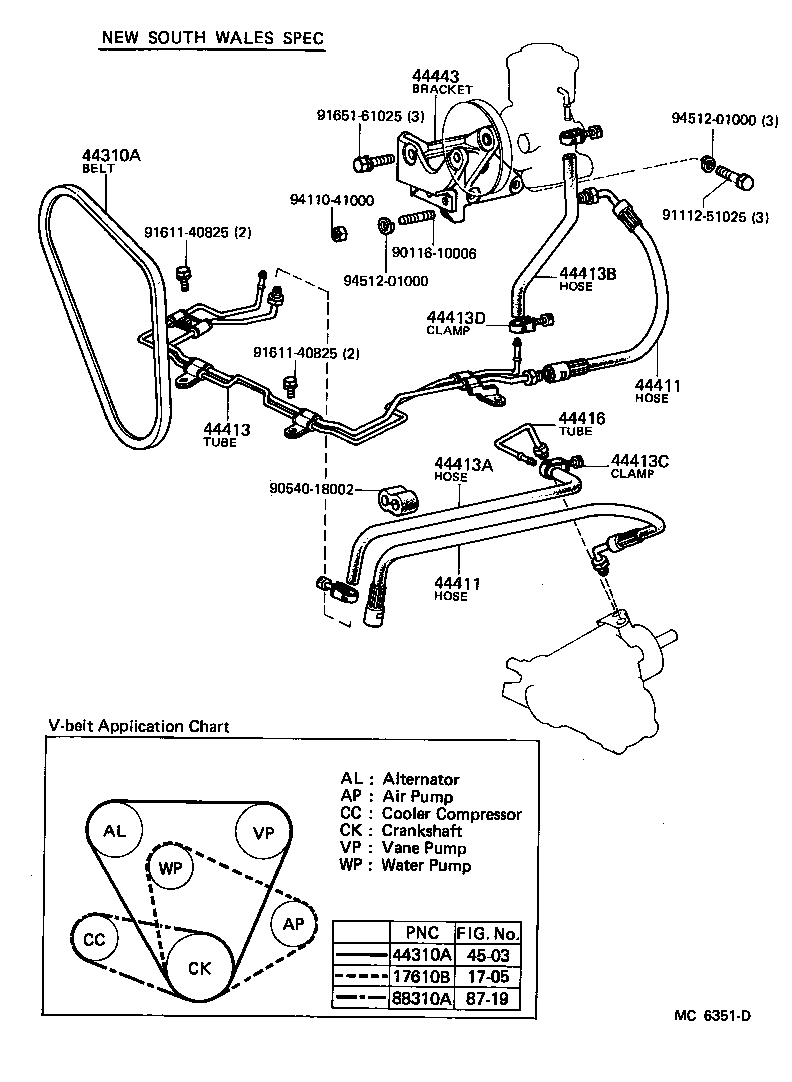

(7901-8007)FJ40..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
44411 - HOSE, PRESSURE FEED
44411-60020	FJ40..ARL N.S.W. SPEC.W/COOLER,GEAR SIDE	01/1979 - 07/1980	1
44411-60010	FJ40,45..ARL	01/1979 - 09/1979	1
44411-60060	FJ40..ARL NEW SOUTH WALES SPEC.GEAR SIDE	01/1979 - 07/1980	1
44411-60070	FJ40..ARL NEW SOUTH WALES SPEC.PUMP SIDE	01/1979 - 07/1980	1
44411-60010	FJ4#..RHD	09/1979 - 07/1980	1
44411 - HOSE, PRESSURE FEED
44411-60020	FJ40..ARL N.S.W. SPEC.W/COOLER,GEAR SIDE	01/1979 - 07/1980	1
44411-60010	FJ40,45..ARL	01/1979 - 09/1979	1
44411-60060	FJ40..ARL NEW SOUTH WALES SPEC.GEAR SIDE	01/1979 - 07/1980	1
44411-60070	FJ40..ARL NEW SOUTH WALES SPEC.PUMP SIDE	01/1979 - 07/1980	1
44411-60010	FJ4#..RHD	09/1979 - 07/1980	1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60010	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18053	FJ40..ARL NEW SOUTH WALES SPEC.W/COOLER	01/1979 - 07/1980	1
90445-18036	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18070	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
90445-18056	FJ40..ARL NEW SOUTH WALES SPEC.W/COOLER	01/1979 - 07/1980	1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60040	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44416-60010	FJ40,45..ARL	01/1979 - 09/1979	1
44416-60010	FJ4#..RHD	09/1979 - 07/1980	1
44443 - BRACKET, PUMP
44443-60020	FJ40..ARL NEW SOUTH WALES SPEC.	01/1979 - 07/1980	1
44443-60010	FJ40,45,55..ARL	01/1979 - 09/1979	1
44443-60010	FJ4#,55..RHD	09/1979 - 07/1980	1
Common parts
90116-10006
90119-08079
90540-18002
91112-51025
91611-40816
91651-61022
94110-41000
94512-01000

FJ40RV-KQ (1975)

(8008-8506)FJ4#..RHD

(8008-8410)FJ40..ARL

(7901-7909)FJ40,45..ARL ; (7909-8007)FJ4#..RHD

(7901-8007)FJ40..ARL
