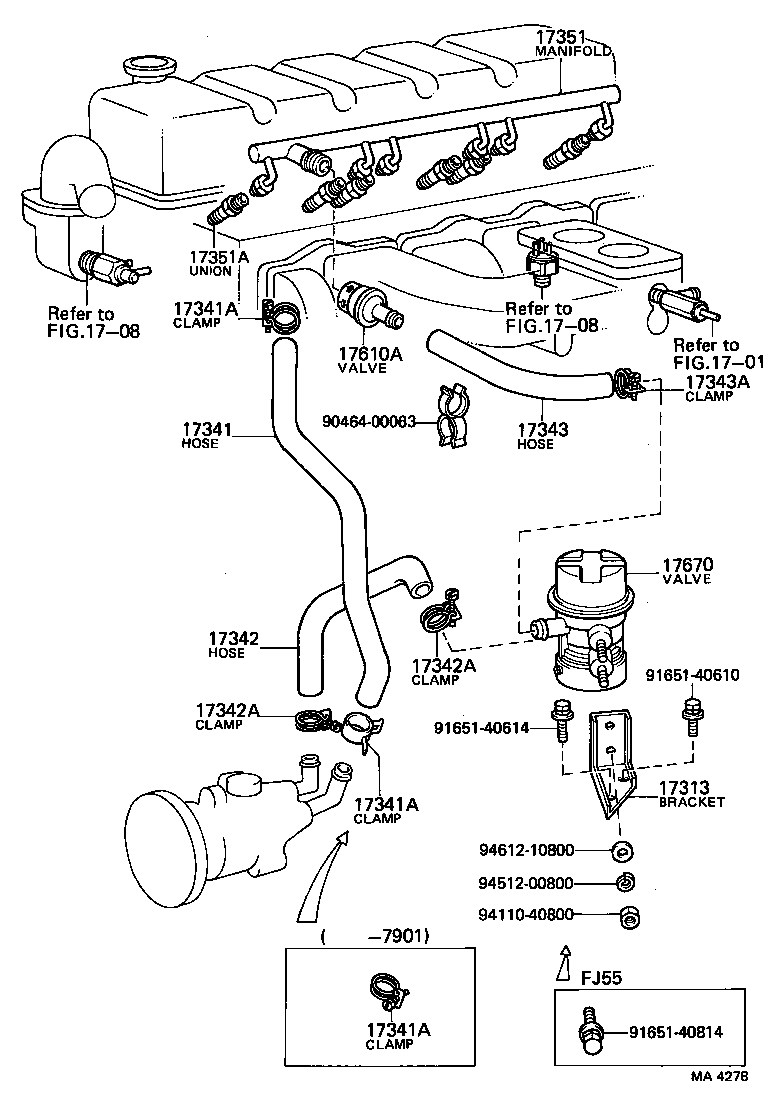

Toyota Land cruiser FJ40 MANIFOLD AIR INJECTION SYSTEM

Part #	Description	Period	Qty
17313 - BRACKET, AIR BY-PASS VALVE
17313-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 07/1980	1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-61020	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	1
17341-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-31001	2F..FJ40..ARL NEW SOUTH WALES,AIR PUMP SIDE	01/1979 - 07/1980	1
96112-10380	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
96112-10380	2F..FJ40..ARL NEW SOUTH WALES,CLEANER SIDE	01/1979 - 07/1980	2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-31001	2F..FJ40..ARL NEW SOUTH WALES,AIR PUMP SIDE	01/1979 - 07/1980	1
96112-10380	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
96112-10380	2F..FJ40..ARL NEW SOUTH WALES,CLEANER SIDE	01/1979 - 07/1980	2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-31001	2F..FJ40..ARL NEW SOUTH WALES,AIR PUMP SIDE	01/1979 - 07/1980	1
96112-10380	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
96112-10380	2F..FJ40..ARL NEW SOUTH WALES,CLEANER SIDE	01/1979 - 07/1980	2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-61011	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	1
17342-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10330	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
90467-28003	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10330	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
90467-28003	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	1
17343-61011	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	2
96112-10330	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	2
17351 - MANIFOLD, AIR INJECTION
17306-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	1
17306-61020	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	1
17351A - UNION, AIR INJECTION
90404-14329	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 07/1980	6
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10003	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 01/1979	1
90917-10057	2F..FJ40..ARL NEW SOUTH WALES	01/1979 - 07/1980	1
17670 - VALVE ASSY, AIR BY-PASS
17670-61010	2F..FJ40..ARL NEW SOUTH WALES	04/1978 - 07/1980	1
Common parts
90464-00063
91651-40610
91651-40614
91651-40814
94110-40800
94512-00800
94612-10800
Linked diagrams
1701
1708

FJ40RV-KQ (1975)

(8008-8410)2F..FJ40..ARL

(7804-8007)2F..FJ40..ARL
