FJ40RV-KQ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

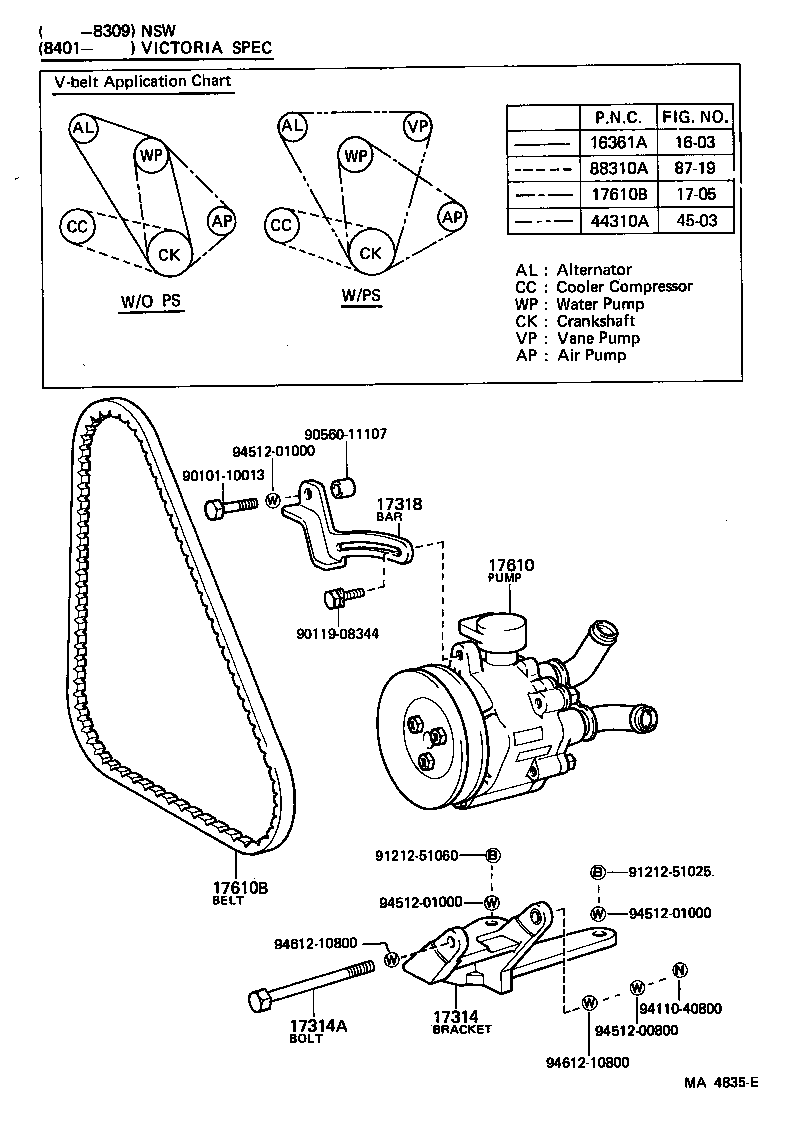

(8008-8410)2F..FJ40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10013 | ||||
| 90119-08344 | ||||
| 90560-11107 | ||||
| 91212-51025 | ||||
| 91212-51060 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||

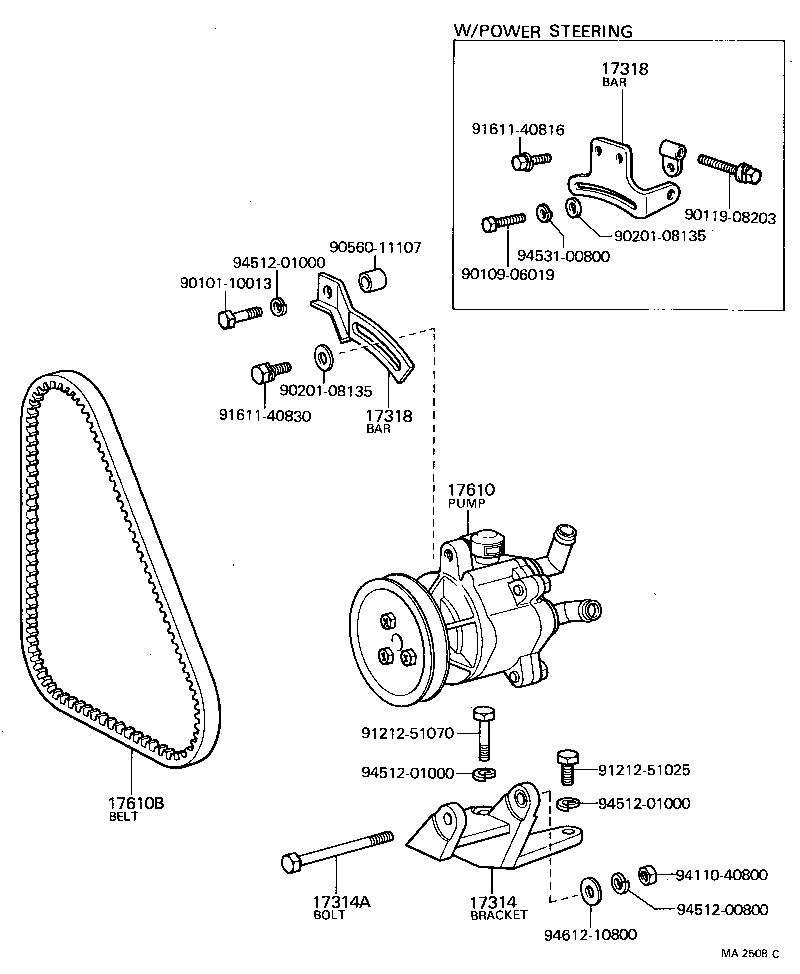

(7804-8007)2F..FJ40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-61010 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 90101-08188 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 17318 - BAR, AIR PUMP ADJUSTING, NO.2 | ||||
| 17318-61011 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 17318 - BAR, AIR PUMP ADJUSTING, NO.2 | ||||
| 17318-61011 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-61010 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 17610-61020 |
2F..FJ40..ARL NEW SOUTH WALES,TEMPERD TYPE |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 90916-02046 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| 90916-02084 |
2F..FJ40..ARL NEW SOUTH WALES |
1 | ||
| Common parts | ||||
| 90101-10013 | ||||
| 90109-06019 | ||||
| 90119-08203 | ||||
| 90201-08135 | ||||
| 90560-11107 | ||||
| 91212-51025 | ||||
| 91212-51070 | ||||
| 91611-40816 | ||||
| 91611-40830 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||
