FJ40RV-KJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

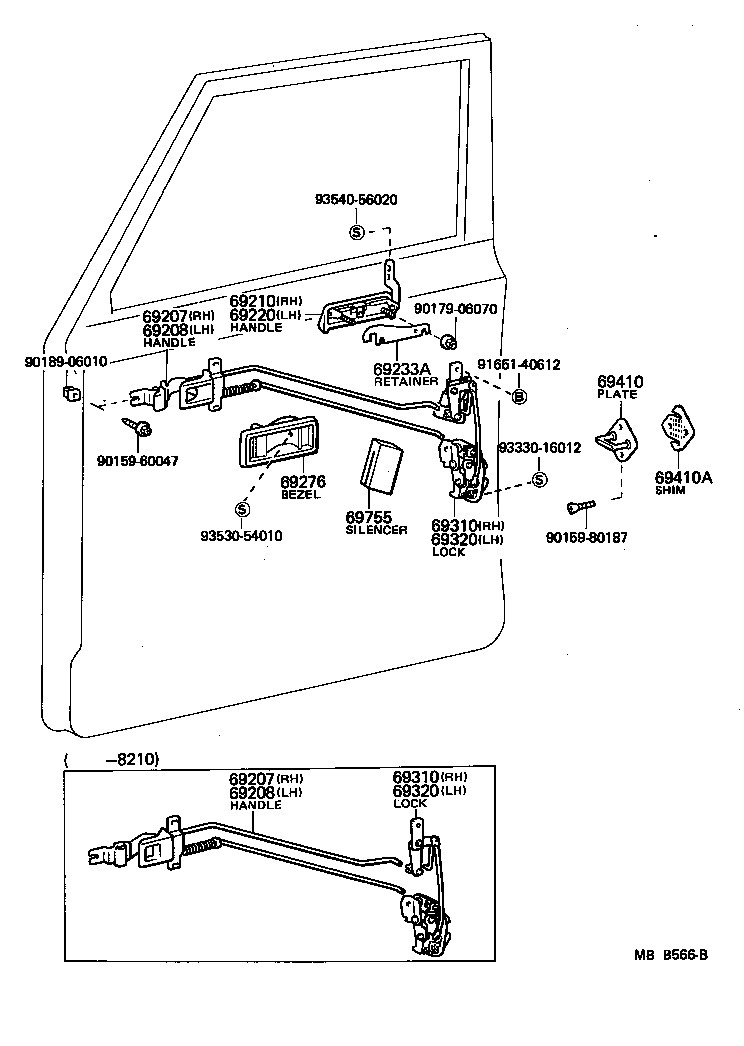

Click highlighted areas on diagram

diagram 69207 69207 69208 69208 69210 69220 69233A 69276 69310 69310 69320 69320 69410 69410A 69755 9015960047 9015980187 9017906070 9018906010 9165140612 9333016012 9353054010 9354056020
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69250-90301

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69250-90301

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69260-90301

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69260-90301

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-90300

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-90300

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-2001101

BJ4#,FJ4#,HJ47

BLACK,BLACK

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90300

BJ4#,FJ4#,HJ47

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90300

BJ4#,FJ4#,HJ47

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90300

BJ4#,FJ4#,HJ47

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90300

BJ4#,FJ4#,HJ47

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-90300

BJ4#,FJ4#,HJ47

 2
69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE
69411-90300

BJ4#,FJ4#,HJ47

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

BJ4#,FJ4#,HJ47..3F,4F

 2
Common parts
90159-60047
90159-80187
90179-06070
90189-06010
91651-40612
93330-16012
93530-54010
93540-56020
