FJ40RV-KJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

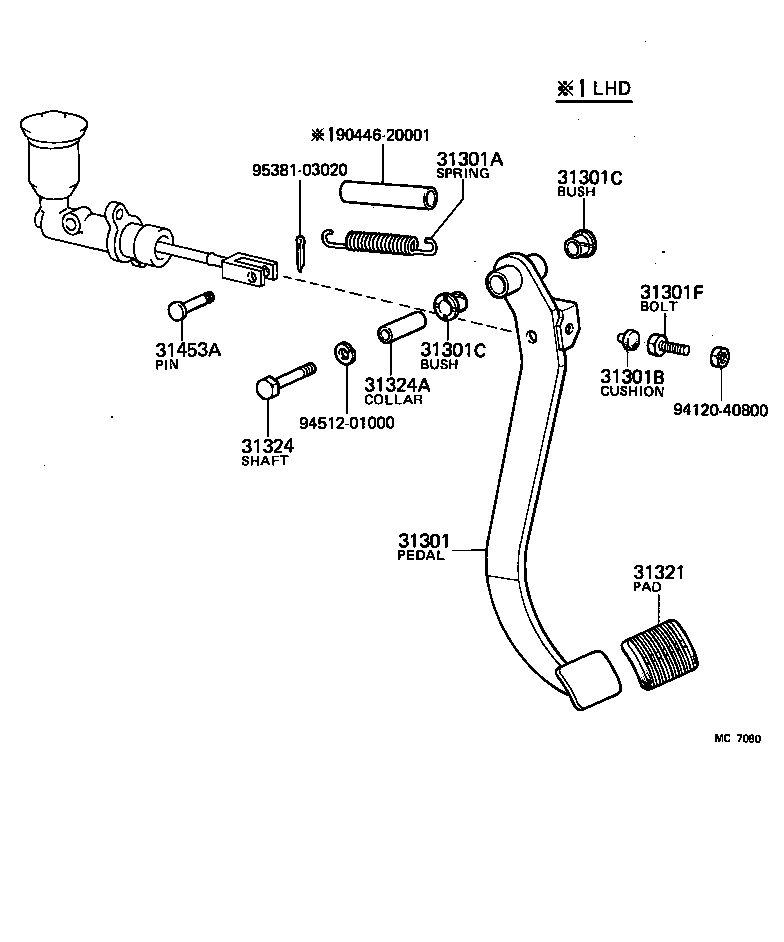

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 9044620001 9412040800 9451201000 9538103020
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60063

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12450

BJ4#,FJ4#,HJ47

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ4#,FJ4#,HJ47

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BJ4#,FJ4#,HJ47

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BJ4#,FJ4#,HJ47

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

BJ4#,FJ4#,HJ47

 1
31321 - PAD, CLUTCH PEDAL
31321-36010

BJ4#,FJ4#,HJ47

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BJ4#,FJ4#,HJ47

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BJ4#,FJ4#,HJ47

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-10048

BJ4#,FJ4#,HJ47

 1
Common parts
90446-20001
94120-40800
94512-01000
95381-03020

(8008-8506)RHD

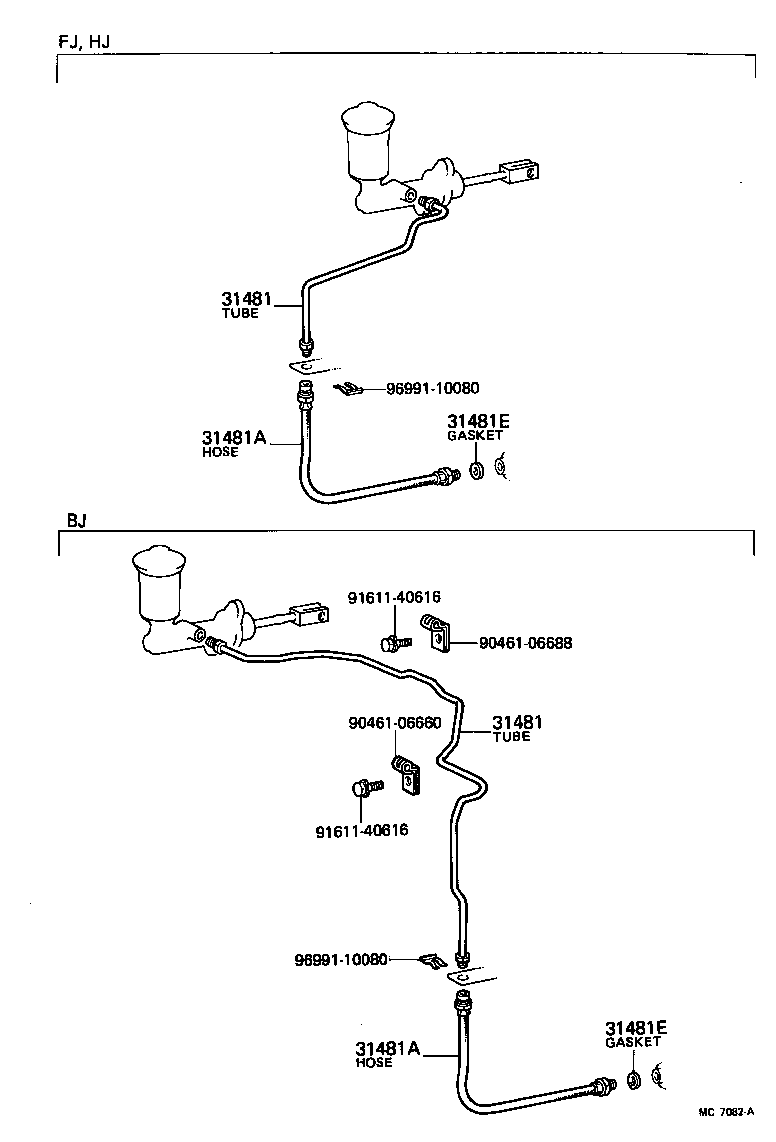

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31481E 31481E 9046106660 9046106688 9161140616 9161140616 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60191

FJ4#..RHD;FJ40..TPC..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60191

FJ4#..RHD;FJ40..TPC..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02230

BJ4#;FJ4#..RHD;FJ40..TPC..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02230

BJ4#;FJ4#..RHD;FJ40..TPC..5F

 1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074

BJ4#,FJ4#,HJ47

 1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074

BJ4#,FJ4#,HJ47

 1
Common parts
90461-06660
90461-06688
91611-40616
96991-10080
