FJ40RV-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
Common parts
90041-19257
90119-10278
91611-61028

(7509-8007)2F

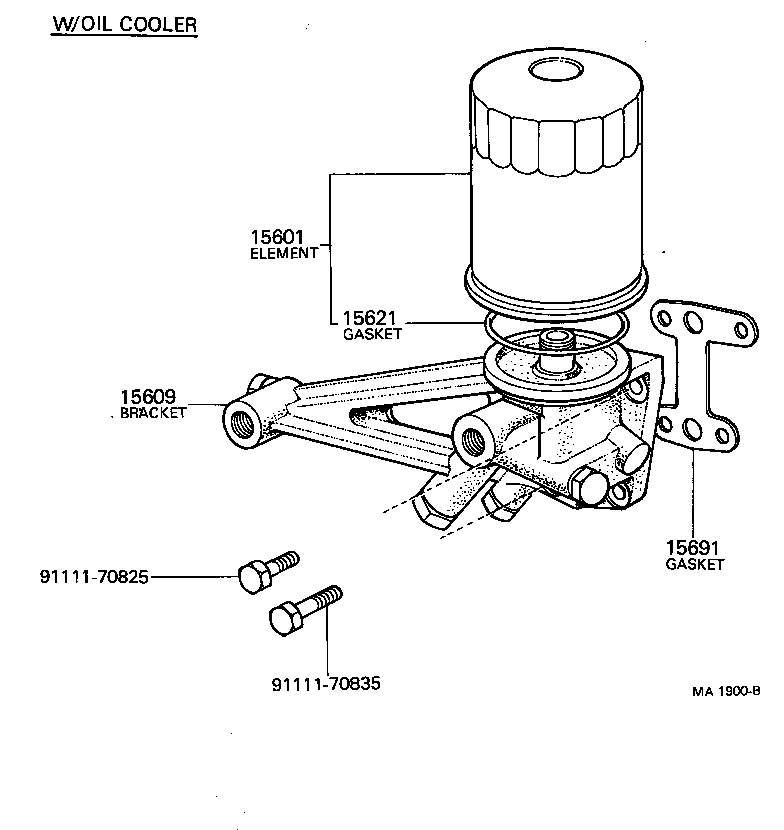

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9111170825 9111170835
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

F,2F..FJ4#,55

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61010

2F..FJ4#,55

W/OIL COOLER

 1
15609-61010

2F..FJ4#,55..ARL,GEN

W/OIL COOLER

 1
15609-60010

F..FJ4#,55

 1
15609-61020

2F..FJ4#,55

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

F,2F..FJ4#,55

 1
Common parts
91111-70825
91111-70835
