FJ40RV-KCJ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

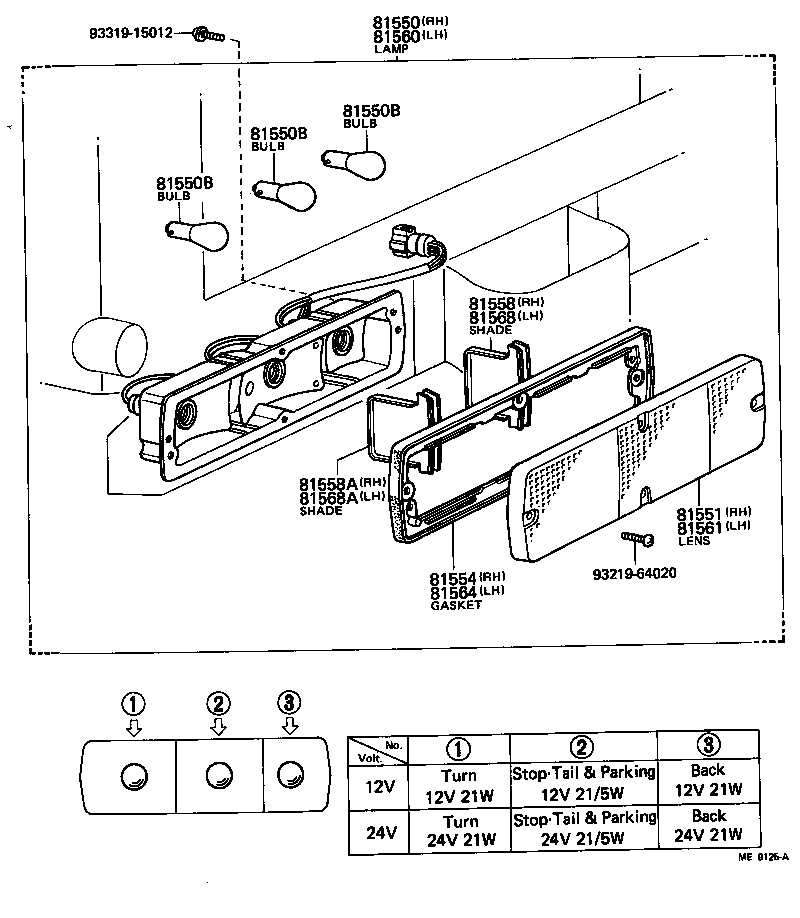

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-60232 |
FJ4#..EUR,GEN 12V,AMBER-RED-CLEAR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21/5W,12V 21/5W |
2 | ||
| 99132-11210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21W,12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21/5W,12V 21/5W |
2 | ||
| 99132-11210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21W,12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21/5W,12V 21/5W |
2 | ||
| 99132-11210 |
FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V 21W,12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26040 |
BJ4#,FJ4#,HJ47 AMBER-RED-CLEAR |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81557-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-60152 |
FJ4#..EUR,GEN 12V,AMBER-RED-CLEAR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-26040 |
BJ4#,FJ4#,HJ47 AMBER-RED-CLEAR |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81557-26040 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 93219-64020 | ||||
| 93319-15012 | ||||
